Product Description

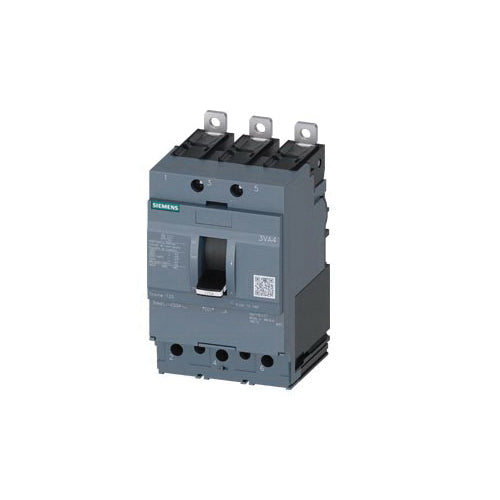

The Siemens 3VA4145-4ED34-0AA0 is a molded case circuit breaker designed for low voltage applications. It features a thermal-magnetic trip unit and has a current rating of 45 Amps with three poles. This model is built to handle up to 14 kiloamperes of interrupt current at six hundred volts and twenty-five kiloamperes at four hundred eighty volts. It is part of the 3VA41 series and includes lugs installed only on the load side. The overall dimensions are three inches in width, five point five inches in height, and three point seven inches in depth.
- Three-pole thermal-magnetic circuit breaker
- Rated current of 45 Amps
- IP40 enclosure type for protection
Product Highlights
This breaker provides reliable overload and short-circuit protection for various electrical distributions.
Product Information
Standard Information
-
Brand: Siemens
-
MPN: 3VA4145-4ED34-0AA0
Technical Specifications
-
Amperage Rating: 45 A
-
Connection Type: Aluminum Wire/Load End/Lug
-
Dimensions: 5.5 in H x 3 in W x 3.7 in D
-
Enclosure Type: IP40
-
Frame: 125/150 A
-
Frequency Rating: 50/60 Hz
-
Interrupt Rating: 14 kA, 25 kA, 65 kA
-
Number of Poles: 3
-
Series: 3VA41
-
Temperature Rating: -25 to 70 deg C
-
Trip Range: 45 to 450 A
-
Trip Type: TM210 Thermal Magnetic
-
Type: Class S Standard Low Voltage
-
Wire Size: 8 to 3/0 AWG
