Siemens 3VA4140-5ED34-0AA0 Brkr 3VA41 3 40 A (3P) ED43B040

SIEMENS
Brand: SIEMENS
SKU: 3VA4140-5ED34-0AA0
Availability: Out Of Stock
$911.54
$911.54
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

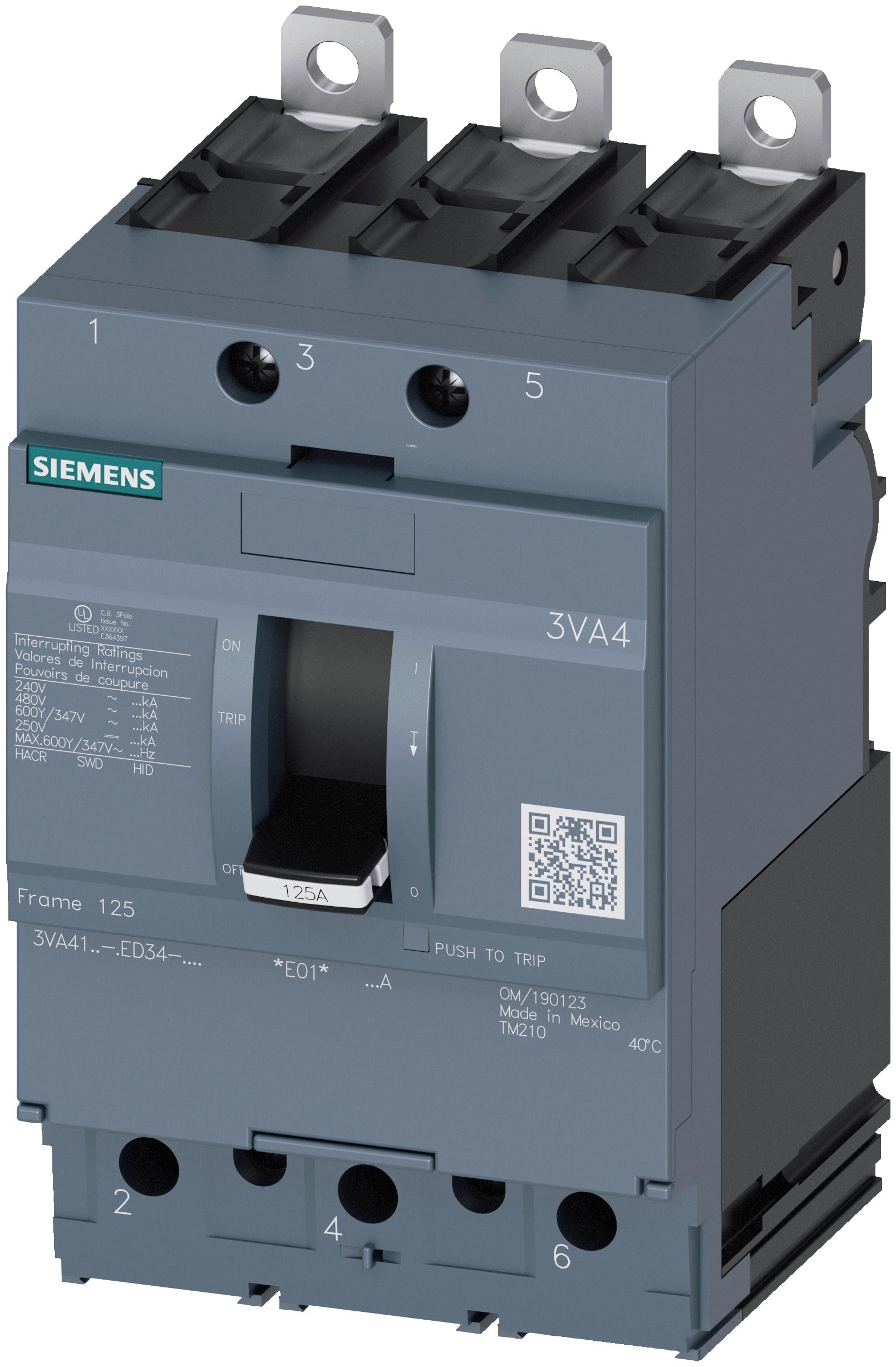

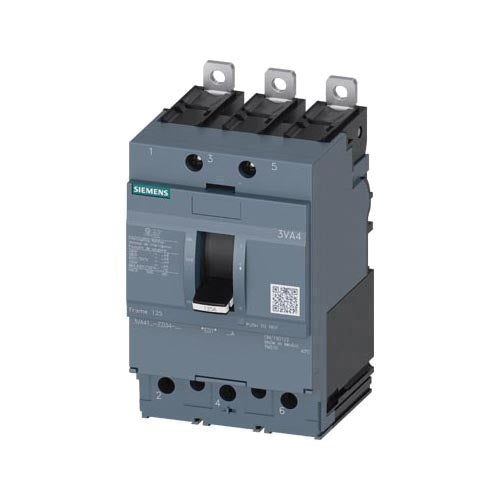

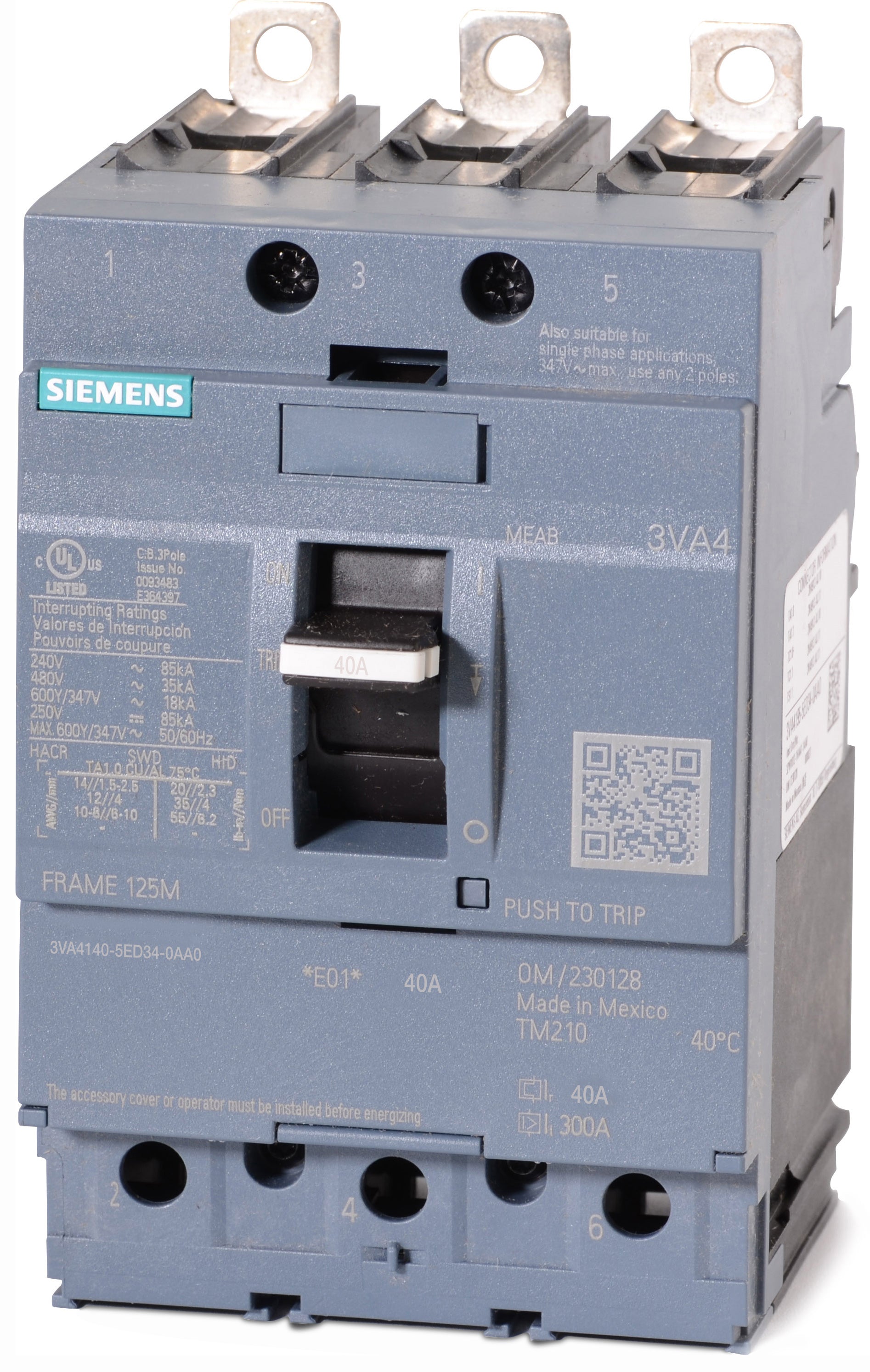

Siemens 3VA4140-5ED34-0AA0 is a 3VA4 series molded case circuit breaker with a TM210 thermal-magnetic trip unit. It is a 3-pole device rated 40 A with a 35 kA interrupting rating at 480 V and FTFM functionality. The breaker is panel-mountable for Siemens P1/P2/P3 boards, includes load-side lugs, and provides thermal-magnetic protection for overload and short-circuit conditions.

  • 3-pole molded case circuit breaker, 40 A rated current with TM210 thermal-magnetic trip.
  • Interrupting capacity 35 kA at 480 V (AIC) with FTFM line protection functionality.
  • Panel-mount design with load-side lugs; compatible with Siemens P1, P2, P3 panelboards.

Product Highlights

3-pole 40 A molded case breaker with TM210 thermal-magnetic trip, 35 kA interrupting rating at 480 V, panel-mount with load-side lugs.

Product Information

Standard Information

  • Brand: SIEMENS
  • Manufacturer Part Number: 3VA4140-5ED34-0AA0
  • Country of Origin: Mexico
Technical Specifications
Brand
Siemens
MPN
3VA4140-5ED34-0AA0
Series
3VA4
Frame
3VA41 (125 A)
Number of Poles
3
Amperage
40 A
Trip Unit
TM210 thermal-magnetic
Trip Type
Thermal Magnetic
Interrupting Rating
35 kA @ 480 V
AIC Rating
85 kA @ 240 VAC; 35 kA @ 480 Y/277 VAC; 35 kA @ 480 VAC; 18 kA @ 600 Y/347 VAC; 85 kA @ 250 VDC
Voltage Rating
240 VAC, 480 Y/277 VAC, 480 VAC, 600 Y/347 VAC, 250 VDC
Frequency
50/60 Hz
Functions
FTFM; Long-Time and Instantaneous (LI)
Mounting Type
Panel Mount
Terminal Type
Lugs (load-side lugs included)
Enclosure Rating
IP40
Operating Temperature
-25 to 70 C
Dimensions
3 in W x 3 in D x 5.1 in H
Weight
1.63 lbs
Approvals
CE, CSA, EAC, NOM, RCM, UL, VDE, IEC 60947-2, UL 489
Ratings
HACR rated; HID rated
For Use With
Siemens P1, P2, P3 panelboards, switchboards
Available Options
Shunt trip, Auxiliary switch, Undervoltage release, Alarm switch, Padlock attachment (optional)
