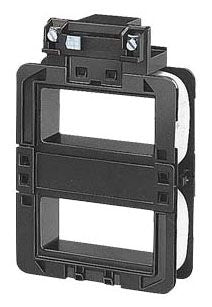

Siemens 3TY7483-0AP6 Ac Operated Contactor Coil

Product Description

The SIEMENS 3TY7483-0AP6 is an AC operated replacement coil designed for use in Siemens contactor assemblies. The coil generates the electromagnetic field that pulls in the contactor armature, closing the power circuit to the connected load. It is a direct replacement component installed when the original coil fails due to burnout, insulation breakdown, or mechanical damage. Licensed electricians and industrial maintenance technicians are the primary installers. The compact form factor and standard mounting interface make it a straightforward swap within the existing contactor frame.

This coil is suited for industrial and commercial electrical control applications where Siemens contactors are used to switch motor loads, heating elements, lighting circuits, and other electrical equipment. It is designed for panel-mounted contactor assemblies in motor control centers, switchgear enclosures, and industrial control panels. The AC operated design means it draws from an alternating current control circuit, which is the standard configuration in most commercial and industrial facilities.

Key Features

• AC operated coil for electromagnetic contactor actuation
• Direct replacement design fits existing Siemens contactor frame without modification
• Compact dimensions allow installation in space-constrained panel enclosures
• Lightweight construction at 0.411 pounds

Compatibility

Designed as an OEM-style replacement coil for Siemens contactor assemblies requiring the 3TY7483-0AP6 coil component.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (NEC) requirements. De-energize and lock out the contactor panel before removing the old coil or handling any components. Verify that the replacement coil voltage rating matches the control circuit voltage before energizing. Ensure the coil is fully seated and secured in the contactor frame before returning the panel to service.

Technical Specifications

• Coil Operation: AC Operated
• Length: 4.606 inches
• Width: 2.677 inches
• Height: 1.496 inches
• Weight: 0.411 pounds
• UPC: 75455420657

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3TY7483-0AP6
