Siemens 3TX7131-4CH13 ENCL PWR RELAY, D

Product Description

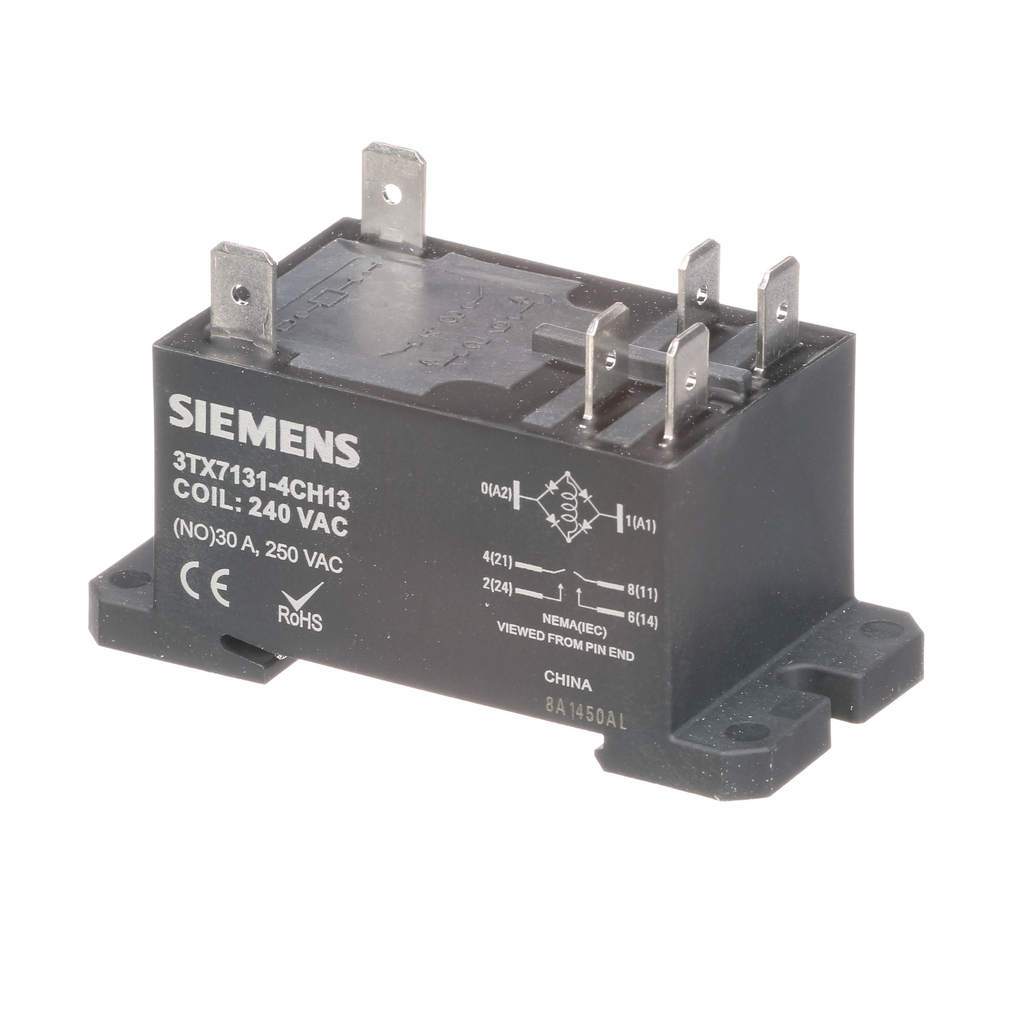

The Siemens 3TX7131-4CH13 is an industrial power relay designed for heavy-duty applications. It features a double pole, single throw (DPST-NO) contact configuration. With a current rating of thirty Amps and a voltage rating of six hundred Volts, this relay is ideal for high-load operations. The relay is compact and can be mounted on a DIN rail or directly on panels.

• Heavy-duty relay suitable for industrial use
• 30 Amp current rating for demanding tasks
• Compatible with 240 Volt AC systems

Product Highlights

This relay is built for efficient control in various industrial applications, ensuring safe and reliable performance even in extreme conditions.

Product Information

Standard Information

• Brand: Siemens Industrial Controls
• Product Number: 3TX7131-4CH13

Technical Specifications

• Width: 2.3 inches
• Height: 1.6 inches
• Length: 2.7 inches
• Voltage: 600 Volts
• Amperage: 30 Amps
• Contact Material: Silver Alloy
• Temperature Rating: -40 to 55 degrees Celsius
• Country of Origin: China
