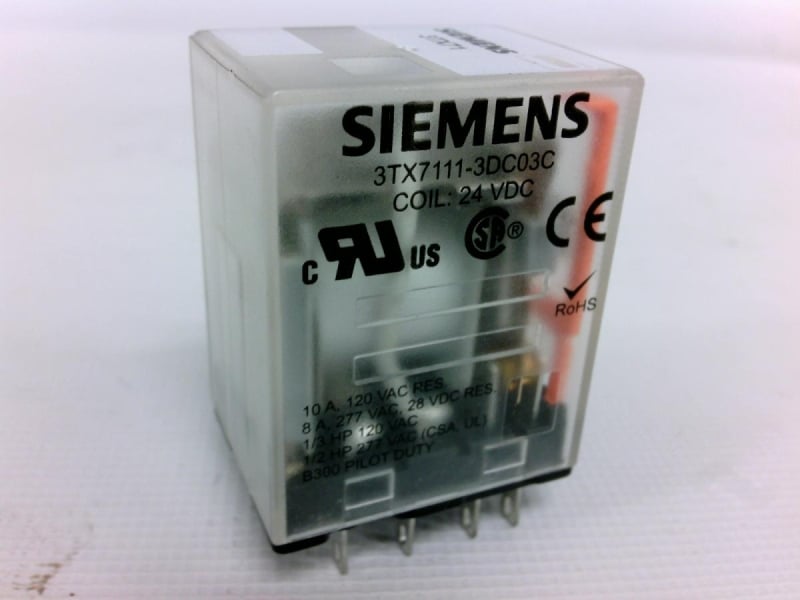

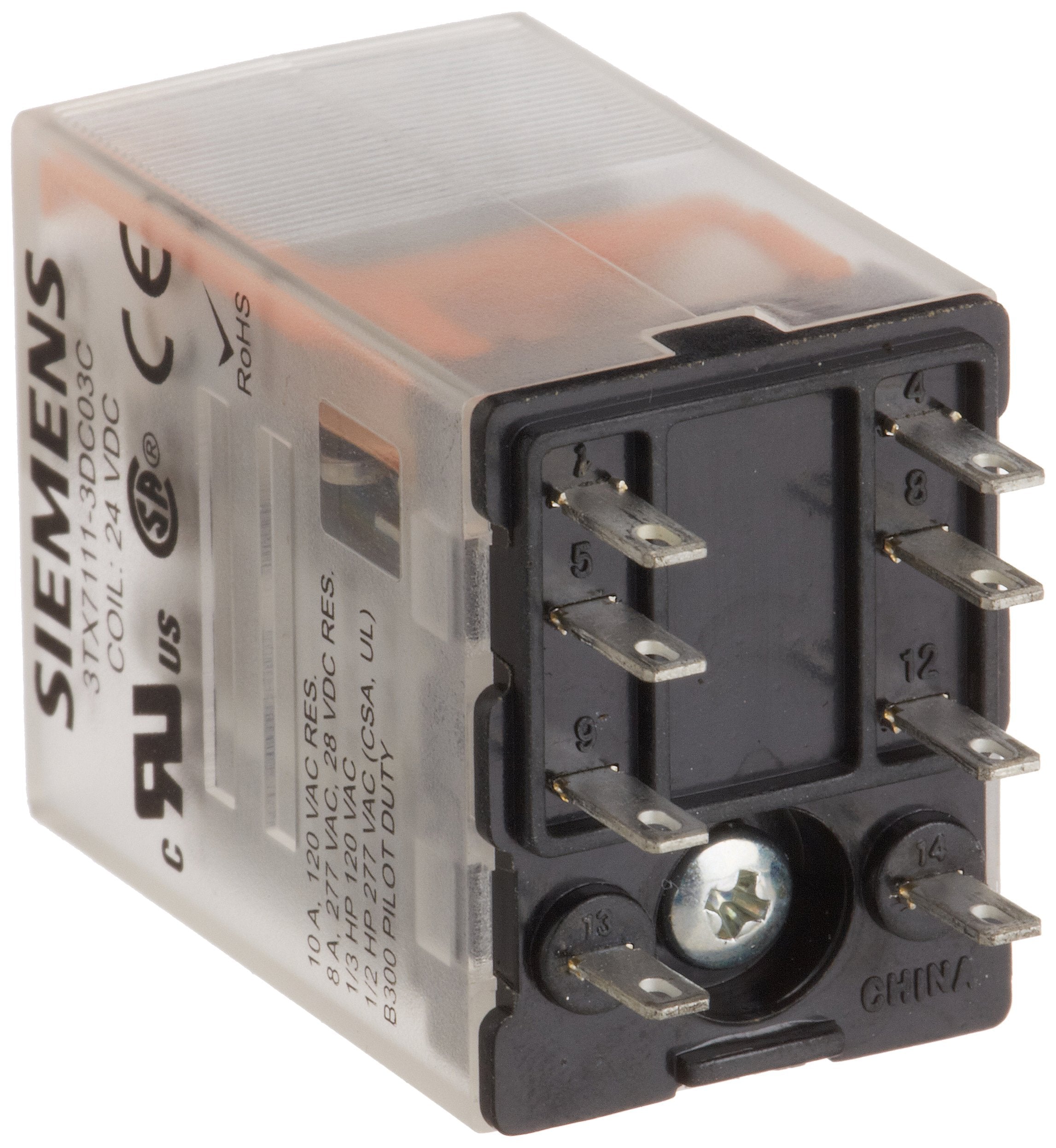

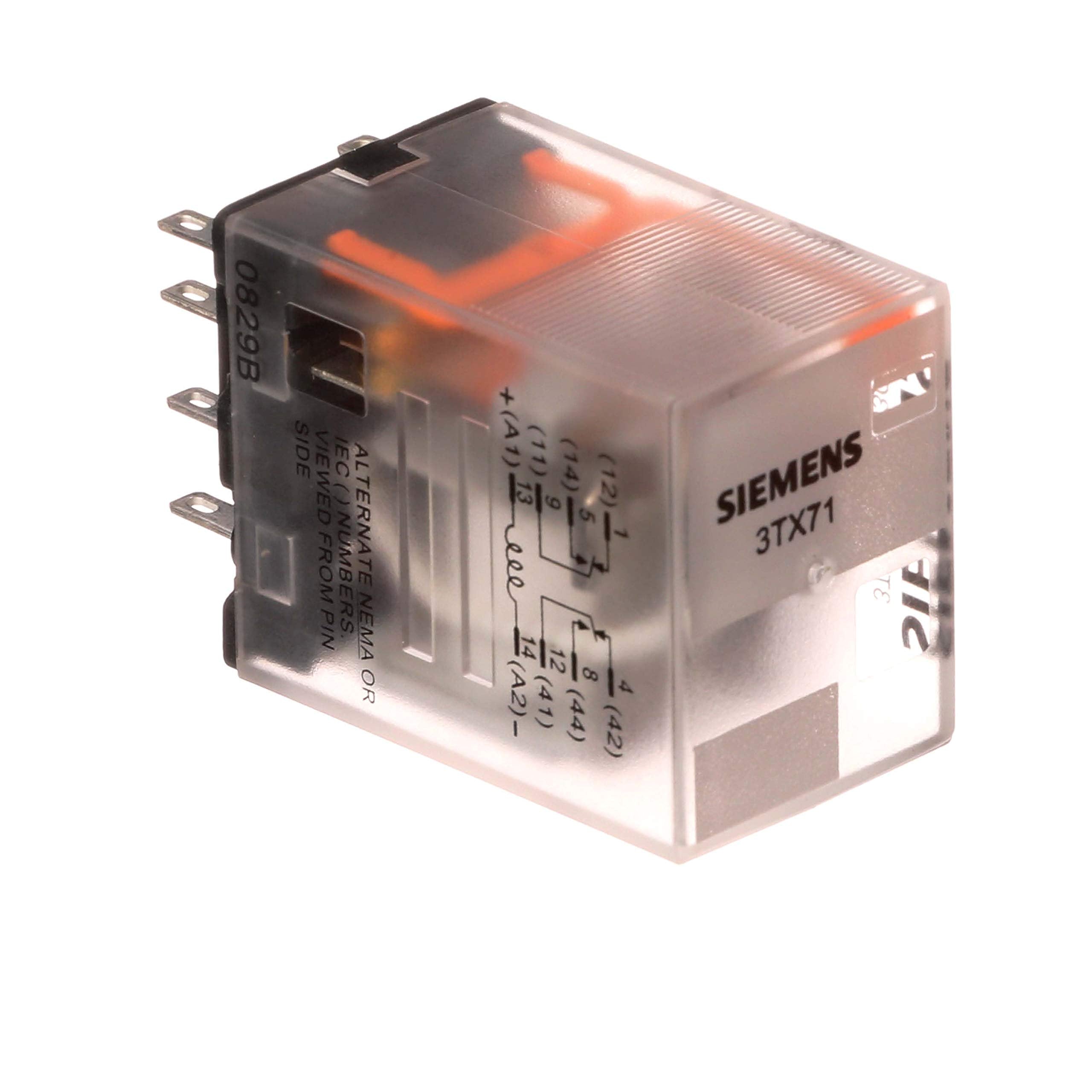

Siemens 3TX7111-3DC03C Basic Plug In Relay DPDT 24VDC

Product Description

The Siemens 3TX7111-3DC03C basic style plug-in relay is an economical solution for industrial needs, equipped with a mechanical flag indicator. This relay features DPDT contacts and a 24VDC coil voltage. It is suitable for various applications requiring reliable switching. The relay offers a degree of protection IP40 and shock resistance of 10gn.

• Features DPDT contacts
• Operates on a 24VDC coil voltage
• Equipped with a mechanical flag indicator

Product Highlights

This Siemens plug-in relay provides reliable switching with its DPDT contacts and 24VDC coil, suitable for diverse industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3TX7111-3DC03C
• Country of Origin: China

Technical Specifications

• Item: Plug-In Relay
• Series: 3TX71 Series
• Coil Voltage: 24V DC
• Features: Degree of Protection IP40, Shock Resistance 10gn
• IP Rating: IP40
• Standards: UL Listed
• Contact Form: DPDT
• Input Voltage: 24V DC
• Current Rating: 12 A
• Mounting Style: Plug-In
• Number of Pins: 8
• Contact Material: Silver Alloy
• Coil Voltage Type: DC
• Power Consumption: 0.9 W, 1.2 VA
• Contact Rating (AC): 12 A @ 120V
• Contact Rating (DC): 12 A @ 28V
• Relay Mounting Style: Socket
• Resistance Properties: Shock-Resistant
• AC Contact Rating - Relay: 12A @ 120V
• DC Contact Rating - Relay: 12A @ 28V
• Power Consumption - Relay: 0.9 W, 1.2 VA
• Part #: 3TX7111-3DC03C
• Category: Relay/Socket
• HP @ 120V: 1/3 hp
• HP @ 240V: Not Rated
• Motor Rated: Yes
• Push To Test: No
• Status Indicator: None
• Push-To-Test Button: No Test Button
• Push-To-Test Method: No Button
