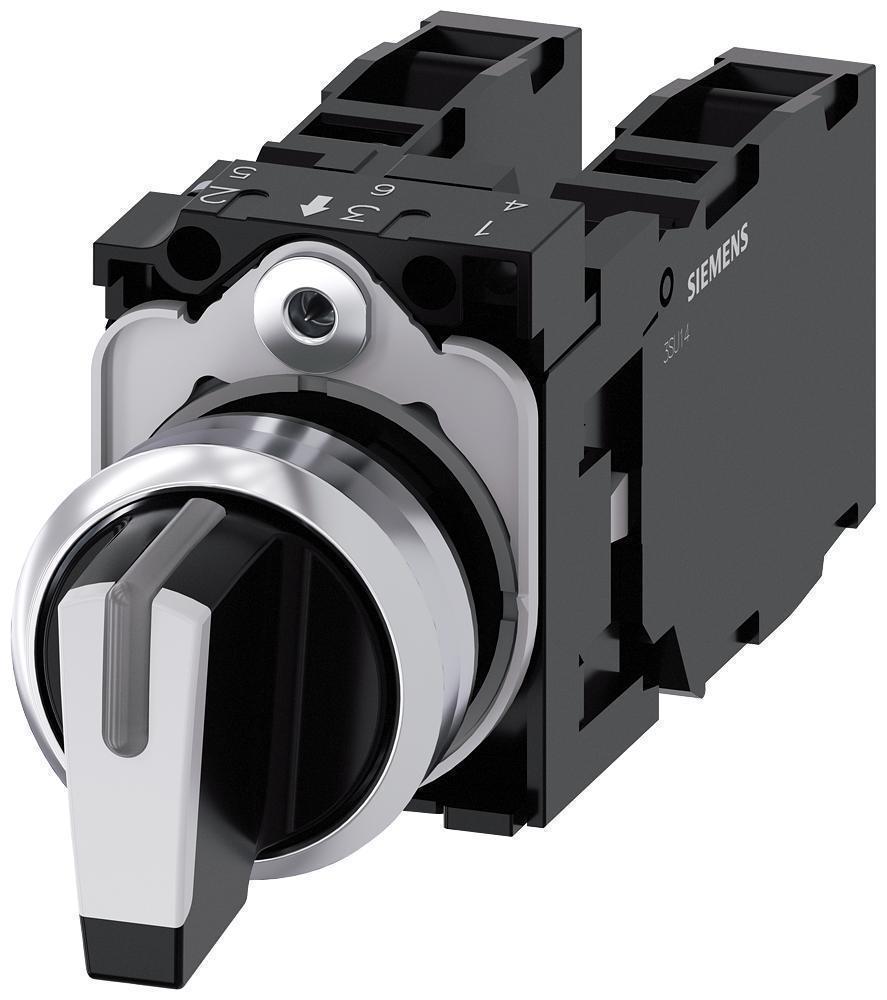

Siemens 3SU11502BL601LA0 Selector Switch 3 Position 4PST 10A 500V

Product Description

The SIEMENS 3SU11502BL601LA0 is a selector switch with 3 positions, 4PST-2NO/2NC, and a current rating of 10A (AC/DC). It is designed for panel mounting. The selector switch is non-illuminated and features a screw terminal for termination. It is suitable for use in various applications requiring a reliable and durable switch.

• Panel mount
• Operating temperature of -25 0C ~ 70 0C
• IP66/IP67/IP69K Ingress Protection

Product Highlights

The SIEMENS 3SU11502BL601LA0 selector switch offers a robust design with high ingress protection, ideal for demanding environments.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11502BL601LA0
• Country of Origin: DE

Technical Specifications

• Category: Switches
• Selector Switches: Selector Switches
• Illumination: Non-Illuminated
• Manufacturer: Siemens
• Mounting Type: Panel Mount
• Series: 3SU1
• Termination Style: Screw Terminal
• Panel Cutout Dimensions: Circular - 22.30mm Dia
• Part Status: Active
• Ingress Protection: IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof
• Type: Standard
• Operating Temperature: -25 0C ~ 70 0C
• Circuit: 4PST-2NO/2NC
• Depth Behind Flange: 71.70mm
• Number of Positions: 3
• Mechanical Life: 1,000,000 Cycles
• Switch Function: On-Off, Off-On
• Electrical Life: 10,000,000 Cycles
• Current Rating (Amps): 10A (AC/DC)
• Approval Agency: CCC, CE, CSA, EAC, UL
• Voltage Rating - AC: 500 V
• Base Product Number: 3SU1150
• Voltage Rating - DC: 500 V
• Bezel/Housing: Metal
• Contact Configuration: 2NO-2NC
• Enclosure Type: NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K
• Environmental Conditions: -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature, 10 to 95% Relative Humidity
• Finish: High Gloss/Shiny
• Operator Type: Short Lever
• Size: 22 mm
• Terminal Type: Screw
• Throw: 2 x 45 deg
• Country of origin: DE
• Material: Metal/Plastic
• Mounting type: Surface
• Manufacturer Name: Siemens
• UNSPSC: 39122216
• Brand: Siemens
