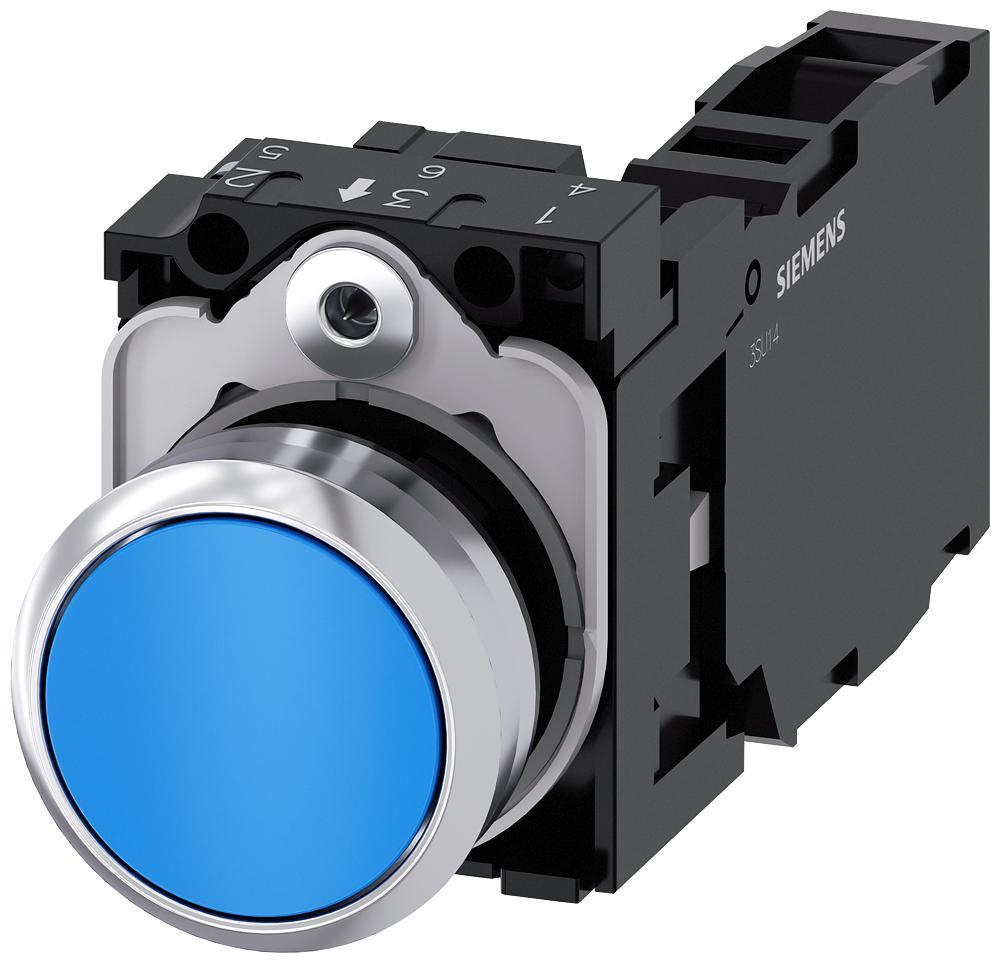

Siemens 3SU11500AB501FA0 Pushbutton Blue

Product Description

The SIEMENS 3SU11500AB501FA0 is a DPST-NO/NC pushbutton switch designed for standard panel mounting on the front. This momentary contact type pushbutton features a round, flat, blue button and screw terminals. It is suitable for various applications requiring a durable and reliable switch.

• DPST-NO/NC Circuit
• Panel Mount, Front
• IP66/IP67/IP69K Ingress Protection

Product Highlights

This Siemens pushbutton is ideal for applications needing robust and waterproof switching, with a long mechanical and electrical life of 10,000,000 cycles.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11500AB501FA0

Technical Specifications

• Category: Switches
• Pushbutton Switches: Pushbutton Switches
• Mfr: Siemens
• Series: 3SU
• Part Status: Active
• Mounting Type: Panel Mount, Front
• Type: Standard
• Circuit: DPST-NO/NC
• Switch Function: On-Mom, Off-Mom
• Current Rating (Amps): 10A (AC/DC)
• Voltage Rating - AC: 500 V
• Voltage Rating - DC: 500 V
• Actuator Type: Round, Button
• Color - Actuator/Cap: Blue
• Termination Style: Screw Terminal
• Ingress Protection: IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof
• Panel Cutout Dimensions: Circular - 22.30mm Dia
• Operating Temperature: -25°C ~ 70°C
• Mechanical Life: 10,000,000 Cycles
• Electrical Life: 10,000,000 Cycles
• Base Product Number: 3SU1150
• Brand: SIEMENS
• Manufacturer Part Number: 3SU11500AB501FA0
• Size: 22 mm
• Contact Configuration: 1NC-1NO
• Contact Mode: Momentary
• Operator: Flat Button
• Bezel/Housing: Metal
• Terminal: Screw Terminal
• Enclosure: NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K/IP20
• Mounting: Front Mounting
• Material: Plastic
• Finish: Shiny
• Storage Temperature: -40 to 80 deg C
