Siemens 3SU11500AB201CA0 Pushbutton Unit 22 mm 1NC

Product Description

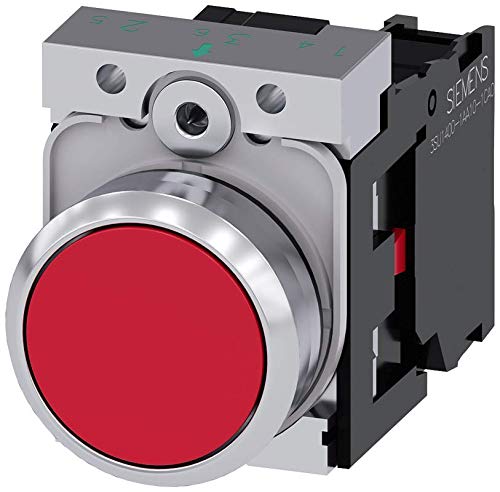

The SIEMENS 3SU11500AB201CA0 is a 22mm pushbutton unit with a round, metal, shiny, red, flush button. It features momentary contact, a holder, and 1NC with screw terminals. Ideal for standard panel mount, front applications. The switch offers SPST-NC circuit and is designed for durability and ease of use.

• Modern product design using genuine metal and/or high-quality plastic
• Quick and easy installation; innovative Snap-On concept can be done with one hand and without any special tools
• Full twist protection; can be mounted into groove-free holes (notching not required)

Product Highlights

The SIEMENS 3SU11500AB201CA0 is a durable and easy-to-install pushbutton unit suitable for various industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11500AB201CA0
• Country of Origin: Germany

Technical Specifications

• Brand: SIEMENS
• Size: 22mm
• Category: Switches
• Type: Standard
• Series: 3SU1
• Part Status: Active
• Mounting Type: Panel Mount, Front
• Actuator Type: Flush
• Actuator Marking: No Marking
• Color - Actuator/Cap: Red
• Switch Function: On-Mom
• Circuit: SPST-NC
• Termination Style: Screw Terminal
• Panel Cutout Dimensions: Circular - 22.30mm Dia
• Voltage Rating - AC: 500 V
• Voltage Rating - DC: 500 V
• Current Rating (Amps): 10A (AC/DC)
• Operating Temperature: -25 0 B0C ~ 70 0 B0C
• Ingress Protection: IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof
• Mechanical Life: 10,000,000 Cycles
• Electrical Life: 10,000,000 Cycles
• Base Product Number: 3SU1150
• UNSPSC Code: 39120000
• Actuator Color: Red
• Current Rating: 10 A
• Manufacturer Part Number: 3SU11500AB201CA0
• Operation: Momentary
• Termination: Screw terminal
• Voltage Rating: 500 V
• Overview: SIRIUS ACT
• Connection Type: Screw-Type Terminals
• Number of Poles: 1 Pole
• Operating Cycles: 10000000
• Button Color: Red
• Product UPC: 80476607195
• Contact Form: 1 NC
• Hole Diameter: 22.3 mm
