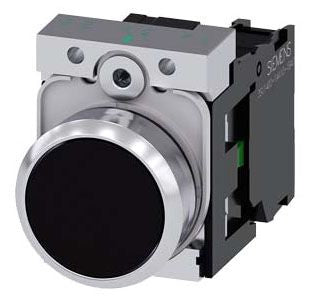

Siemens 3SU11500AB101BA0 Pushbutton

Product Description

The SIEMENS 3SU11500AB101BA0 is a pushbutton operator used in industrial control panel and machine control applications. This component mounts in a standard control station or enclosure cutout and serves as the human-machine interface for starting, stopping, or signaling control circuits. At 0.214 pounds and compact dimensions of 3.15 inches by 2.362 inches by 0.984 inches, it is sized for panel-density applications where space is limited. Industrial electricians and control panel builders are the primary installers of this device.

This pushbutton is suited for industrial and commercial automation environments, including machine tool panels, process control stations, motor control centers, and general-purpose operator interface assemblies. It is designed for low-voltage control circuit use and fits installations where a reliable, compact operator element is required. The 3SU11500AB101BA0 ships one unit per pack.

Key Features

• Compact form factor at 3.15 inches x 2.362 inches x 0.984 inches for panel-dense layouts
• Lightweight construction at 0.214 pounds
• Single unit per pack for straightforward inventory management
• Designed for industrial control panel and machine operator station use

Compatibility

Designed as an OEM-style replacement or new-install pushbutton operator for industrial control panels and operator stations using standard 22 mm or compatible cutout mounting formats. No specific model compatibility data was provided in the input.

Installation Notes

Installation should be performed by a licensed electrician or qualified control panel technician in accordance with NFPA 70 (NEC) and applicable local codes. De-energize and lock out the control panel before installing or replacing any operator element. Verify that the mounting cutout dimensions match the device footprint before securing the unit. Do not overtighten the mounting hardware, as this may crack the operator body or damage the seal.

Technical Specifications

• Weight: 0.214 pounds
• Length: 3.15 inches
• Width: 2.362 inches
• Height: 0.984 inches
• Quantity per Pack: 1
• UPC: 80476607190

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11500AB101BA0
