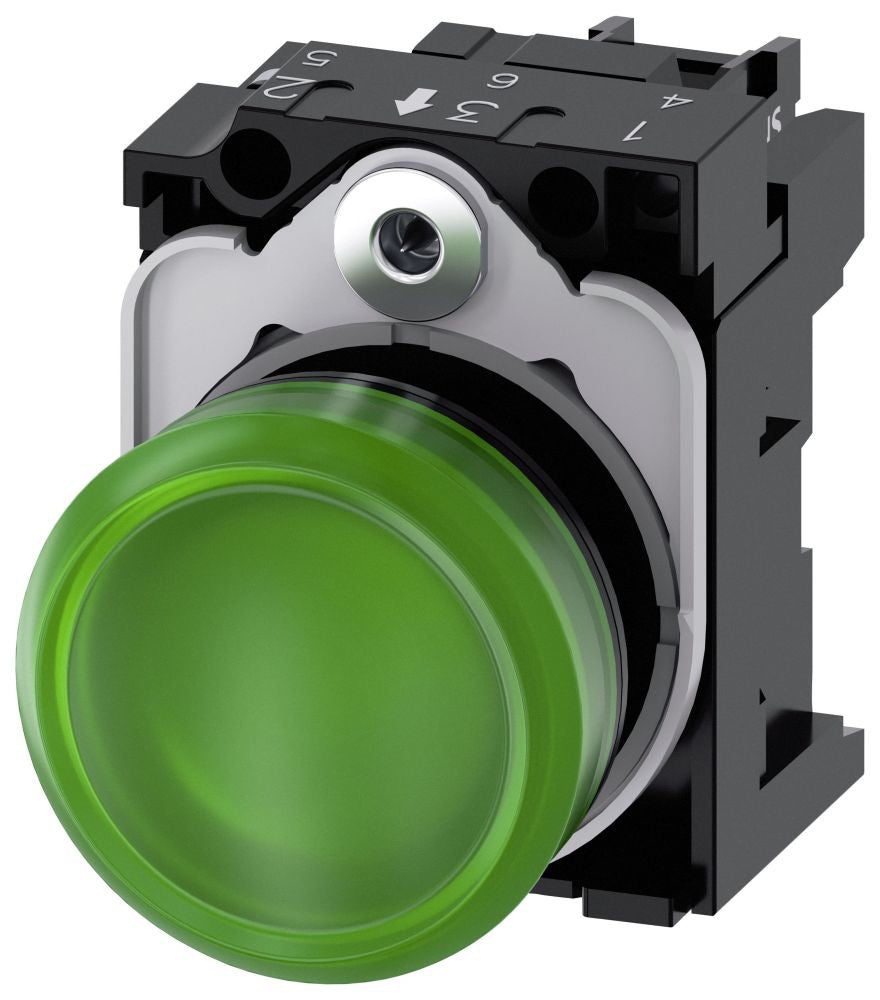

Siemens 3SU11036AA401AA0 Indicator Light

Product Description

The SIEMENS 3SU11036AA401AA0 is a panel-mount indicator light designed for use in industrial control panels and machine operator interfaces. It provides a clear visual status signal for equipment operating states such as power-on, fault, or run conditions. Electricians and controls technicians install this type of device on control panel doors or operator consoles as part of a larger pushbutton and indicator assembly. At 0.097 pounds and a compact footprint of 2.362 inches by 1.575 inches by 1.575 inches, it fits into standard cutout configurations without requiring significant panel real estate.

This indicator is suited for residential and commercial control panel builds, OEM machine wiring, and industrial equipment retrofits. It is typically installed by licensed electricians or automation technicians working on motor control centers, relay panels, and PLC-driven equipment. The compact body and standard form factor make it a practical choice for panel builders working within tight enclosure layouts where consistent indicator sizing is required across multiple positions.

Key Features

• Compact panel-mount form factor at 2.362 x 1.575 x 1.575 inches
• Lightweight construction at 0.097 pounds for easy panel integration
• Standard indicator body compatible with modular pushbutton and pilot device assemblies
• Single unit per pack for precise quantity ordering on panel builds

Compatibility

Designed as an OEM-style replacement or new-installation indicator for industrial control panels and operator interface stations using standard 22mm pilot device form factors.

Installation Notes

Installation is performed by a licensed electrician or qualified controls technician. De-energize and lock out the control panel in accordance with NFPA 70E lockout/tagout procedures before mounting or wiring the indicator. Verify the panel cutout size matches the device body dimensions before installation. Follow applicable NEC requirements for control circuit wiring and enclosure ratings.

Technical Specifications

• Weight: 0.097 pounds
• Length: 2.362 inches
• Width: 1.575 inches
• Height: 1.575 inches
• Package Quantity: 1 per pack
• UPC: 80476607093

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11036AA401AA0
