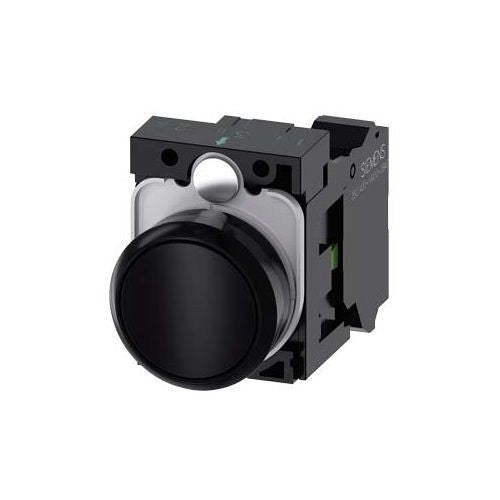

Siemens 3SU11000AB103BA0 Pushbutton, Momentary, Black, Flush

Product Description

The SIEMENS 3SU11000AB103BA0 is a Sirius Act pushbutton, part of a modular system of pushbuttons and indicator lights designed for front plate mounting. This momentary, black, flush button is ideal for marine applications and other demanding environments. It features a 1NO contact configuration and spring terminals.

• Self-holding function of the actuator when mounting
• Twist prevention integrated into patented holder design
• Stackable contact modules

Product Highlights

The SIEMENS 3SU11000AB103BA0 offers a combination of style, intelligence, and physical toughness for powerful machines.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU11000AB103BA0
• Country of Origin: Germany

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Manufacturer Part Number: 3SU11000AB103BA0
• Series: 3SU1 Series
• Unit of Measure: EA
• UPC Code: 804766070167
• Material: Plastic
• Mounting Type: Front
• Operator Type: Flat/Flush Button
• Size: 22 mm
• Terminal Type: Spring
• Type: Round Non-Illuminated
• Standard & Approvals: CCC Compliant, CSA Certified, EAC Compliant, IEC/EN 60947-1, IEC/EN 60947-5-1, UL Listed
• Application: Marine Applications
• Bezel/Housing: Plastic
• Color: Black
• Contact Configuration: 1NO
• Contact Mode: Momentary
• EANUCC13: 4011209956711
• Enclosure Type: NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K/IP20
• Environmental Conditions: -25 to 70 deg C Operating/-40 to 80 deg C Storage
• NEMA: 1, 2, 3, 3R, 4, 4X, 12
• Operating Cap: Round Flat Button 29.45 mm
• Cap/Lens Color: Black
• Contacts: 1-NO
• Contact Rating: 10A/500VAC/DC
• Enclosure Rating: IP20, IP66, IP67, IP69, IP69K
• Country of Origin: Germany - Subject to change
