Siemens 3SU10522CF600AA0 Selector Switch O-I 22mm

Product Description

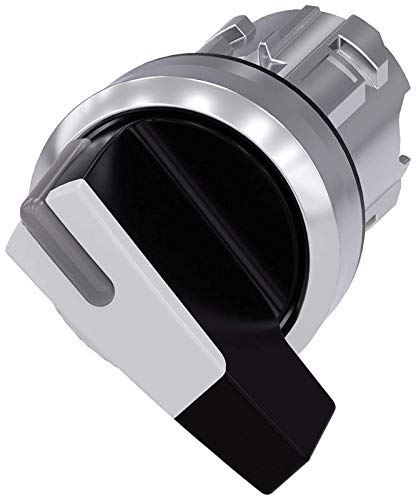

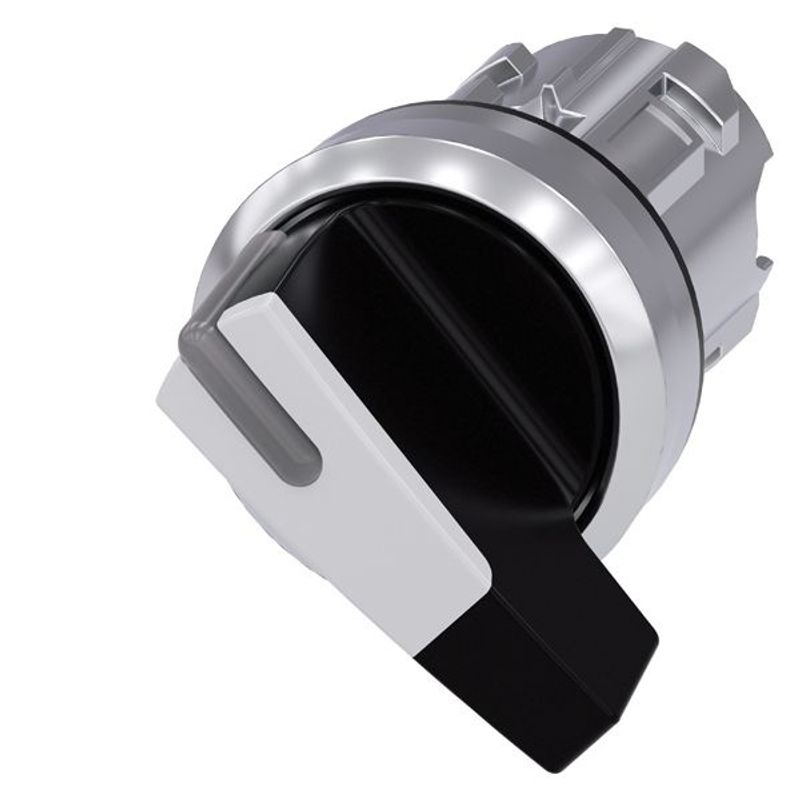

The SIEMENS 3SU10522CF600AA0 is a selector switch designed for pushbuttons and signaling devices. This 22mm round, metal selector switch features a shiny black and white finish and an extended selector handle. It has 2 switch positions (O-I) with a latching function and a 90-degree actuating angle, suitable for use in extreme environments.

• Modern design using metal and high-quality plastic
• Quick and easy one-hand installation
• IP66, IP67, IP69K protection rating

Product Highlights

The SIEMENS 3SU10522CF600AA0 selector switch offers durability and ease of installation for various industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU10522CF600AA0
• Country of Origin: Czechia

Technical Specifications

• Brand: SIEMENS
• Size: 22mm
• Protection Rating: IP66, IP67, IP69K
• MPN: 3SU10522CF600AA0
• Primary Type: Selector
• Series: 3SU1 Series
• Bezel/Housing: Metal
• Enclosure Type: NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K
• Environmental Conditions: -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature, 10 to 95% Relative Humidity
• Finish: Shiny
• Number of Positions: 2
• Operator Type: Long Lever
• Throw: 90 deg
• Type: Round
• Action: 90 Degree Maintained
• Operating Cycles: 1000000 Cycles
• Material: Metal
