Siemens 3SU10511HB200AA0 Emergency Stop Mushroom Pushbutton 40 mm

Product Description

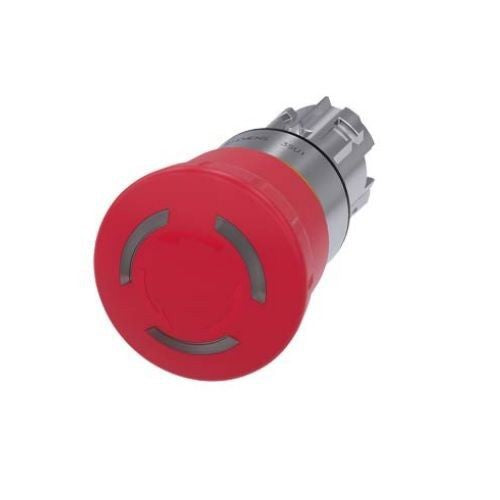

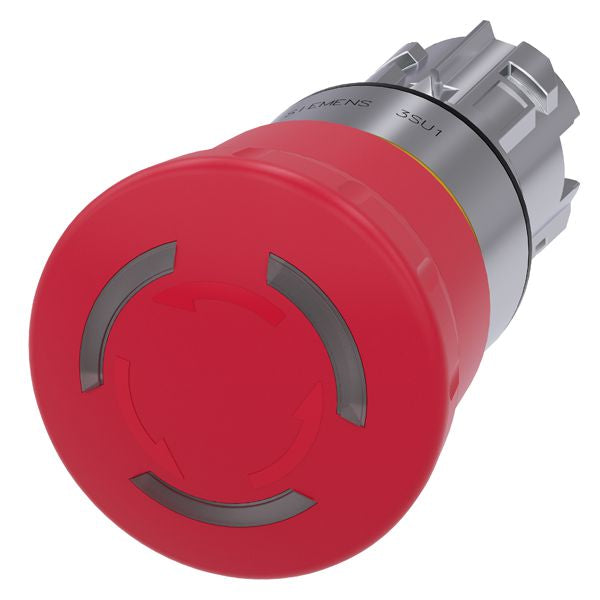

The Siemens 3SU10511HB200AA0 is an illuminable emergency stop mushroom pushbutton. This 22 mm, round, metal, shiny emergency stop pushbutton has a 40 mm diameter and positive latching according to EN ISO 13850 with rotate-to-unlatch functionality. It can be connected to the controller via PROFINET, AS-Interface or IO-Link.

• Illuminable
• Positive latching
• Rotate-to-unlatch

Product Highlights

This emergency stop pushbutton is ideal for controlling safety-related applications in industrial and outdoor environments.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU10511HB200AA0
• Country of Origin: Germany

Technical Specifications

• Number of Positions: 2
• Size: 22 mm, 40 mm
• Color: Red
• Type: 2 Position, Illuminable, Round
• Category: Switches, Configurable Switch Components, Configurable Switch Bodies
• Manufacturer: Siemens
• Illumination: Illuminated
• Series: 3SU1
• Actuator Type: E-Stop, Round
• Compatible Series: Siemens, 22mm
• Part Status: Active
• Panel Cutout Dimensions: 22.3mm (Round)
• Requires: Contact Block(s), Illumination Source
• Base Product Number: 3SU1051
• Bezel Material: Metal
• Temperature Rating: -25 to 70 degrees C
• Brand: Siemens
• Sub Brand: Pilot Devices
• Button Color: Red
• Actuator: Mushroom Head
• Alternate Catalog Number: 3SU1051-1HB20-0AA0
• Catalog Number: 3SU10511HB200AA0
• Contact Mode: Momentary/Positive Latching/Rotate-to-Unlatch
• Country of Origin: DE
• Enclosure Type: NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K
• Environmental Conditions: -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature, 10 to 95% Relative Air Humidity
• EU RoHS Indicator: C
• Finish: Shiny
• Legend: EMERGENCY STOP
• Material: Metal
• Operator Type: Mushroom Head
• Standard: ISO13850andIEC60947-5-5
• Standards: CSA CertifiedUL ListedEAC ApprovedCE CertifiedEN ISO 13850
• UNSPSC: 39121545
