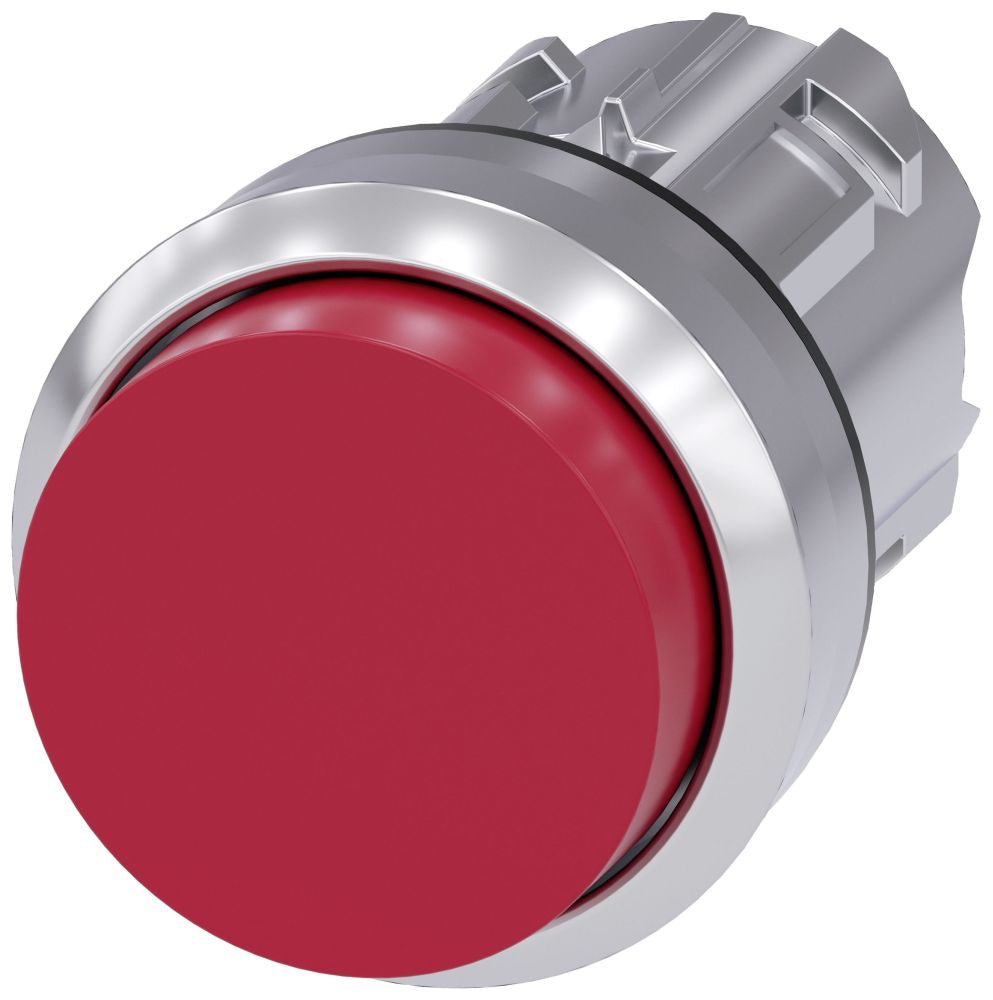

Siemens 3SU10500BB200AA0 Pushbutton

Product Description

The SIEMENS 3SU10500BB200AA0 is a momentary pushbutton designed for industrial control panel applications. Pushbuttons in this class serve as operator interface devices, translating a manual input into an electrical signal that triggers motor starters, relays, or programmable logic controllers. This unit fits into the SIEMENS 3SU1 modular pushbutton system, which separates the operator head from the contact block for flexible configuration. Electricians and industrial maintenance technicians are the primary installers. The assembly measures approximately 2.36 inches long by 1.57 inches wide by 1.57 inches tall and weighs approximately 0.079 pounds.

This pushbutton is suited for use in industrial control panels, machine tool enclosures, and automation equipment where a reliable operator-actuated switch is required. It is appropriate for both new panel builds and replacement of worn or failed operator devices in existing equipment. The 3SU1 platform allows field technicians to swap contact blocks without replacing the entire assembly, making this a practical choice for maintenance-driven installations in manufacturing and process control environments.

Key Features

• Part of the SIEMENS 3SU1 modular pushbutton platform for flexible contact block configuration
• Compact form factor at 2.36 inches x 1.57 inches x 1.57 inches suits standard control panel cutouts
• Lightweight construction at approximately 0.079 pounds minimizes panel door load
• Designed for momentary operator-actuated control signal input
• Compatible with industrial control circuits including motor starters, relays, and PLCs

Compatibility

Designed as an OEM-style replacement or new-build component within the SIEMENS 3SU1 modular pushbutton system. Consult the 3SU1 system documentation to confirm contact block and holder compatibility before ordering.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and the panel or machine manufacturer's wiring documentation. De-energize and lock out the control panel before removing or installing any operator device. Verify that the contact block rating matches the circuit voltage and current before energizing. Do not force the operator head into the mounting cutout; confirm cutout dimensions match the device specifications before installation.

Technical Specifications

• Dimensions (L x W x H): 2.36 inches x 1.57 inches x 1.57 inches
• Weight: 0.079 pounds
• UPC: 80476606698
• Pack Quantity: 1

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU10500BB200AA0
