Siemens 3SU10500AA100AA0 Sirius Act Operator Pushbutton (22mm)

Product Description

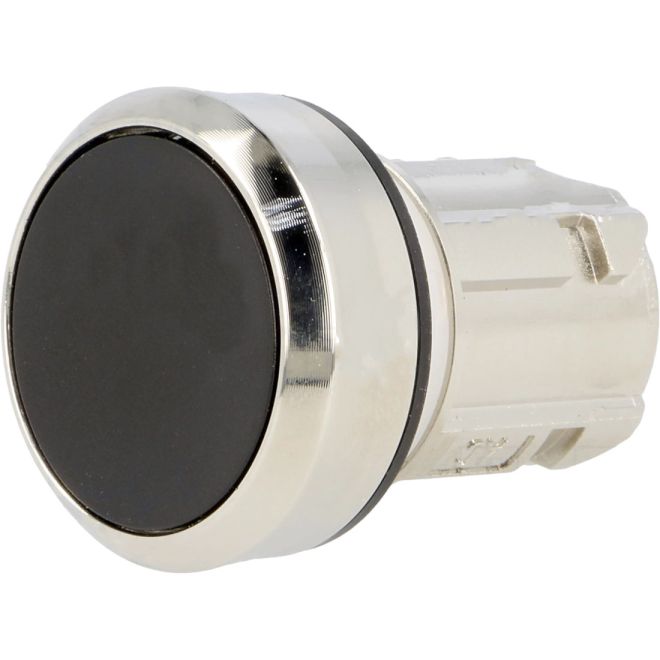

The SIEMENS 3SU10500AA100AA0 Sirius Act is a modular system of pushbuttons and indicator lights for front plate mounting and rear-mounted electrical modules. Complete units are made up of an actuating or signaling element and contact modules and/or LED modules for the most frequent application cases. The pushbutton is black with a round metal shiny bezel.

• Illuminated Pushbutton Operator
• 22mm Mounting Hole Size
• Latching Contact Mode

Product Highlights

The SIEMENS Sirius Act pushbuttons offer a unique portfolio of elegantly designed push buttons, indicator lights and switches that are the perfect embodiment of style, intelligence, and physical toughness.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU10500AA100AA0
• Country of Origin: China

Technical Specifications

• Type: Illuminated Pushbutton Operator
• Size: 22mm
• NEMA: NEMA 1, 2, 3, 3R, 4, 4X, 12
• Operating Cap: Round Flat Button 29.50 mm
• Color: Black
• Bezel/Housing: Round Metal, Shiny
• Contact Mode: Latching
• Brand: SIEMENS
• Manufacturer Part Number: 3SU10500AA100AA0
• Mounting Hole Size: 22mm
• Operation: Maintained
• Primary Type: Pushbutton
• Series: 3SU1 Series
• Overview: SIRIUS ACT
• Colour button: Black
• Type of button: Flat
• Suitable for lighting: No
• Number of command positions: 1
• Construction type lens: Round
• Hole diameter (mm): 22.3
• Switching function latching: Yes
• Spring-return: No
• With front ring: Yes
• Width opening (mm): 29.5
• Height opening (mm): 11
• Degree of protection (IP), front side: Other
• Material front ring: Metal
• Colour front ring: Chrome
• Labelled: No
• With protective cover: No
• Degree of protection (NEMA), front side: Other
• Manufacturer Alternate Number: 3SU1050-0AA10-0AA0
• IP Rating: IP66, IP67, IP69 (IP69K)
• Shape: Round
• Action Type: Latching
• Height (mm): 29.5mm
• Width (mm): 29.5mm
• Depth (Length) (mm): 35.3mm
