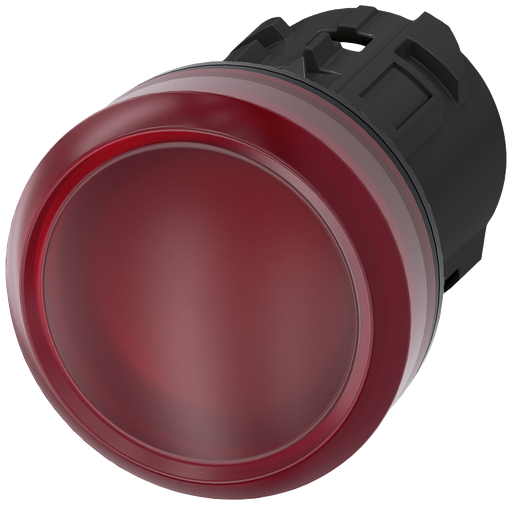

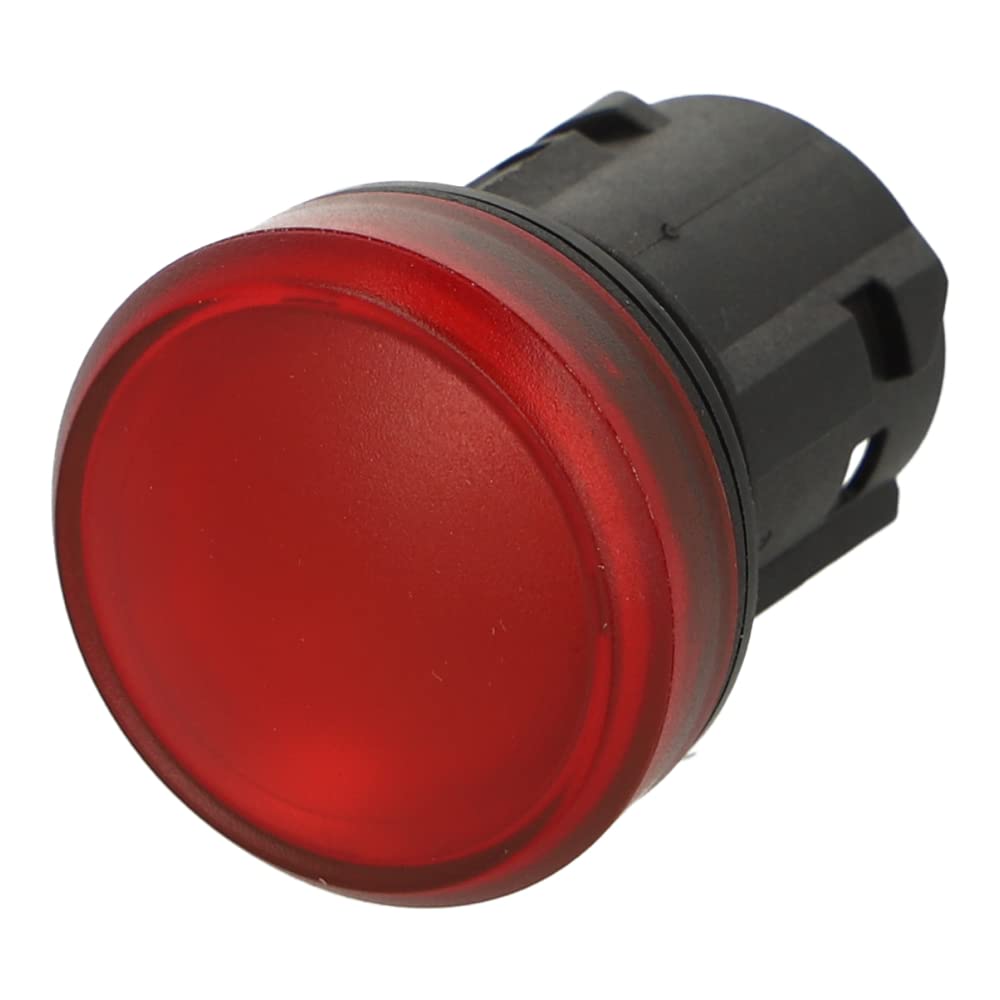

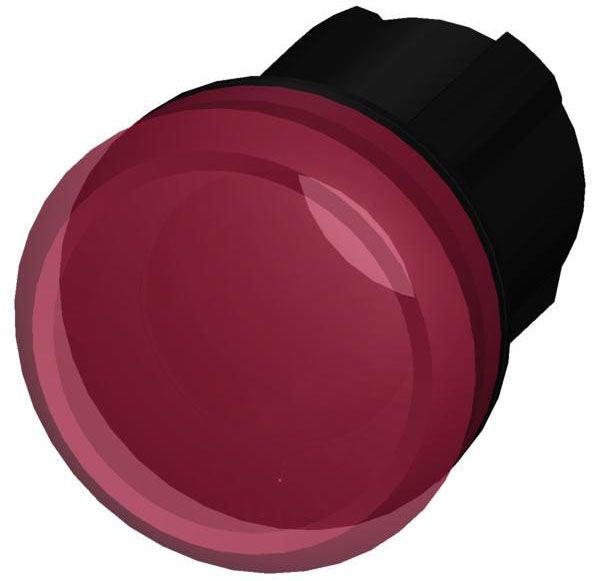

Siemens 3SU10016AA200AA0 Indicator Light 22mm

Product Description

The Siemens 3SU10016AA200AA0 indicator light is a 22mm, round, plastic indicator light with a smooth lens. It is designed for quick and easy installation using a snap-on concept. The indicator is rugged, with IP69K protection for use in extreme environments. Holders and contact/LED modules are sold separately.

• Modern design using metal and high-quality plastic.
• Quick, easy, one-hand installation without special tools.
• IP69K protection suitable for extreme environments.

Product Highlights

This 22mm Siemens indicator light offers easy installation and robust protection for various industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU10016AA200AA0
• Country of Origin: China

Technical Specifications

• Brand: SIEMENS
• Color: Red
• Size: 22mm
• Manufacturer: Siemens Industry
• Product Group: BISS
• Model / MPN: 3SU1001-6AA20-0AA0
• Lens Color: Red
• Lens Material: Plastic
• Product UPC: 80476606418
• Height: 1.3 Inch
• Hole Diameter: 22.3 mm
• Length: 4 Inch
• Width: 6.300 in
• Country of Origin: China
• Enclosure: NEMA 1/2/3/3R/4/4X/12/13, IP66/67/69
• Approval: UL, CSA, CE, EAC
• Ambient Temperature: -25 to 70 Deg C
• Series: 3SU1 Series
• Type: LED
• Lamp Color: Red
• Lens Transparency: Diffused
• Panel Cutout Shape: Round
• Panel Cutout Dimensions: 0.88" (22.30mm)
• Lens Size: 22.00mm Dia
• Lens Style: Round with Flat Top
• Ingress Protection: IP66, IP67, IP69, IP69K, NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
