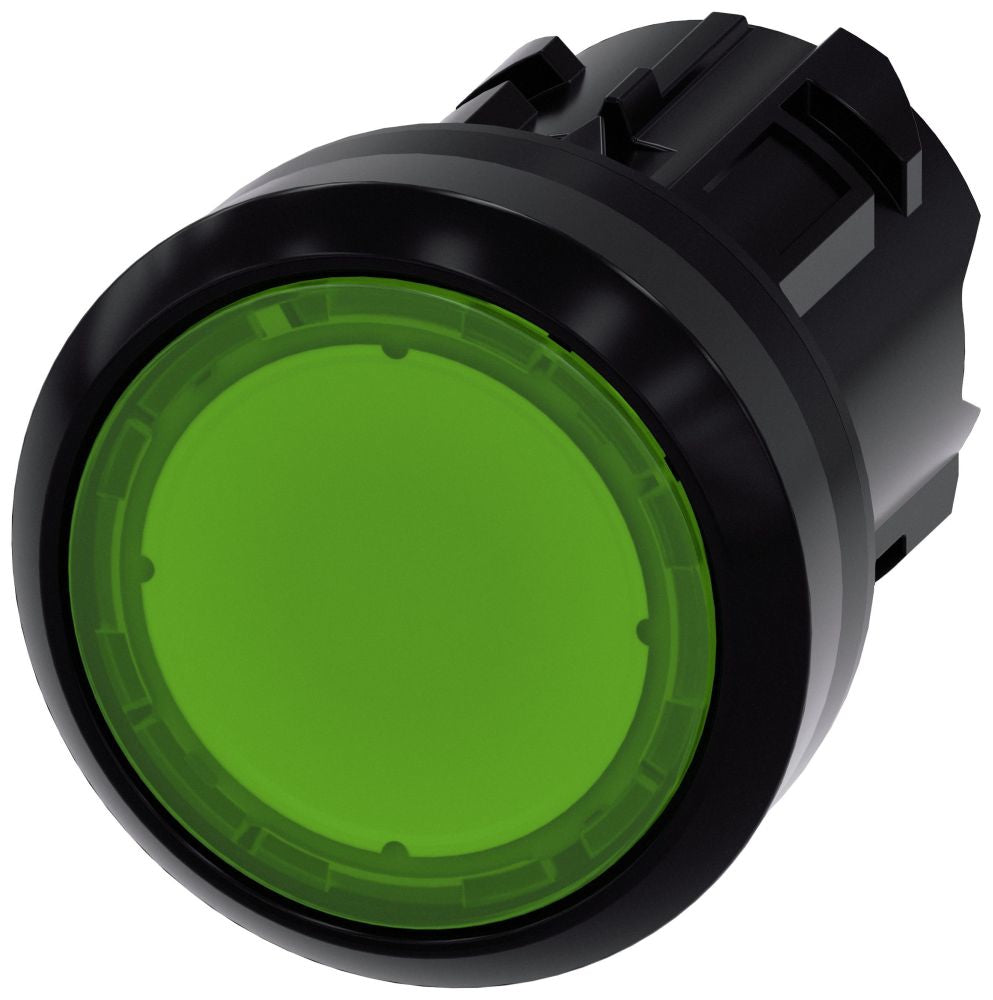

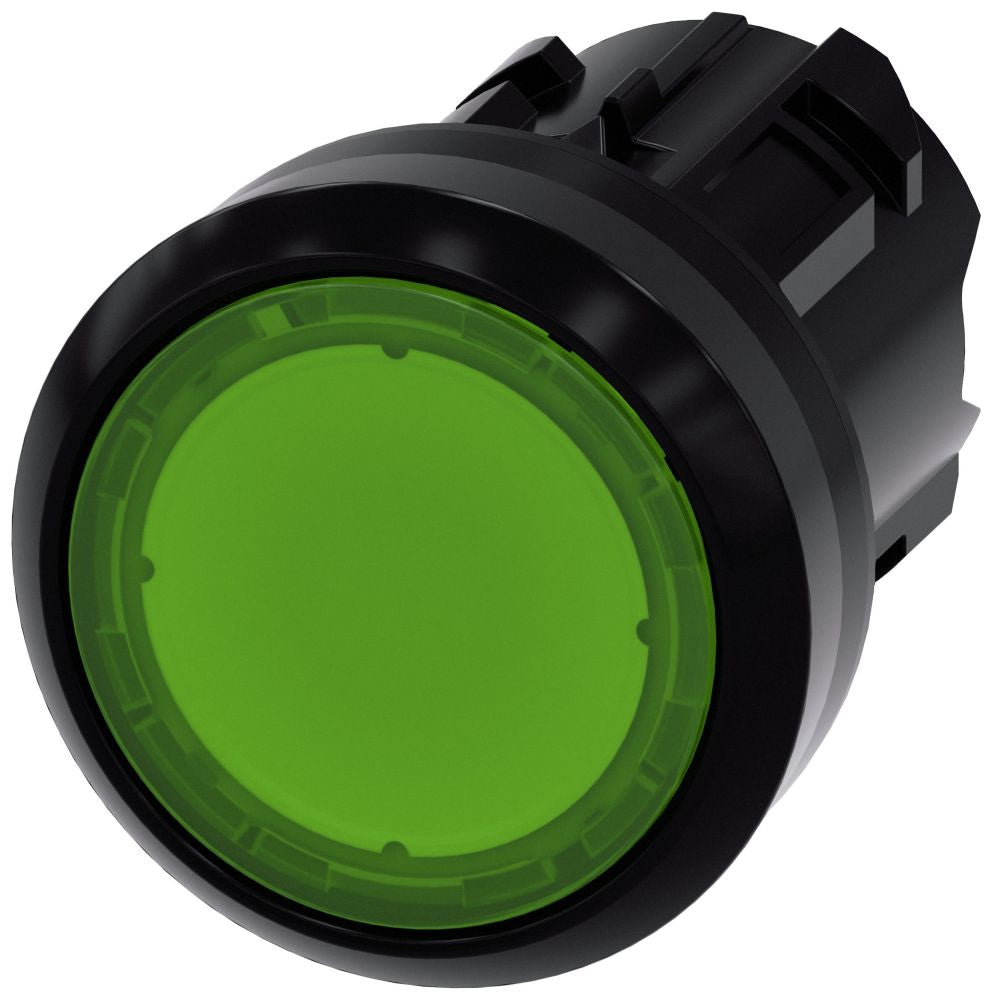

Siemens 3SU10010AB400AA0 Illuminated Pushbutton

Product Description

The SIEMENS 3SU10010AB400AA0 is an illuminated pushbutton designed for use in industrial control panels and electrical enclosures. It provides a combined switching and visual indication function, allowing operators to actuate a circuit while confirming status through built-in illumination. The unit measures 3.937 inches in length, 1.181 inches in width, and 1.181 inches in height, with a total weight of 0.033 pounds, making it a compact and lightweight component suited for panel-mount installation. Electricians and industrial control technicians typically specify this type of device for machine control, motor starter panels, and process equipment interfaces.

This illuminated pushbutton is intended for panel-mount applications in industrial and commercial electrical systems. It is suited for use in control stations, operator interface panels, and machine enclosures where both momentary switching and status indication are required. The compact footprint allows installation in densely populated control panels without sacrificing operational clarity.

Key Features

• Integrated illumination provides visual status indication at the point of actuation
• Compact form factor at 3.937 inches x 1.181 inches x 1.181 inches
• Lightweight construction at 0.033 pounds for easy panel integration
• Packaged individually, one unit per pack
• Suitable for industrial control panel and machine interface applications

Compatibility

Designed as an OEM-style illuminated pushbutton for industrial control panel and machine enclosure applications where a standard panel-mount pushbutton with indicator light is required.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local electrical codes. Disconnect and lock out all power to the control panel before removing or installing any pushbutton or control device. Verify that the panel cutout dimensions match the mounting requirements of this unit before installation. Do not exceed the rated electrical parameters of the device during testing or operation.

Technical Specifications

• Length: 3.937 inches
• Width: 1.181 inches
• Height: 1.181 inches
• Weight: 0.033 pounds
• Quantity per Pack: 1
• UPC: 80476606366

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SU10010AB400AA0
