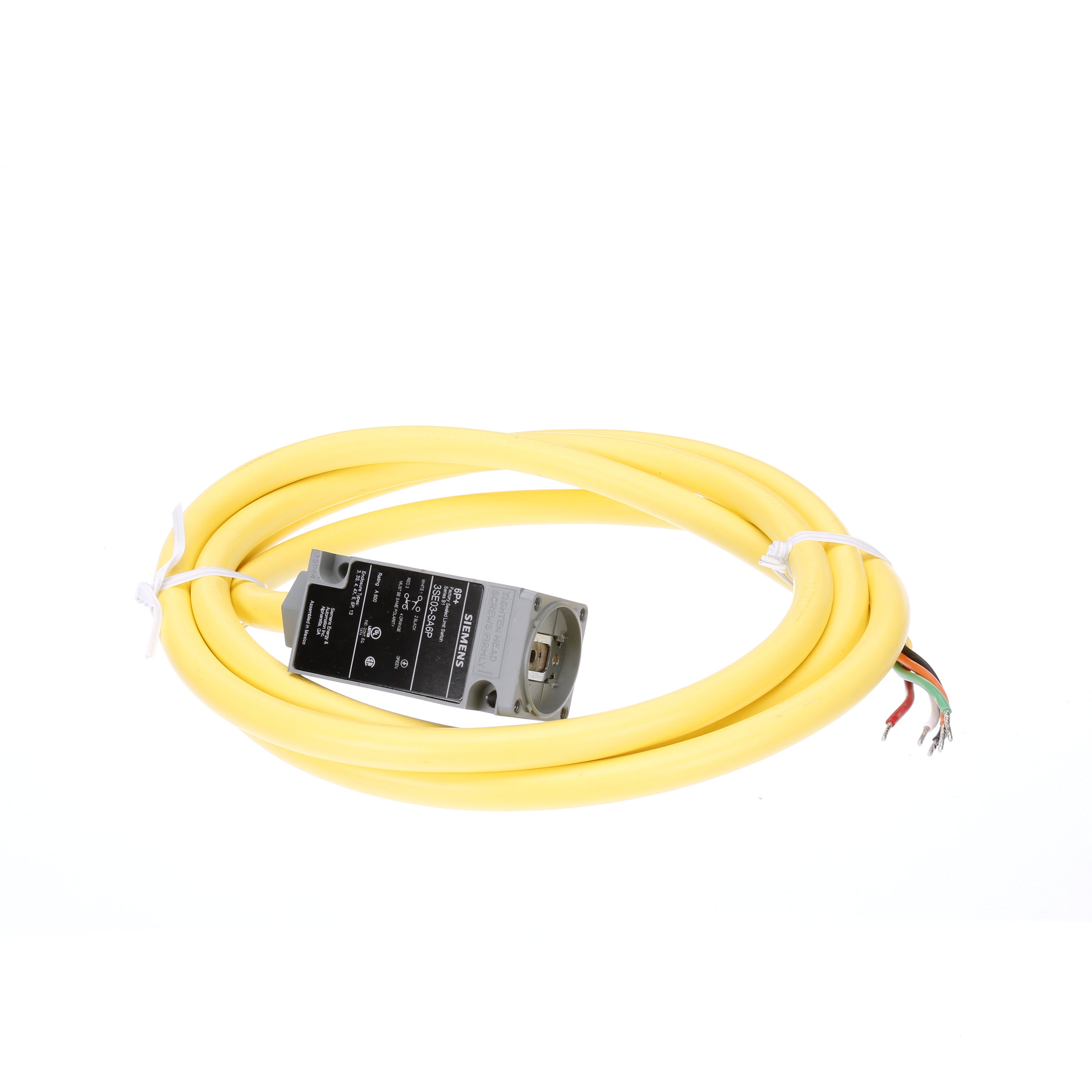

Siemens 3SE03-SA6P Limit Switch Body

Product Description

The Siemens 3SE03-SA6P is a limit switch body with a 1CO SPDT contact configuration. It is rated for 10 A at 600 V AC/1 A at 300 V DC and features a NEMA 1/3/3S/4/4X/6/6P/11/12/13/IP66 enclosure. Designed for use with the 3SE03 Series submersible limit switch, it is made of metal and has a cable connection.

• 8 ft pre wired cable
• White/black/red/orange/green cable color code
• 1NO-1NC snap action contacts

Product Highlights

Limit switch body with 1CO SPDT contact configuration, NEMA enclosure, and cable connection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SE03-SA6P
• Country of Origin: US

Technical Specifications

• Brand: Siemens
• Part Number #: 3SE03-SA6P
• Contact Rating: 10 A at 600 V AC/1 A at 300 V DC
• Enclosure Type: NEMA 1/3/3S/4/4X/6/6P/11/12/13/IP66
• Suitable For Use With: 3SE03 Series Submersible Limit Switch
• Temperature Rating (Degrees F): 14 to 221 deg F
• Model: 3SE03SA6P
• MPN: 3SE03-SA6P
• Category: Business & Industrial>Electrical Equipment & Supplies>Switches>Limit & Snap Action Switches
• Condition: New
• Country of Origin: Mexico
• Connection Type: Cable
• Material: Metal
• Contact Configuration: 1CO SPDT
