Siemens 3SB3601-0AA11 Pushbutton, Mom, Bl

Product Description

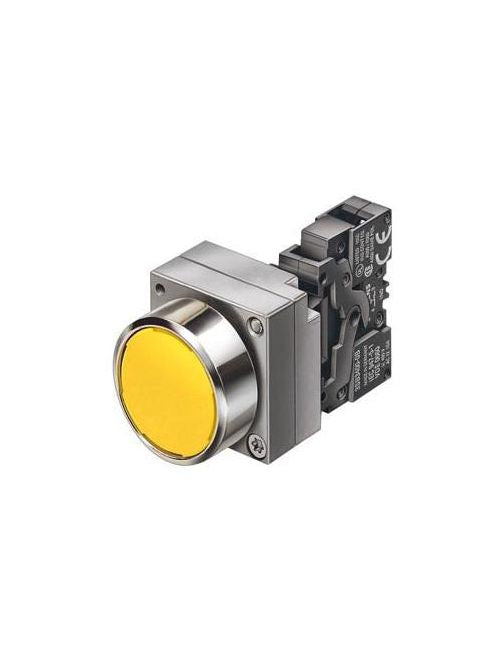

The SIEMENS 3SB3601-0AA11 is a SIRIUS pushbutton with a flat button and momentary contact. It features a metal enclosure and screw-type terminals for electrical connection. Designed for front mounting, it has a 1NO-1NC contact configuration. The pushbutton offers IP67 protection and operates in temperatures from -25 to 70 degrees Celsius.

• SIRIUS Pushbutton with flat button
• Momentary contact type
• Metal enclosure
• 1NO-1NC contact
• IP67 protection

Product Highlights

The SIEMENS 3SB3601-0AA11 is ideal for industrial applications requiring a robust and reliable momentary switch.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SB3601-0AA11
• Country of Origin: United States

Technical Specifications

• Contact Configuration: 1NO-1NC
• Enclosure Material: Metal
• Mounting: Front mounting
• Operating Temperature: -25 to 70.C
• Protection Class: IP67
• Terminal Type: Screw-type terminals
• Brand: SIEMENS
• Actuator Color: Black
• Actuator Type: Round 22mm Flush
• Contact Form: 1 NC, 1 NO
• Manufacturer Part Number: 3SB36010AA11
• Mounting Type: 22 mm dia. Panel hole
• Operation: Momentary
• Series: 3SB3 Series
• Special Features: Round metal ring/bezel
• Standards: CCC CSA GOST UL IP67
• Termination: screw
