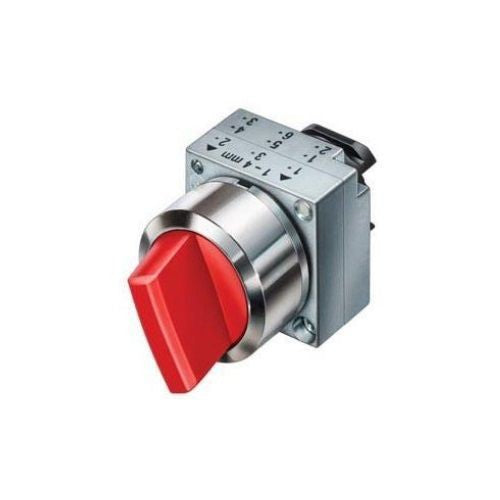

Siemens 3SB3500-2PA11 Selector Switch 22 mm

Product Description

The Siemens 3SB3500-2PA11 is a 22 mm selector switch designed for front plate mounting and rear conductor connection. It features a maintained action and a metal round enclosure. This selector switch is suitable for standard industrial and marine applications. The 3SB3 series offers a modular range of commanding and signaling devices.

• Modern industrial design allows for rapid mounting by a single person.
• Metal version with IP67 and NEMA 4 protection for global use.
• Features screw-type terminals for secure connections.

Product Highlights

This 2-position selector switch has a metal bezel and is ideal for various industrial applications requiring a robust and reliable control device.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SB3500-2PA11
• Country of Origin: Mexico

Technical Specifications

• Size: 22 mm
• Type: Selector Switch Heavy-duty Version
• Brand: Siemens
• Color: Chrome Bezel
• Action: Maintained
• Material: Metal
• Standard: EN,IEC
• Enclosure: Metal Round
• Lens Type: Round
• Mounting Type: Front Mounting
• Bezel Material: Metal
• Connection Type: Screw-Type Terminals
• Number of Positions: 2
• Operating Temperature: -25 C
• Series: 3SB3
• Terminal Type: Screw
• Actuator: Round
• Enclosure Type: NEMA 1/3/4/4X/12/IP67
• Environmental Conditions: -25 to 70 deg C Operating
• Application: Standard Industrial and Marine Application
• Throw: 50 deg Left/Right
• Bezel/Housing: Metal Bezel
• NEMA: 4,4X,13
• Operating Cap: Knob
• Positions: 2
