Siemens 3SB3400-0A Actuator-/Indicator Component Contact Block 400/300 VAC 24 VDC 6 Amp REPLACEMENT 3SU1400-1AA10-1FA0

Product Description

The SIEMENS 3SB3400-0A is an actuator/indicator component contact block. This 400/300 VAC, 24 VDC contact block is designed for front mounting and features screw-type terminals. It is suitable for standard industrial and marine applications and can be used in intrinsically safe circuits in potentially explosive atmospheres.

• Contact configuration: 1NO + 1NC
• Operating temperature: -25 to 70 Deg C
• Enclosure rating: IP20/IP40

Product Highlights

The SIEMENS 3SB3400-0A contact block is climate-proof and RoHS compliant. It has gold-plated contacts and is suitable for front plate mounting.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3SB3400-0A
• Country of Origin: CZE

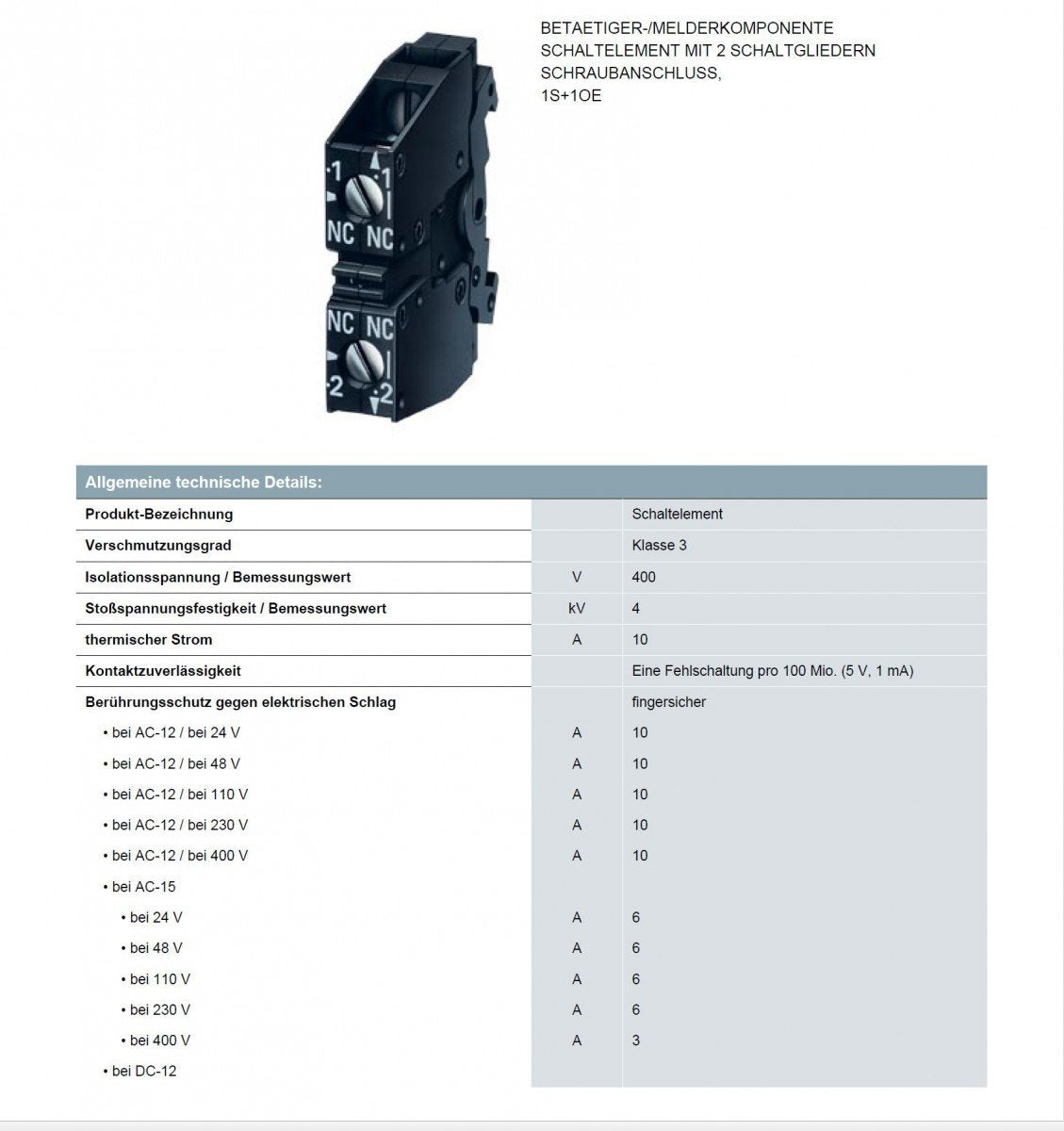

Technical Specifications

• Type: contact block
• Brand: Siemens
• Voltage: 400 VAC
• Material: Plastic
• Standard: IEC,EN
• Sub Brand: 3SB Push Button Units & Indicator Lights
• Used With: 3SB Push Button Units and Indicator Lights
• Applications: Standard Industrial and Marine Application
• Mounting Type: Front
• TC Connection: screw-type terminals
• Terminal Type: Screw
• Connection Type: Screw-Type Terminals
• Number of Poles: 2 Pole
• Operating Temperature: -25 C
• Model / MPN: SIGNUM 3SB3
• Contact Configuration: 1 Normally Open / 1 Normally Closed
• Current Rating: 6 AMP
• Product Type: CONTACT BLOCK
• Mounting Style: FRONT PLATE MOUNTING
• Terminal Style: SCREW TERMINAL
• MPN: 3SB3400-0A
• Category: Business & Industrial
• Contact Material: Gold Plated
• Size: 22 Millimeter
• Accessory Type: Contact Blocks
• RoHS Compliant: True
• Enclosure Rating: IP20/IP40
• Approval: CSA, EAC, CE
