Siemens 3RW52366AC04 Soft Start / Stop 171A 600V Load

Product Description

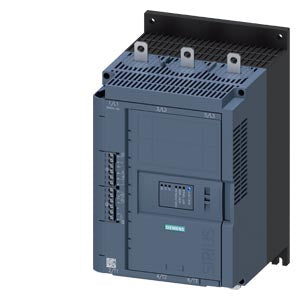

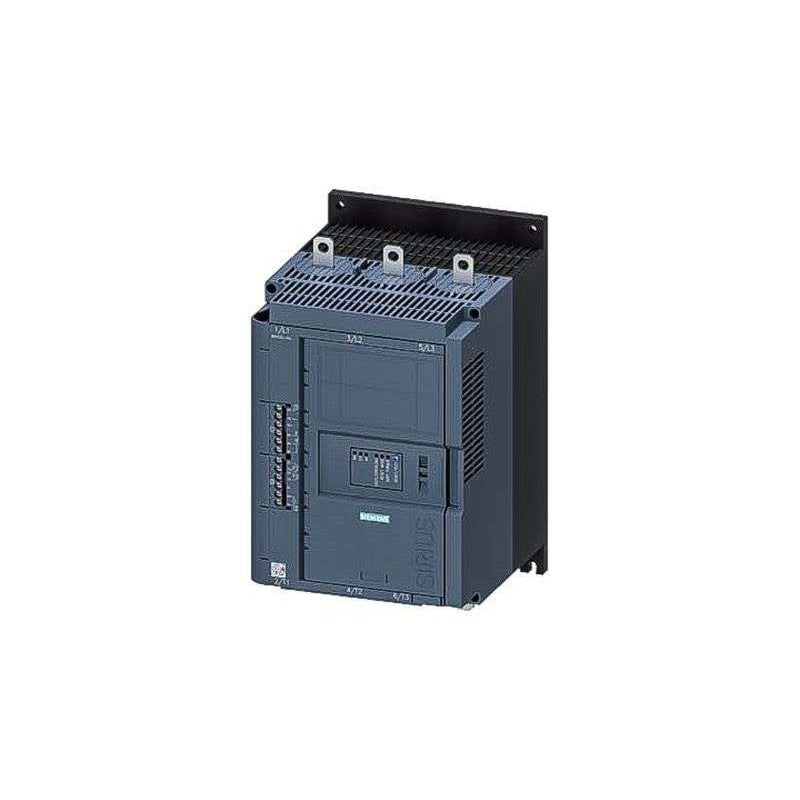

The Siemens 3RW52366AC04 is a soft starter/stop module with a 24VAC/DC supply and a 171A, 600V load capacity. It is designed for AC motors and provides a soft start/stop control/drive type. Suitable for a range of applications requiring controlled motor starting and stopping. The soft starter operates within a temperature range of -25°C to 60°C.

• Rated operating voltage Ue: 200 V
• Integrated motor overload protection
• Rated power three-phase motor, inline, at 230 V: 45 kW

Product Highlights

The Siemens 3RW52366AC04 soft starter ensures smooth motor control with overload protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RW52366AC04
• Country of Origin: Czechia

Technical Specifications

• Category: Motors, Actuators, Solenoids and Drivers
• Motor Driver Boards, Modules: Motor Driver Boards, Modules
• Number of Motors: 1
• Manufacturer: Siemens
• Voltage - Load: 600V
• Series: SIRIUS
• Current - Output: 171A
• Packaging: Box
• Wattage - Load: 90000 W
• Part Status: Active
• Voltage - Supply: 24VAC/DC
• Type: Module
• Mounting Type: Chassis Mount
• Motor Type: AC Motor
• Operating Temperature: -25°C ~ 60°C
• Control / Drive Type: Soft Start / Stop
• Degree of protection (IP): IP00
• Function: Single direction
• Integrated motor overload protection: true
• Internal bypass: true
• Rated control supply voltage Us at AC 50HZ: 24 V
• Rated control supply voltage Us at AC 60HZ: 24 V
• Rated control supply voltage Us at DC: 24 V
• Rated operating voltage Ue: 200 V
• Rated operation current Ie at 40 °C Tu: 171 A
• Rated power three-phase motor, inline, at 230 V: 45 kW
• Rated power three-phase motor, inline, at 400 V: 90 kW
• Rated power three-phase motor, inside delta, at 230 V: 90 kW
• Rated power three-phase motor, inside delta, at 400 V: 160 kW
• Rated surrounding temperature without derating: 40 °C
• Release class: Adjustable
• Torque control: false
• Voltage type for actuating: AC/DC
• With display: false
• Rated Voltage: 400 V
• Rated Power: 15 kW
• Frequency: 50/60 Hz
• Control Way: Soft Starter
• Protection: Overload Protection
• IP Level: IP54
• Technology: Electronic
• Wide Power Range: 400 V
• Model Number: N/3RW52366AC04
• Brand Name: Siemens
