Product Description

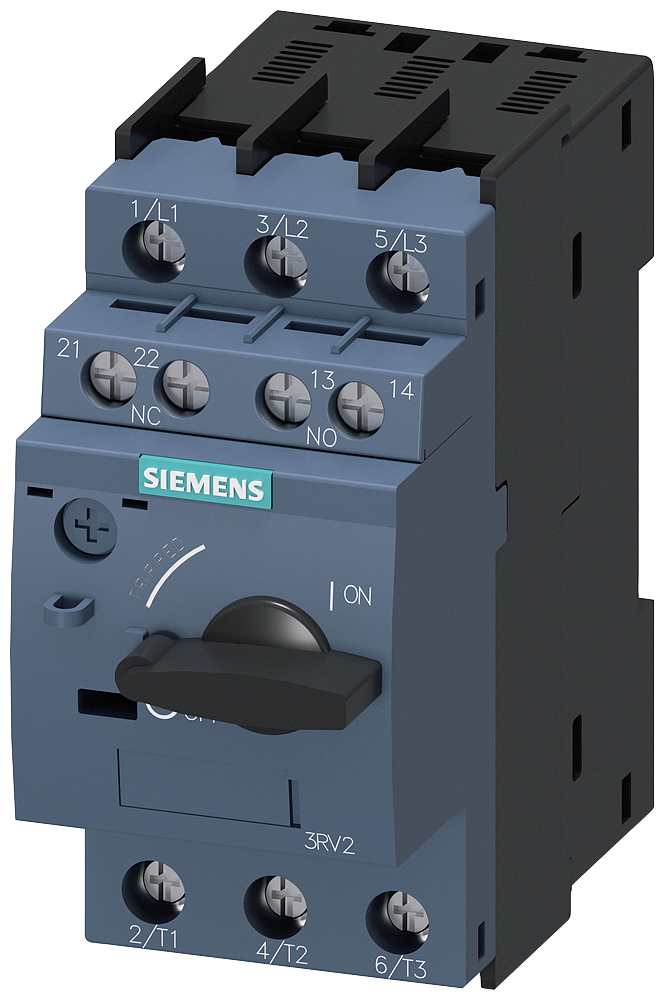

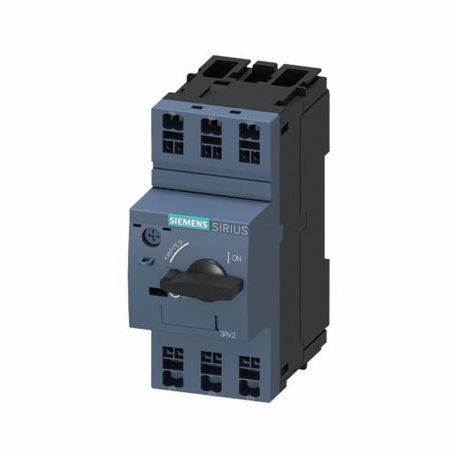

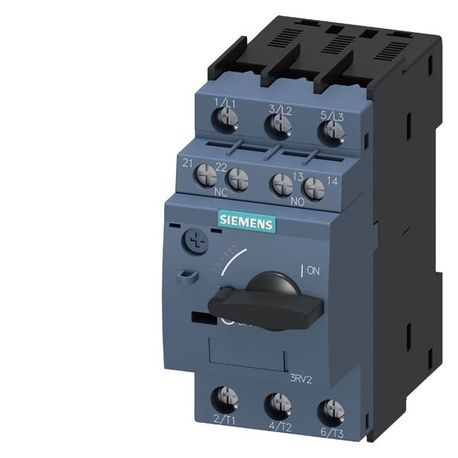

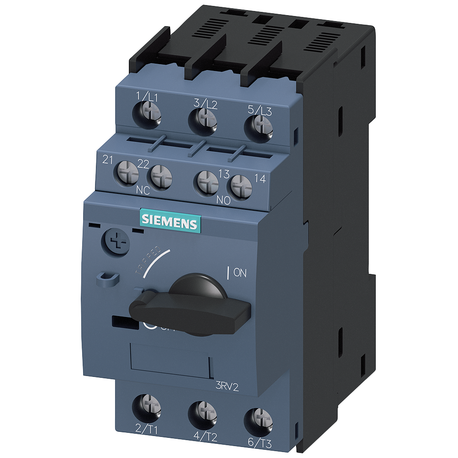

The Siemens 3RV20214DA15 MSP S0 is a 3RV2 circuit breaker used as a manual motor controller and in group installations. This 3-pole circuit breaker features screw-type terminals and is designed for switching and protecting 3-phase motors up to 18.5 kW at 400 VAC and other loads with rated currents up to 25 A.
- Used as Manual Motor Controller
- Used in Group Installation
- Screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
Product Highlights
The Siemens 3RV20214DA15 circuit breaker provides reliable motor protection with thermal/magnetic trip functionality and an auxiliary contact rating of 1NO-1NC.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: 3RV20214DA15
-
Country of Origin: Germany
Technical Specifications
-
GTiN: 00662643924435
-
Type: 3RV2 circuit breaker
-
Brand: Siemens
-
Width: 1.930 in
-
Height: 4.02 Inch
-
Length: 4.02 Inch
-
Voltage: 690 Volt
-
Sub Brand: SIRIUS
-
Product UPC: 66264392443
-
12-Digit UPC: 662643924435
-
Applications: Used as Manual Motor Controller and in Group Installation
-
TC Connection: screw-type terminals
-
Connection Type: Screw Connection
-
Number of Poles: 3 Pole
-
Operating Cycles: 100000
-
Country of Origin: Germany
-
Manufacturer: Siemens
-
Model / MPN: 3RV2021-4DA15
-
Number of Items: 1.0
-
Mounting Type: DIN Rail
-
Trip Type: Thermal/Magnetic
-
Auxiliary Contact Rating: 1NO-1NC
-
Amperage Rating: 20 to 25 A
-
Interrupt Rating: 4 kA
-
Power Rating: 22 kW
-
Temperature Rating: -20 to 60 deg C
-
Wire Size: 16 to 12 AWG, 14 to 8 AWG
-
Frequency Rating: 50/60 Hz
-
Enclosure Type: IP20
-
Phase: 3
-
Frame: S0
-
UNSPSC: 39121601
-
Vendor SKU: 3RV20214DA15
-
Standard & Approvals: CE Marked|CCC Marked|CSA Certified|UL Listed
-
Application: For manual motor controller and system protection
-
Part Number #: 3RV20214DA15
-
SKU #: 2232358
-
Trip Range: 18 to 25/325 A
-
Series: 3RV2 Series
-
UPC Code: 662643924435
-
Model: 3RV2021-4DA15
-
UPC: Does not apply
-
MPN: Does Not Apply
-
Controller Platform: Automate
