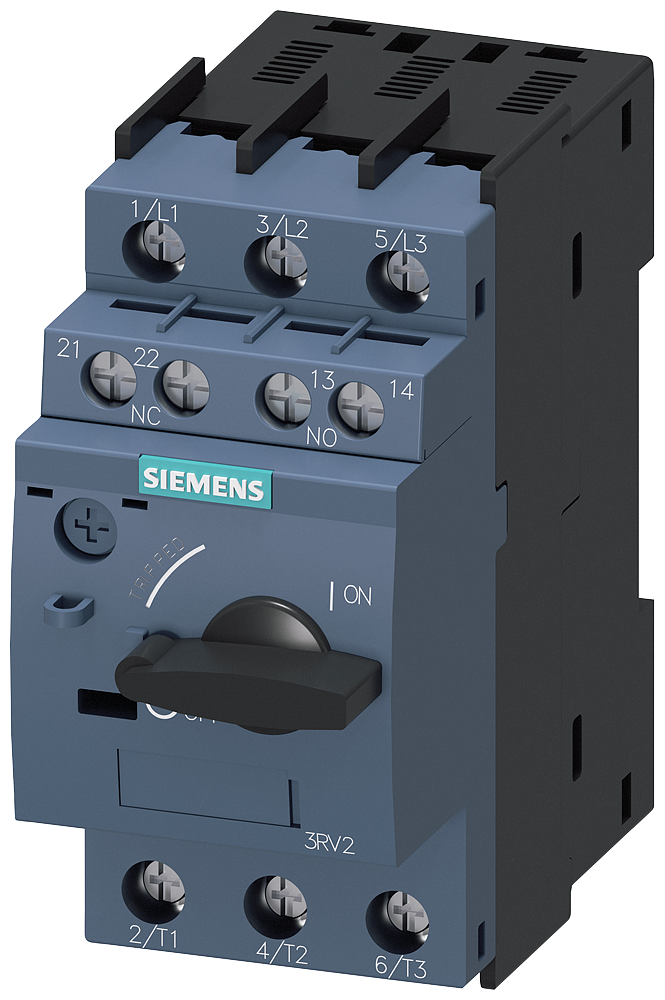

Siemens 3RV20111CA15 SWITCH_MOTOR_3RV20

Product Description

The Siemens 3RV20111CA15 is a motor protection circuit breaker designed to protect three-phase motors. It is suitable for operating at a voltage rating of 690 VAC with a current rating of 2.5 A and features a thermal/magnetic trip mechanism. This product ensures reliable operation under various load conditions.

• Designed for three-phase motors up to 18.5 kW.
• Incorporates thermal and magnetic trip functionalities.
• Suitable for DIN rail mounting.

Product Highlights

The 3RV20111CA15 is optimized for load feeders and is an essential component for manual motor control and system protection.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• Catalog Number: 3RV20111CA15
• Connection Type: Screw
• Number of Poles: 3
• Country of Origin: Germany

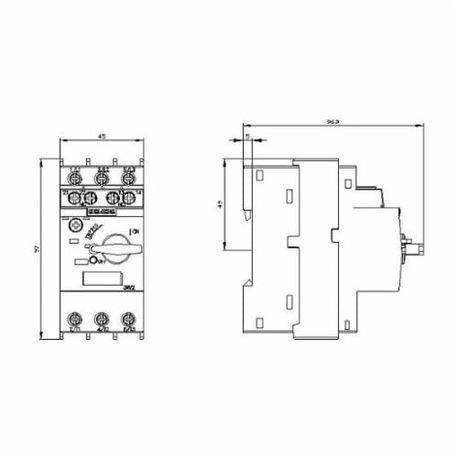

• Dimensions: 4.1 inches L x 2.1 inches W x 4 inches H
• Weight: 0.795 lb
• Voltage Rating: 690 VAC
• Amperage Rating: 2.5 A
• Interrupt Rating: 10 kA
• Temperature Rating: -20 to 60 deg C
• Frequency Rating: 50/60 Hz
• Mounting Type: DIN Rail
• Standard & Approvals: CE Certified, CSA Certified, UL Listed
