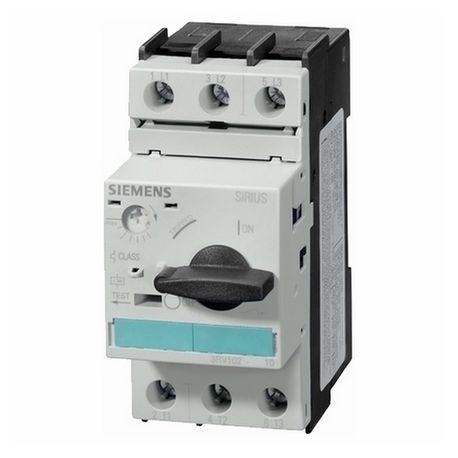

Siemens 3RV1021-4BA10 3-Pole 20 Amp Motor Starter Protector

Product Description

The SIEMENS 3RV1021-4BA10 SIRIUS motor starter protector can be used as components in group installation per NEC 430-53(C) to turn motors on and off. It has built-in heater elements that provide overload protection and magnetic trip elements to protect the motor. It is optimized for load feeders and used for switching and protecting 3-phase induction motors of up to 45 kW at 400 VAC and for other loads with rated currents of up to 100 A.

• Can be used as components in group installation per NEC 430-53(C)
• Built-in heater elements provide overload protection
• Magnetic trip elements protect the motor

Product Highlights

The 3RV1021-4BA10 motor starter protector provides overload protection with built-in heater elements and magnetic trip elements to protect the motor.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RV1021-4BA10
• Country of Origin: DEU

Technical Specifications

• Brand: Siemens
• Manufacturer: Siemens
• Model / MPN: 3RV1021-4BA10
• MPN: 3RV1021-4BA10
• Number of Items: 1.0
• Enclosure Type: IP20
• Overloads: 14 to 20 Amp
• Construction Standard: IEC
• Operating Voltage Rating: 690 Volt AC
• Trip Class: 10
• Ambient Temperature Rating: -20 to 60 Deg C
• Mounting Type: 35 Millimeter Standard Rail, Screw/Snap-On
• Terminal Type: Screw
• Approval: UL, CSA, CE, EAC, CCC
• connection_type: Screw
• phase: 3
• interrupt_rating: 50 kA
• mounting_type: DIN Rail
• frequency_rating: 50 to 60 Hz
• voltage_rating: 690 VAC/VDC
• amperage_rating: 20 A
• number_of_poles: 3
• frame: S0
• series: 3RV1
• trip_type: Thermal/Magnetic
• actuator_type: Rotary Handle
• power_rating: 7.5 kW
• application: For motor protection and system protection
• standard_approvals: UL Listed|CE Certified|CCC Certified|CSA Certified|IEC Certified
• Current Rating: 14.0 to 20.0 A
• Manufacturer Part Number: 3RV10214BA10
• Primary Type: Circuit Breaker
• UPC Code: 754554409290
