Siemens 3RU21364EB0 Overload S2 CL10 22

Product Description

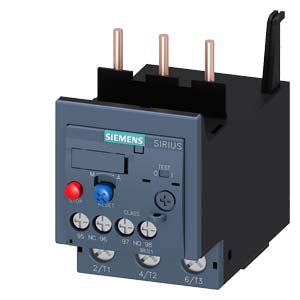

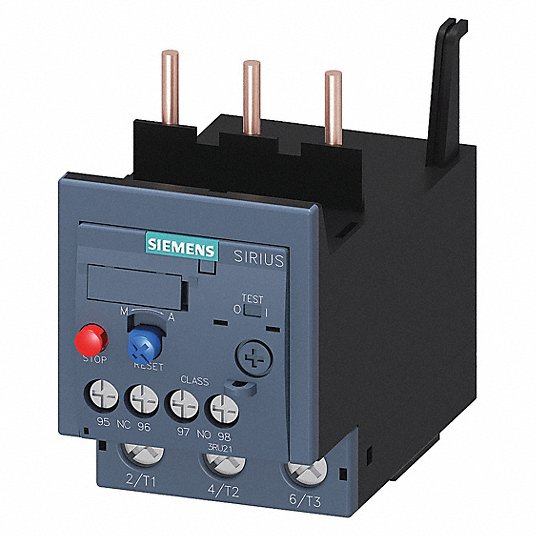

The SIEMENS 3RU21364EB0 is a thermal overload relay designed for motor protection. It provides inverse-time delayed protection of loads with normal starting against excessive temperature rises due to overload or phase failure. The relay is size S2, Class 10, and features manual-automatic-reset functionality. It is suitable for contactor mounting with screw terminals for the main and auxiliary circuits.

• Thermal Overload Relay
• For motor protection
• Size S2, Class 10

Product Highlights

Provides reliable motor protection with manual or automatic reset options. Designed for easy integration and operation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RU21364EB0
• Country of Origin: Germany

Technical Specifications

• Type: Manual-Automatic-Reset
• Brand: Siemens
• Class: Class 10
• Width: 2.400 in
• Height: 4.35 Inch
• Length: 3.8 Inch
• Voltage: 690 VAC
• Amperage: 32 Amp
• Sub Brand: Sirius
• Applications: For Motor Protection
• Power Rating: 11 W
• Terminal Type: Screw
• Conductor Size: 20-16/18-14 AWG
• Contact Rating: B600,R300
• Enclosure Type: IP00/IP20
• Connection Type: Screw Connection
• Number of Poles: 3 Pole
• Enclosure Rating: IP00, IP20
• Temperature Rating: -40 to 60 degrees C
• Contact Configuration: 1NO, 1NC
• Size: S2
• Contactor mounting: Yes
• Main circuit: Screw
• Auxiliary circuit: Screw
• Application: inverse-time delayed protection of loads with normal starting against excessive temperature rises due to overload or phase failure
• Approvals: IEC, UL/CSA, ATEX, IEC Ex
• Relay Style: Thermal
• Overload Protection Type: Thermal
• Relay Mounting Style: Direct To Contactor
• Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements)
• Phase: Three
• Auxiliary Contacts Included: 1NO/1NC
• Maximum Overload Relay Current Setting: 32
• Minimum Overload Relay Current Setting: 22
• Maximum Voltage Rating: 690V
• Trip Class: 10
• Phase Loss Sensitivity: No
• Reset Type: Auto; Manual
• Wire Termination Type: Screw
• IP Rating: IP20
• Body Depth: 4.13 in
• Body Height: 3.54 in
• Body Width: 2.17 in
• Coil Voltage: 690 V AC
• Contact Form: 1NO-1NC 1 Form A/1 Form B
• Frequency Rating: 50 to 60 Hz
• Amperage Maximum: 32
• Amperage Minimum: 22
