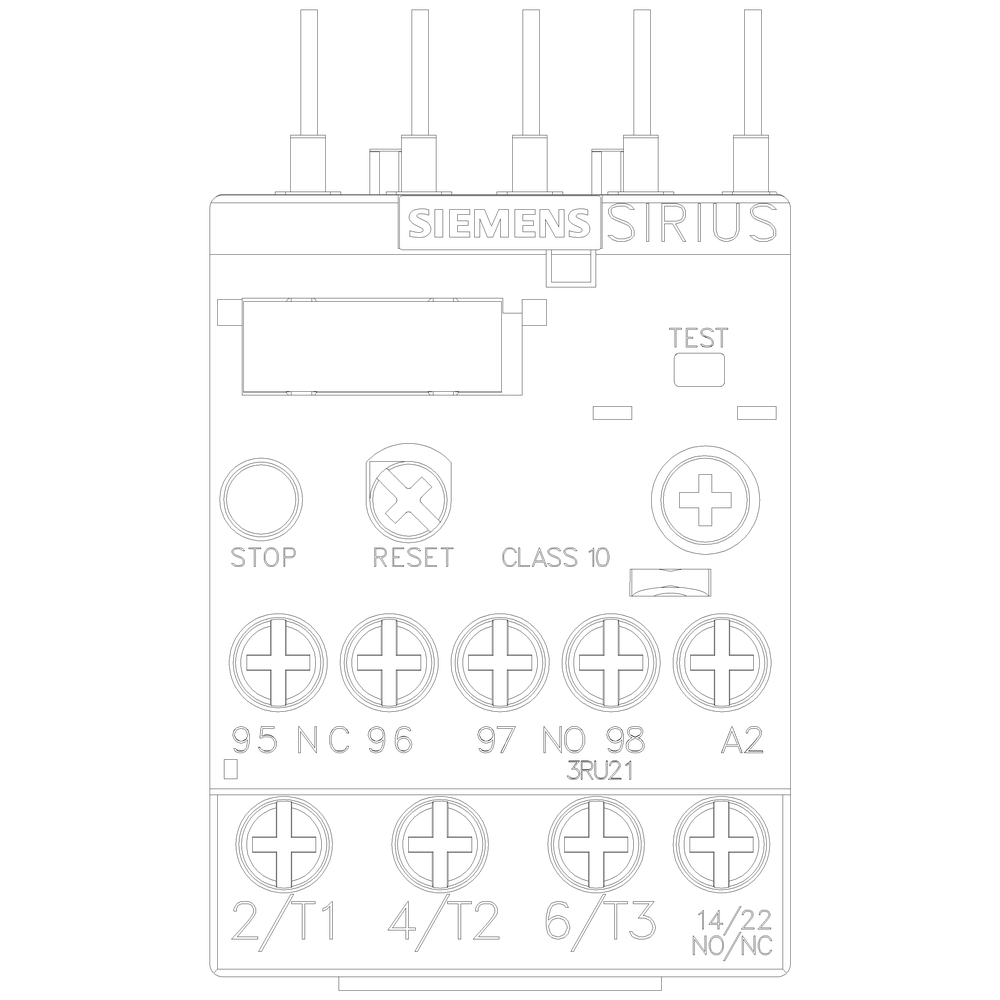

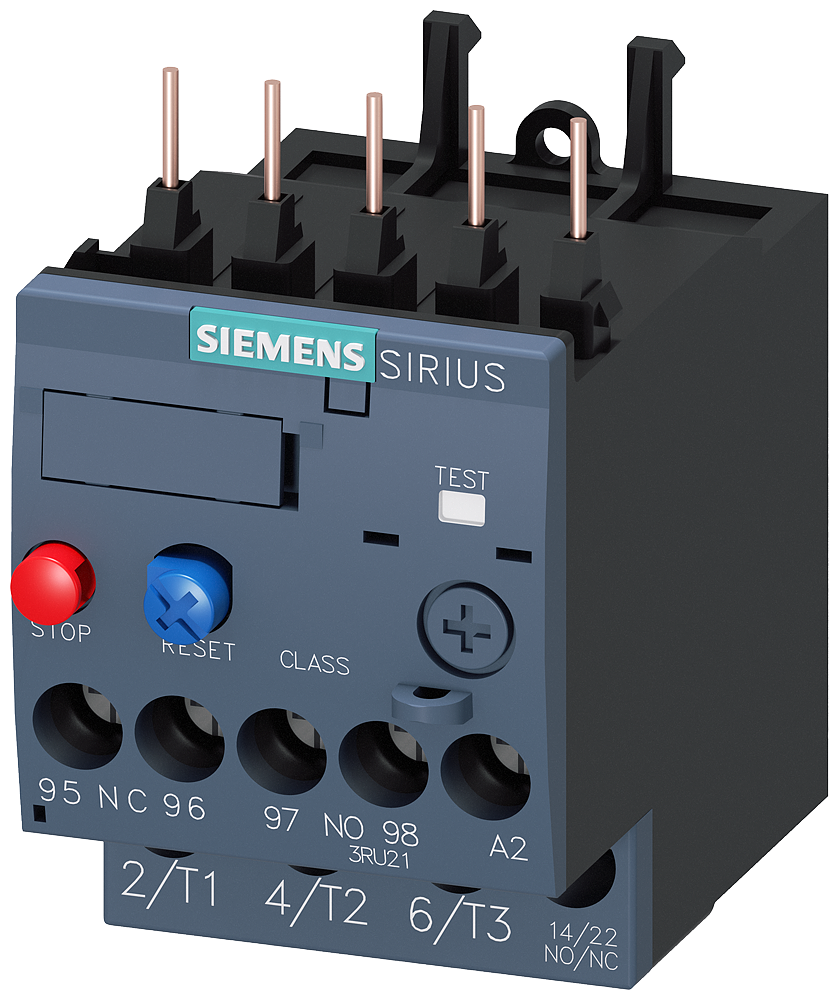

Siemens 3RU21160JB0 690 VAC 0.7 to 1 Amp 3-Pole Thermal Overload Relay

Product Description

The Siemens 3RU21160JB0 is a thermal overload relay with a voltage rating of six hundred ninety volts and an amperage range of zero point seven to one amp. It offers effective protection for motors against overheating and phase failures. This product is part of the SIRIUS series and supports manual and automatic reset options.

• Three-pole design for efficient performance
• Mounts easily with screw terminals
• Designed for AC and DC motors

Product Highlights

Flexible and cost-effective, the SIRIUS modular system can cater to various installation needs.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3RU21160JB0

Technical Specifications

• GTiN: 00662643919998
• Size: S00
• Type: 3RU2 thermal overload relay
• Class: Class 10
• Width: 1.500 in
• Height: 3.45 in
• Length: 3.8 in
• Weight: 0.300 lb
• Voltage: 690 Volt
• Amperage: 0.7-1 Amp
• Sub Brand: Sirius
• Reset Type: 3
• Product UPC: 66264391999
• Applications: Designed for the protection of three phase and single phase AC and DC motors
• Terminal Type: Screw
• Contact Rating: B600,R300
• Connection Type: Screw Connection
• Number of Poles: 3 Pole
• Country of Origin: Germany
• Temperature Rating: -40 to 70 degrees C
• Contact Configuration: 1 NC, 1 NO Auxiliary
• Operating Temperature: -40 to 70 degrees C
