Siemens 3RT20262BB40 Contactor, AC-3, 11KW/400V, 1NO+1NC, DC 24V

SIEMENS
Brand: SIEMENS
SKU: 3RT20262BB40
Availability: In Stock

Ships same day if ordered by 12 pm
$520.99
$520.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

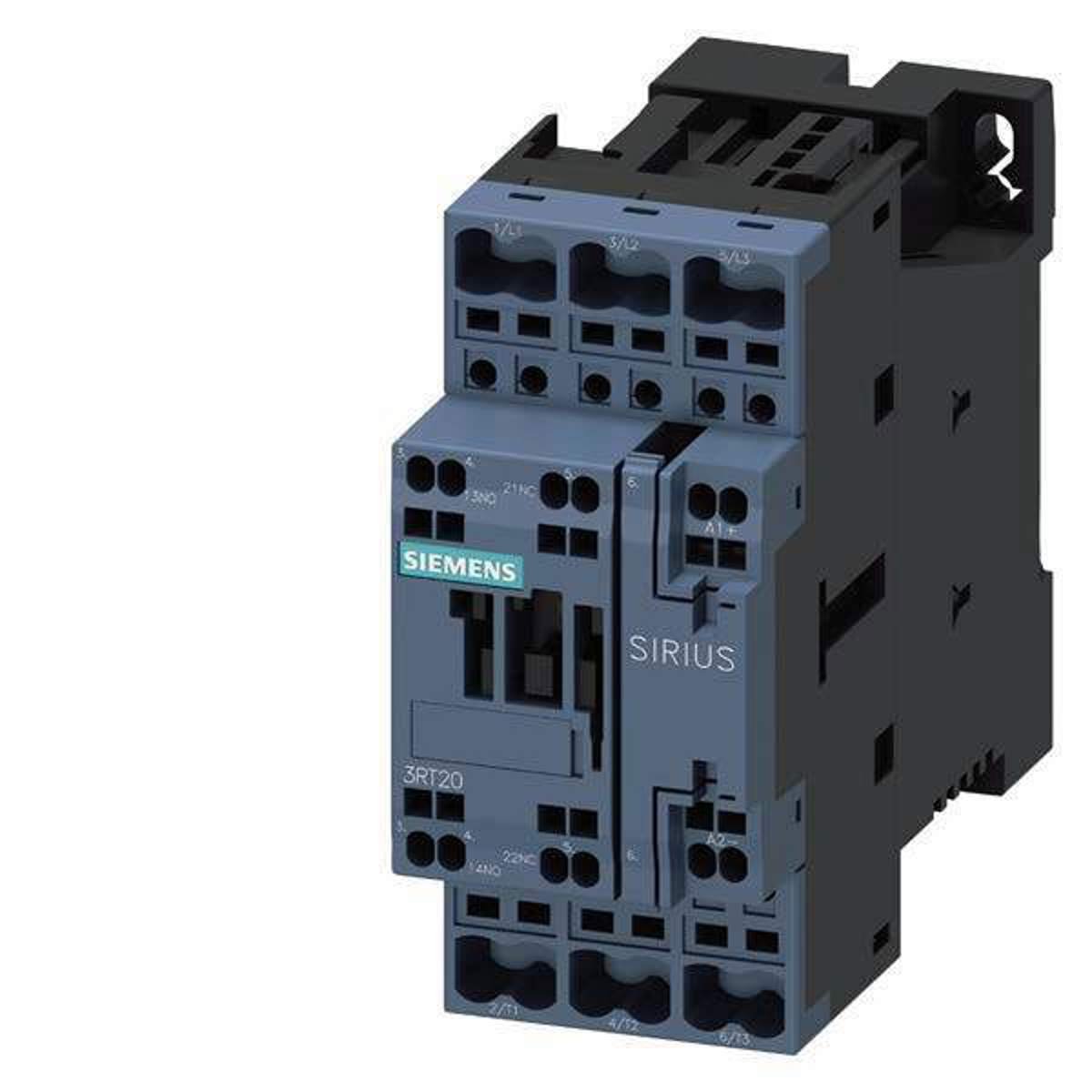

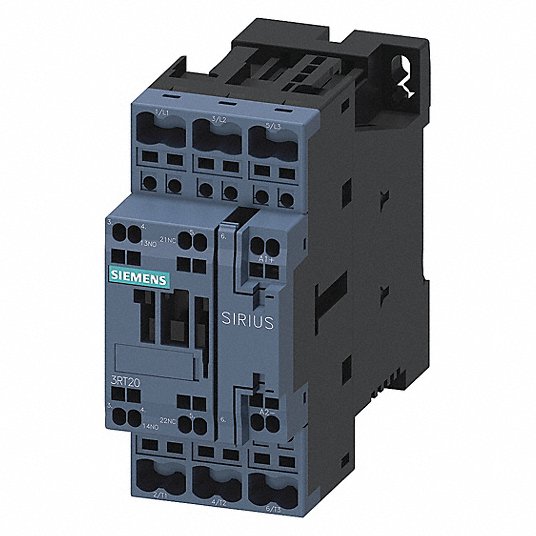

The SIEMENS 3RT20262BB40 is a contactor designed for AC-3 applications, with a power rating of 11kW at 400V. It features 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, and operates on a 24V DC coil. This 3-pole contactor is climate-proof and suitable for use worldwide. It connects and disconnects power to motors and other high-current equipment.

  • AC-3 application
  • 1NO+1NC auxiliary contacts
  • 24V DC coil

Product Highlights

This contactor is ideal for connecting and disconnecting power to motors and other high-current equipment.

Product Information

Standard Information

  • Brand: SIEMENS
  • Manufacturer Part Number: 3RT20262BB40
  • Country of Origin: Germany
Technical Specifications
Catalog Number
3RT20262BB40
Manufacturer
Siemens
Brand
Siemens
Country of Origin
Germany
Made in USA
No
UPC
662643914108
GTIN
00662643914108
UNSPSC Code
39120000
Unit of Measure
EA
Mounting Type
Chassis Mount, DIN Rail
Series
3RT Series
Number of Poles
3
Terminal Type
Spring Terminal
Type
General Purpose Contactors
Control Voltage
24 V
Contact Current Rating
25 A
Switching Voltage
690VAC - Max
Features
Auxiliary Contacts
Operating Temperature
-25 0C ~ 60 0C
Part Status
Active
Must Operate Voltage
19.2 VDC
Coil Current
245.8 mA
Coil Voltage
24VDC
Coil Power
5.9W
Contact Form
3PST-NO (3 Form A)
Coil Resistance
97.6Ohms
Contact Rating (Current)
25 A
Base Product Number
3RT2026
Contactor Style
IEC
Reversing Capability
Non-Reversing
Main Power Pole Contact Form
3NO
Includes Auxiliary Contacts
Yes
Auxiliary Contacts Included
1NO/1NC
Phase
Three
Full Load Current - Inductive
25 A
Full Load Current - Resistive
40 A
Nominal Coil Voltage @ 60Hz
24V DC
Maximum Voltage Rating
690V AC
Horsepower @ Single Phase - 120V AC
2 hp
Horsepower @ Single Phase - 240V AC
3 hp
Horsepower @ Three Phase - 208V AC
7-1/2 hp
Horsepower @ Three Phase - 240V AC
7-1/2 hp
Horsepower @ Three Phase - 480V AC
15 hp
Horsepower @ Three Phase - 600V AC
20 hp
Wire Termination Type
Spring Loaded
Integrated Surge Suppression
No
IP Rating
IP20
NEMA Enclosure Rating
No
Frame Size
S0
Overall Height
5 in
Overall Width
1.5 in
Overall Depth
5.2 in
Mounting Postion
Vertical
Mechanical Operating Durability
10,000,000
Minimum Operating Temperature
-13 0F
Maximum Operating Temperature
140 0F
Standards
REACH Art 33; WEEE (2012/19/EU)
UNSPSC
39121529
Model
3RT20262BB40
Category
Business & Industrial
Power Rating
11.032 kW
Construction Standard
I.E.C. 400V AC
UL Cont. Amps
25A
Poles
3P
Hp 3-Phase 200V
5 Hp
Hp 3-Phase 230V
7.5 Hp
Hp 3-Phase 460V
15 Hp
Hp 3-Phase 575V
20 Hp
