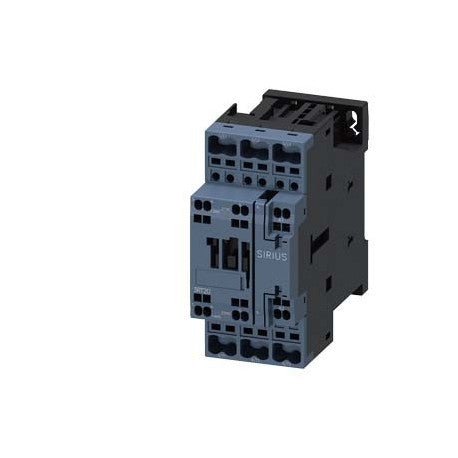

Siemens 3RT20262AP60 Contactor 25 A

Product Description

The SIEMENS 3RT20262AP60 is a power contactor with 3PST-NO (3 Form A) contact form. It has a rated current of 25A at 400Vac; AC-3 and a control coil voltage of 220Vac (50Hz) / 240Vac (60Hz). This contactor is suitable for Direct On Line (DOL) / FVNR (Full-Voltage Non-Rv.) applications.

• Auxiliary Contacts
• Chassis Mount, DIN Rail mounting
• Spring-type terminal connections

Product Highlights

The SIEMENS 3RT20262AP60 contactor is designed for power magnetic applications. It features spring-type terminal connections and is suitable for DIN rail or surface mounting.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT20262AP60
• Country of Origin: Germany

Technical Specifications

• Manufacturer: Siemens
• Reference: 3RT20262AP60
• Item Code: 3RT20262AP60
• Condition: New
• Category: Relays
• Contactors (Electromechanical): Contactors (Electromechanical)
• Switching Voltage: 690VAC - Max
• Features: Auxiliary Contacts
• Series: SIRIUS
• Termination Style: Screw Terminal
• Operating Temperature: -25 00b0C ~ 60 00b0C
• Part Status: Active
• Must Operate Voltage: 192 VAC
• Mounting Type: Chassis Mount, DIN Rail
• Operate Time: 40 ms
• Coil Voltage: 240VAC
• Release Time: 16 ms
• Contact Form: 3P
• Coil Power: 79VA
• Contact Rating (Current): 16 A
• Base Product Number: 3RT2026
• Main function: Contactor
• Product series / family name: SIRIUS 3RT2
• Sub-range name: 3RT2026
• Functions: Power magnetic contactor
• Type of network: 3-phase
• Rated current: 25A (400Vac; AC-3) 10A (230Vac; AC-15) 3A (400Vac; AC-15) 10A (24Vdc; DC-12) 2A (48Vdc; DC-13) 1A (110Vdc; DC-13)
• Rated active power (kW): 11kW (400Vac; AC-3)
• Rated impulse voltage (Uimp): 6 kV
• Rated insulation voltage (Ui): 690 V (UL/CSA) 600 V
• Connection type: Spring-type term. connections
• Poles: 3 Pole(s)
• Control Voltage (AC): 220Vac (50Hz) 240Vac (60Hz)
• Mounting mode: DIN rail Surface
• Normally Open (NO) auxliary contacts: 1 NO contacts
• Normally Closed (NC) auxiliary contacts: 1 NC contacts
• Degree of protection: IP20
• Mechanical durability (at no load): 10 000 000 operations
• Application type: Direct On Line (DOL) FVNR (Full-Voltage Non-Rv.)
• Model Number: N/3RT20262AP60
• Type: Contactor
• Place of Origin: Germany
