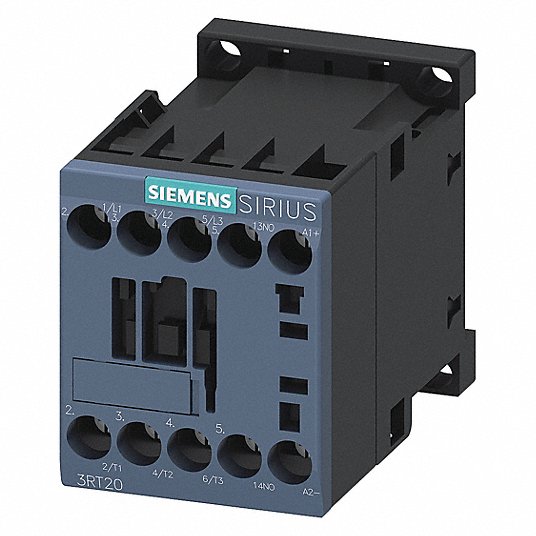

Siemens 3RT20161FB41 Contactor S00 9A 24Vdc 1NO Scrw

Product Description

The SIEMENS 3RT20161FB41 is a contactor with AC-3, 4KW/400V, and 1NO. It features a DC 24V with an integrated diode, 3-pole, and sz s00 screw terminal. This IEC power contactor is non-reversing with 3NO contacts and a 24V DC coil. It is designed for switching motors and includes auxiliary contacts.

• Auxiliary Contact: 1 NO
• Contact Current Rating: 9 A
• Control Voltage: 24 V

Product Highlights

The SIEMENS 3RT20161FB41 contactor is ideal for motor switching applications, offering reliable performance and easy installation with its screw terminals and DIN rail mounting.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT20161FB41
• Country of Origin: Germany

Technical Specifications

• UNSPSC Code: 39120000
• Auxiliary Contact: 1 NO
• Brand: SIEMENS
• Contact Current Rating: 9 A
• Control Voltage: 24 V
• Manufacturer Part Number: 3RT20161FB41
• Mounting Type: Chassis Mount, DIN Rail
• Number of Poles: 3
• Terminal Type: Screw Terminal
• Type: Non-Reversing Contactor
• UPC Code: 662643907919
• Category: Relays
• Switching Voltage: 690VAC - Max
• Features: Auxiliary Contacts
• Series: SIRIUS
• Operating Temperature: -25 C ~ 60 C
• Part Status: Active
• Must Operate Voltage: 19.2 VDC
• Operate Time: 100 ms
• Coil Voltage: 24VDC
• Release Time: 65 ms
• Contact Form: 3PST-NO (3 Form A)
• Coil Power: 4W
• Base Product Number: 3RT2016
• Full Load Current - Inductive: 9 A
• Full Load Current - Resistive: 22 A
• Maximum Voltage Rating: 690V AC
• Horsepower @ Single Phase - 120V AC: 1/3 hp
• Horsepower @ Single Phase - 240V AC: 1 hp
• Horsepower @ Three Phase - 208V AC: 2 hp
• Horsepower @ Three Phase - 240V AC: 3 hp
• Horsepower @ Three Phase - 480V AC: 5 hp
• Horsepower @ Three Phase - 600V AC: 7-1/2 hp
• Wire Termination Type: Screw
• Integrated Surge Suppression: Yes
• IP Rating: IP20
• NEMA Enclosure Rating: No
• Frame Size: S00
• Overall Height: 2.4 in
• Overall Width: 1.6 in
• Overall Depth: 2.8 in
• Mounting Postion: Vertical
• Mechanical Operating Durability: 30,000,000
• Minimum Operating Temperature: -13 F
• Maximum Operating Temperature: 140 F
• Construction Standard: I.E.C. 400V AC
• UL Cont. Amps: 9A
• Poles: 3P
• Hp 1-Phase 115V: 0.3 Hp
• Hp 1-Phase 230V: 1 Hp
• Hp 3-Phase 200V: 2 Hp
• Hp 3-Phase 230V: 3 Hp
• Hp 3-Phase 460V: 5 Hp
• Hp 3-Phase 575V: 7.5 Hp
