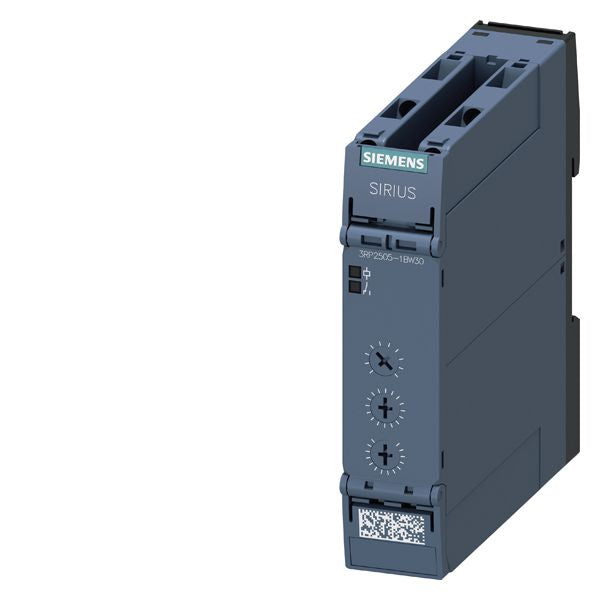

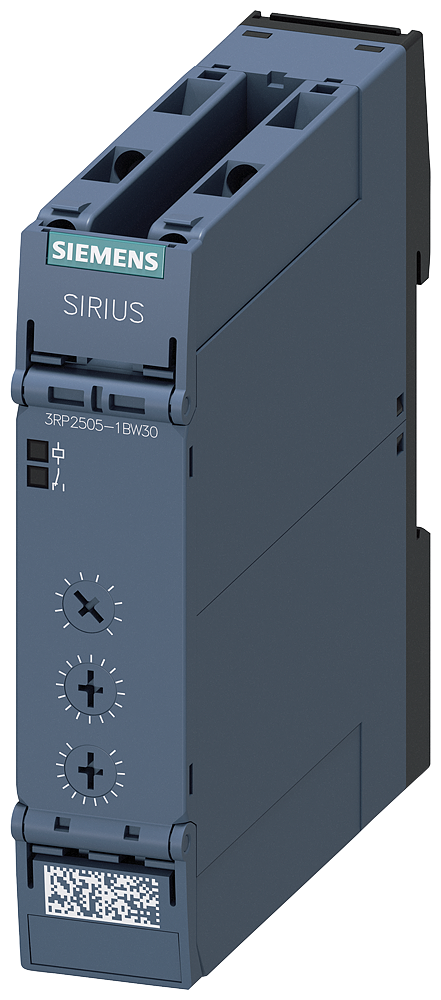

Siemens 3RP25051BW30 T-Rel, Multi-F, 2C

Product Description

The Siemens 3RP25051BW30 is a multi-function time relay with 2 CO contacts, offering 27 functions and 15 time setting ranges. It operates on AC/DC 12... 240V at AC 50/60HZ and features an LED indicator and screw terminals. This timing relay is suitable for various industrial applications requiring precise timing control with a range from 0.05 seconds to 100 hours.

• Multi-function with 27 selectable functions
• Equipped with 2 CO (changeover) contacts
• Wide voltage range: AC/DC 12... 240V

Product Highlights

Multi-function timing relay with wide voltage range and multiple time settings.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RP25051BW30
• Country of Origin: Germany

Technical Specifications

• Catalog #: 3RP25051BW30
• Brand: Siemens
• Manufacturer: Siemens
• Contact Configuration: 2CO
• Contact Voltage Rating: 12 to 240 Volt AC/DC
• Contact Current Rating: 10 Amps
• Timing Range: 0.05 Second to 100 Hour
• Timing Mode: ON Delay
• Terminal Type: Screw
• Mounting Type: Screw and Snap-On
• Approval: UL, CSA, CE, EAC, CCC
• RoHS Compliant: Y
• Enclosure Rating: IP20
• Part Number #: 3RP25051BW30
• Electrical Connections: Screw Terminal
• Time Setting: 0.05 s to 100 hr
• Operation Mode: Automatic
• Coil Voltage: 240 Volts
• Maximum Switching Voltage: 240 Volts
• Minimum Switching Voltage: 240 Volts (AC)
• Specification Met: CCC, CE, CSA, EAC, UL
• Connector Type: Screw
• Contact Material: Silver
• Contact Type: 2no 2nc
