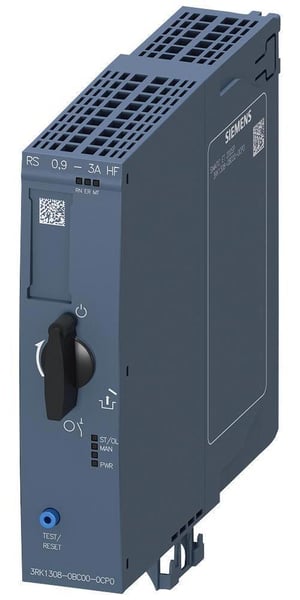

Siemens 3RK13080BC000CP0 Simatic High Feature Reversing Motor Starter 3 Poles

Product Description

The Siemens SIMATIC 3RK13080BC000CP0 high feature reversing motor starter has 3 poles and an IP20 enclosure. It is suitable for use in industrial automation and motion control applications. The starter operates within a voltage range of 48 to 500 VAC and a frequency of 50/60 Hz.

• 3 A at 400 VAC amperage rating
• 0.37 to 1.1 kW at 400 VAC 3-phase motor power
• Plug contact to base unit for main energy infeed/load side outgoing feeder/supply voltage line side

Product Highlights

This Siemens reversing motor starter features solid-state overload relay, plug contact connection, and an operating temperature range of -25 to 60 deg C.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RK13080BC000CP0
• Country of Origin: China

Technical Specifications

• Voltage Rating: 48 to 500 VAC
• Overload Relay: Solid-State
• Operating Temperature: -25 to 60 deg C
• Phase: 3
• Series: 3RK1
• Number Of Poles: 3
• Frequency Rating: 50/60 Hz
• Setting: 0.9 to 3 A
• Enclosure Type: IP20
• Operating Cycles: 30000000 Cycles
• Amperage Rating: 3 A
• Connection Type: Plug Contact
• Timing: 20 ms On, 35 to 50 ms Off
• Type: High Feature Reversing
• Motor Power: 0.37 to 1.1 kW
• Brand: SIEMENS
• Model: 3RK1308-0BC00-0CP0
• MPN: Does Not Apply
