Siemens 3RH22441BB40 Contactor Aux 3RH2 24V DC

Product Description

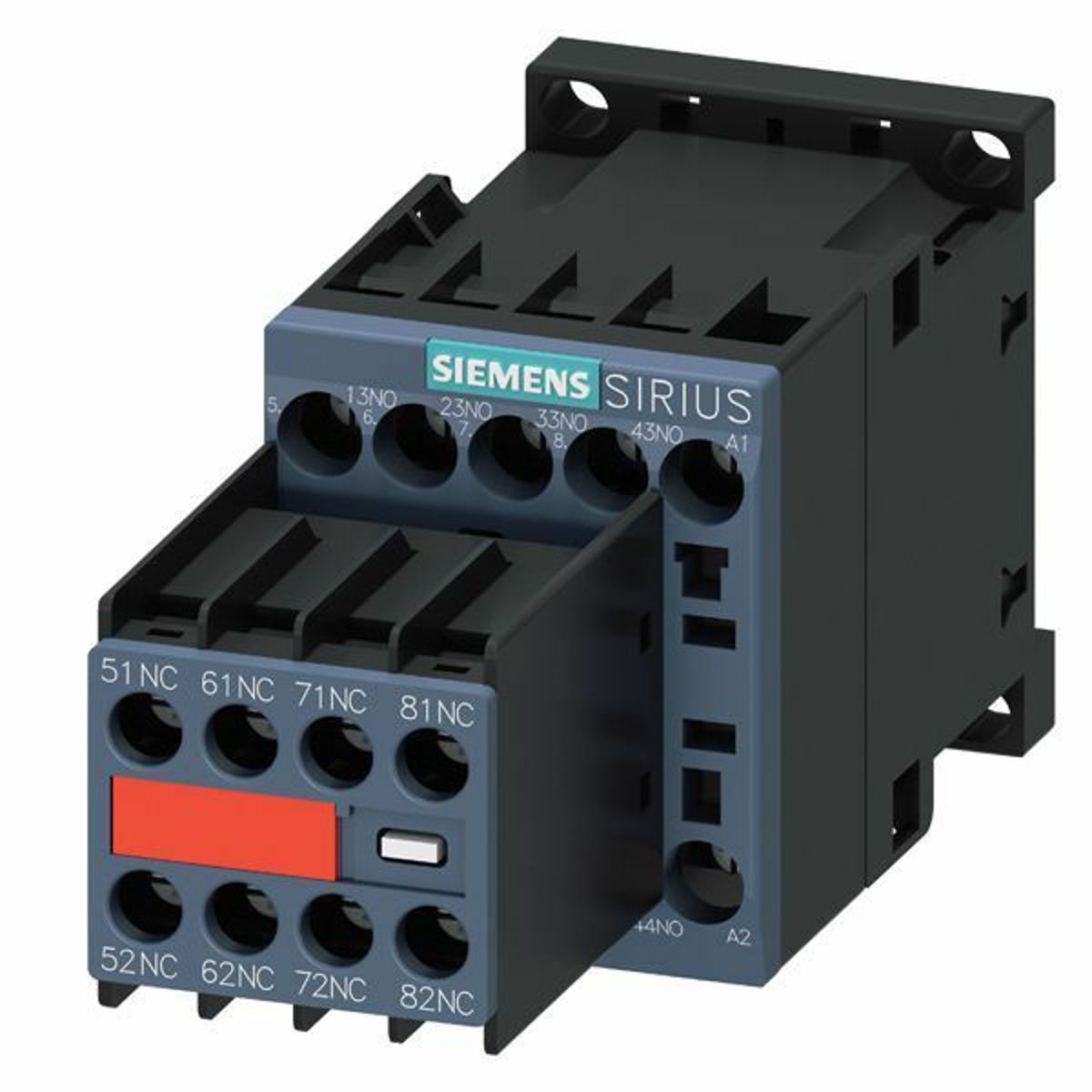

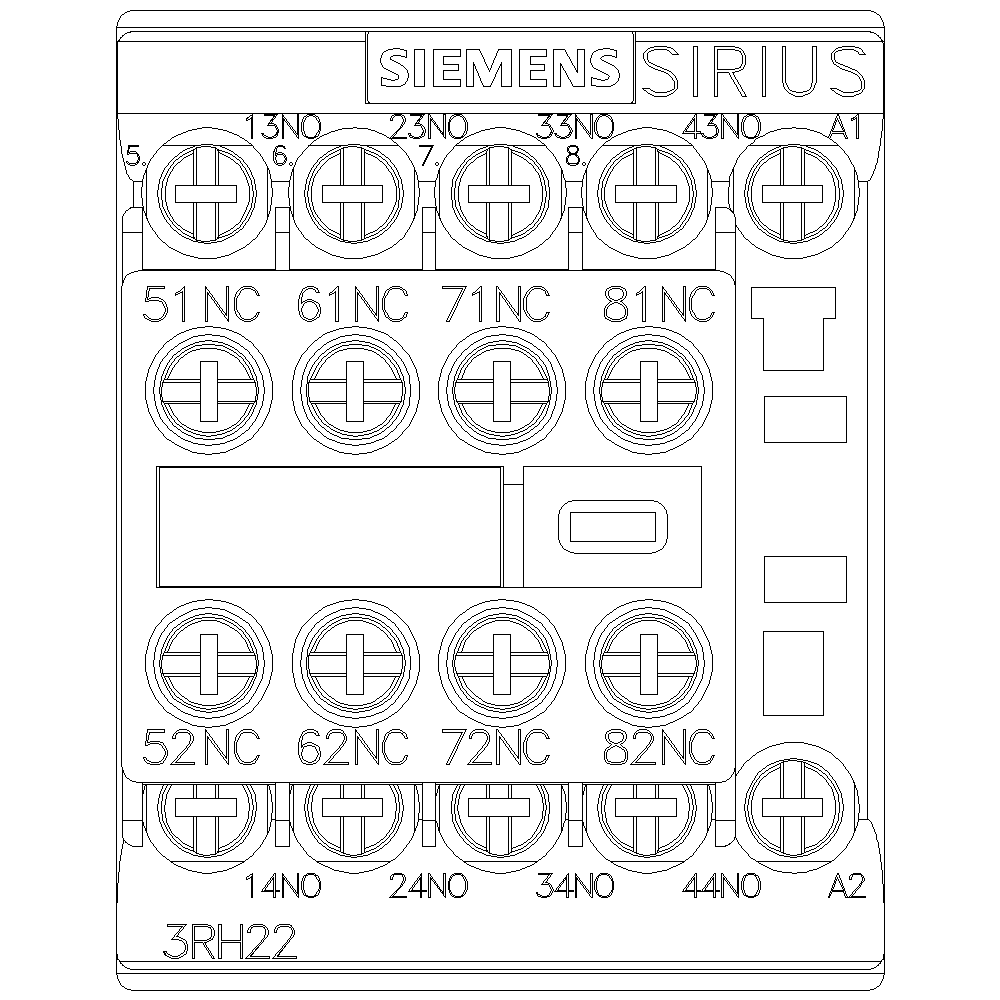

The Siemens 3RH22441BB40 Contactor Aux 3RH2 is a contactor relay with 4 normally open (NO) and 4 normally closed (NC) contacts, operating at 24 V DC. It features screw-type terminals for connection and is size S00. This device is designed for DIN rail mounting and has a captive auxiliary switch.

• Features 4 NO and 4 NC contacts
• Operates at 24V DC
• Designed for DIN rail mounting

Product Highlights

The Siemens 3RH22441BB40 is ideal for applications requiring reliable switching and easy installation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RH22441BB40
• Country of Origin: Germany

Technical Specifications

• Contact Rating: A600,Q600
• Connection Type: Screw-Type Terminals
• Operating Cycles: 10000000
• Width: 1.970 in
• Height: 4.73 Inch
• Length: 2.45 Inch
• Operating Temperature: 60 To -25 degrees C
• Catalog Number: 3RH22441BB40
• Manufacturer: Siemens
• Brand: Siemens
• Country of Origin: Germany
• Contact Configuration: 4 NO, 4 NC
• Sub Brand: Sirius
• Environmental Conditions: 95% Relative Humidity
• Hz [Specifications]: Not Applicable
• Item [Specifications]: IEC Control Relay
• Features [Specifications]: Permanently Mounted Auxiliary
• Mounting [Specifications]: Din Rail
• Standards [Specifications]: CCC, CE, CSA, UL
• Coil Volts [Specifications]: 24V DC
• Coil Rating [Specifications]: 4W Inrush, 4W Sealed
• Contact Form [Specifications]: 4NO/4NC
• Item - Relay [Specifications]: IEC Style Control Relay
• Response Time [Specifications]: 100 msec
• Contact Material [Specifications]: Silver Nickel
• Mounting - Relay [Specifications]: DIN Rail
• Body Depth - Relay [Specifications]: 4.57 in
• Body Width - Relay [Specifications]: 1.77 in
• Body Height - Relay [Specifications]: 2.26 in
• Contact Form - Relay [Specifications]: (4) SPST-NC, (4) SPST-NO
• Number of Pins - Relay [Specifications]: 18
• Overall Height - Relay [Specifications]: 2.26 in
• AC Contact Rating - Relay [Specifications]: 10A @ 230V
• DC Contact Rating - Relay [Specifications]: 10A @ 24V
• Power Consumption - Relay [Specifications]: 4.0 W
• Contact Amp Rating (Resistive) [Specifications]: 10A
• Control Voltage: 24 V
• Current Rating: 10 A
• Function: IEC Contactor
• Manufacturer Part Number: 3RH22441BB40
• Maximum Operating Temperature: 140 °F
• Minimum Operating Temperature: -13 °F
• Mounting Style: DIN Rail Mount
• Number of Poles: 8
• Power Rating: 0.004 kW W
• Primary Type: IEC Contactor
• Series: 3RH Series
• Size: S00 in
• Special Features: Auxiliary Contacts
• Standards: RoHS Compliant, AL : N / ECCN : EAR99
• Terminal Type: Screw
• Termination: screw
• Voltage Rating: 24 V
• Coil Voltage: 24 VDC
• Contact Form: 4NO-4NC 4 Form C
• Amperage Rating: 6 A
• Enclosure Type: IP20
• Temperature Rating: -25 to 60 deg C
• Mounting Type: Rail/Snap-On/Threaded
• Relay Style: IEC
• Relay Mounting Style: DIN-Rail & Surface
• Input Voltage: 24V DC
• Contact Rating (AC): 1 A @ 690V 2 A @ 500V 3 A @ 400V 6 A @ 240V
• Contact Rating (DC): 0.15 A @ 600V 0.3 A @ 440V 1 A @ 240V 10 A @ 24V 3 A @ 120V
• Electrical Connection Type: Screw
• Number of Terminals: 18
• Response Time: 10 to 15 msec (Arcing Time); 30 to 100 msec (Closing Delay); 7 to 13 msec (Opening Delay)
• IP Rating: IP20
• Relay Frame Size: Standard
• UNSPSC: 39122331
• Part Number #: 3RH22441BB40
