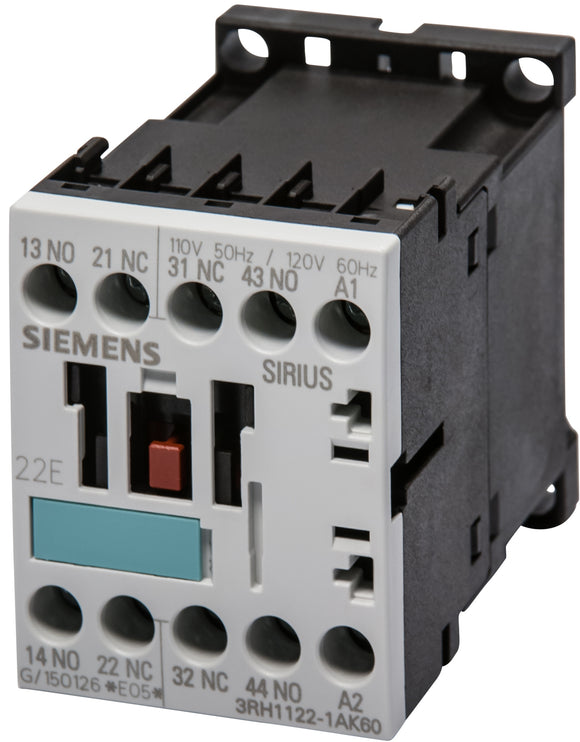

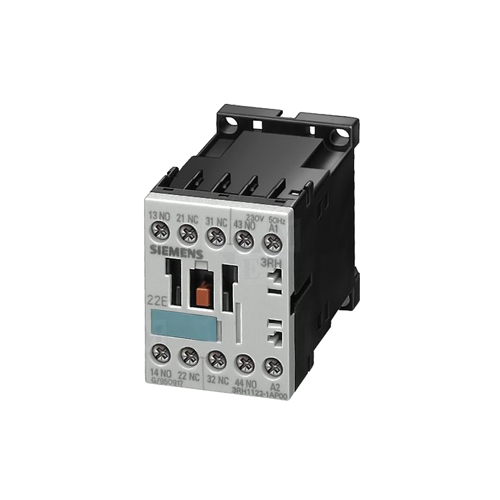

Siemens 3RH1122-1AK60 Contactor Relay 110/120 VAC

Product Description

The SIEMENS 3RH1122-1AK60 is a 4-pole IEC rated contactor relay with 4 fixed contacts and 2NO and 2NC contact configuration. It is designed for control and auxiliary circuits to control, provide signals, and interlock switching devices and switchgear panels. This contactor relay has screw terminals and is suitable for AC or DC operation.

• 4 pole, IEC rated
• Contact Voltage Rating 690 Volt AC, 220 Volt DC
• Terminal Type Screw

Product Highlights

The SIRIUS contactor relays have connection designations in compliance with the standard and use a connection system which is both time and cost saving.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RH1122-1AK60
• Country of Origin: DEU

Technical Specifications

• Coil Voltage: 110/120 VAC
• Contact Configuration: 2 NO, 2 NC
• Contact Current Rating: 10 A
• Control Voltage: 110 VAC
• Current Rating: 10 A
• Mounting Type: DIN Rail/Panel Mount
• Number of Poles: 4
• Primary Type: Contactor Relay
• Series: 3RH Series
• Terminal Type: Screw Terminal
• Termination: screw
• Frequency Rating: 50/60 Hz
• Enclosure Type: IP20
• Temperature Rating: -25 to 60 deg C
• Standard & Approvals: CCC Certified, CE Marked, CSA Certified, EAC Rated, EN 60947 Rated, IEC 60947, RoHS Compliant, UL Listed
• Brand: SIEMENS
• MPN: 3RH1122-1AK60
• Contact Rating: 6/1 A at 230/690 VAC, 10/1 A at 24/220 VDC
• Country Of Origin: DEU
