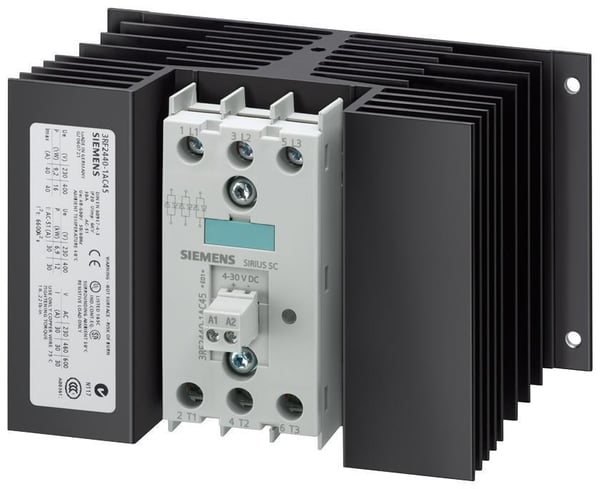

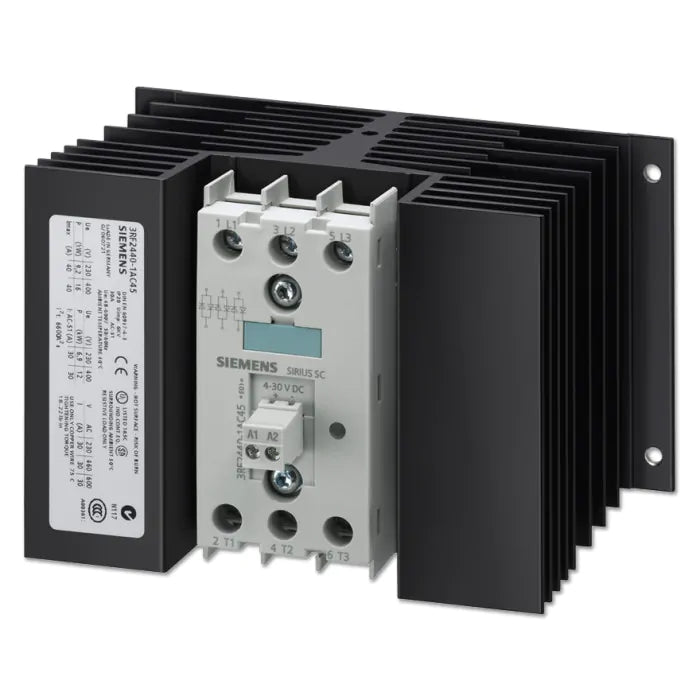

Siemens 3RF2440-1AC45 Contactor

Product Description

The Siemens 3RF2440-1AC45 is a 3-Phase Zero Point Switching Solid State Contactor. It operates from 48 to 600 VAC with a 4 to 30 VDC coil and a maximum load current of 40 A. This contactor features a 3NO contact configuration and is designed with 3 poles.

• Zero point switching
• Operating temperature of -25 to 60 deg C
• 3-Phase Zero Point Switching

Product Highlights

The Siemens 3RF2440-1AC45 is ideal for various applications requiring reliable and efficient switching. It is suitable for use in industrial automation, HVAC systems, and power distribution.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RF2440-1AC45
• Country of Origin: China

Technical Specifications

• Brand: Siemens
• MPN: 3RF2440-1AC45
• Condition: New
• Country of Origin: China
• Coil Voltage: 48 to 600 VAC, 4 to 30 VDC
• Contact Configuration: 3NO
• Operating Temperature: -25 to 60 deg C
• Maximum Load Current: 40 A
• Type: 3-Phase Zero Point Switching
• Mounting Type: DIN Rail
• Frequency Rating: 50/60 Hz
• Terminal Type: Screw
• Enclosure Type: IP20
• Number Of Poles: 3
• Series: 3RF
