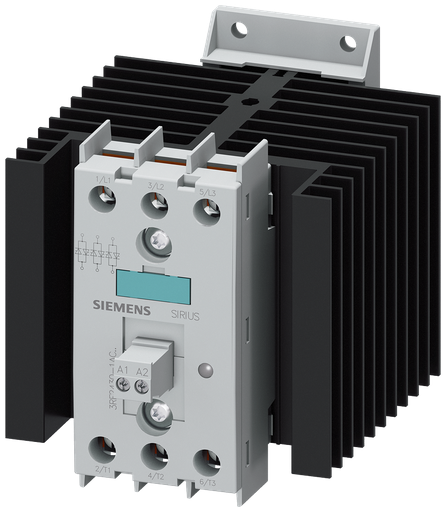

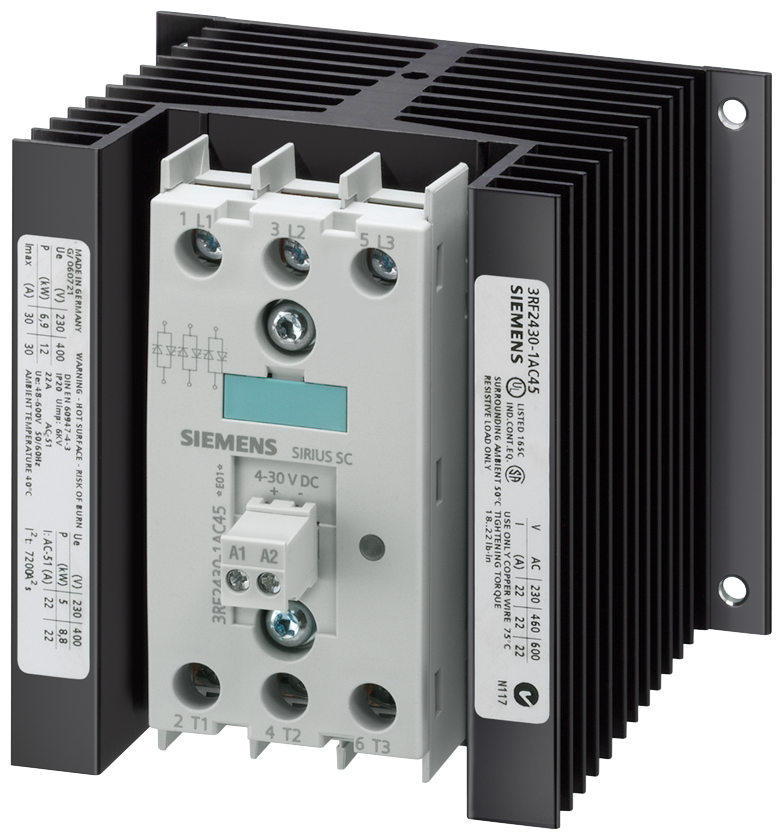

Siemens 3RF2430-1AC45 ss cont, 30A, 48-60

Product Description

The Siemens 3RF2430-1AC45 solid-state contactor is a 3-phase device with a current rating of 30A and a blocking voltage of 1200V. It operates within a 48-600V range and is controlled by 4-30 VDC. Designed for AC 51 applications, it features screw terminals for secure connections.

• 3-phase controlled
• Zero point switching
• Screw-type terminals

Product Highlights

The Siemens 3RF2430-1AC45 is a reliable solid-state contactor for efficient electrical control systems, supporting a wide voltage range.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RF2430-1AC45
• Country of Origin: Germany

Technical Specifications

• Amperage: 30 Amp
• Coil Voltage: 48 to 600 VAC, 4 to 30 VDC
• Connection Type: Thread
• Number of Phases: 3 Phase
• Voltage: 4-30 VDC
• Brand: SIEMENS
• Sub Brand: Solid-State Relays & Contactors
• Number Of Poles: 3
• Enclosure Type: IP20
• Frequency Rating: 50/60 Hz
• Contact Configuration: 3NO
• Maximum Load Current: 30 A
• Mounting Type: DIN Rail/Panel Mount
• Terminal Type: Threaded
• Operating Temperature: -25 to 60 deg C
• Model: 3RF2430-1AC45
• Type of relay: solid state
• Control voltage: 4...30V DC
• Max. operating current: 30A
• Switched voltage: 48...600V AC
• Relay variant: 3-phase
• Mounting: for DIN rail mounting
• Switching method: zero voltage switching
• Manufacturer series: 3RF24
• Relay features: 3-phase control
• Design: heatsink
• Leads: screw terminals
• Contact Current Rating: 30 A
• Contact Form: 3PST-NO
• Control Voltage: 30 VDC
• Current Rating: 30 A
• Function: Zero-Switching
• Manufacturer Part Number: 3RF2430-1AC45
• Relay Type: Solid State
• Series: 3RF Series
• Termination: Screw terminal
