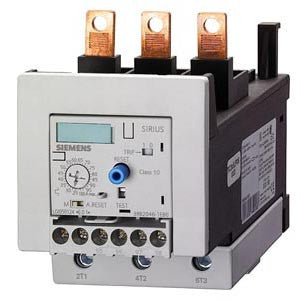

Siemens 3RB2046-2UB0 Electronic Overload Relay 12.5–50 AMP

Product Description

The Siemens 3RB2046-2UB0 is a class 20 solid state (electronic) overload relay for direct mounting on size S3 contactors (3RT1044, 3RT1045 and 3RT1046). It is adjustable from 12.5A to 50A and has phase loss protection. The manual or automatic reset feature helps handle nuisance tripping and prevents potential motor damage.

• Class 20 solid state (electronic) overload relay
• Direct mounting on size S3 contactors (3RT1044, 3RT1045 and 3RT1046)
• Adjustable from 12.5A to 50A

Product Highlights

Features include phase loss protection, manual or automatic reset, and screw terminals for easy installation. Can be DIN rail or base mounted.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RB2046-2UB0

Technical Specifications

• AMP range: 12.5 to 50 AMPS
• Protection: Class 20 (trips in 20 seconds or less)
• Phase Loss Protection: Yes
• Reset type: Manual or Automatic
• Mounts to: 3RT1044, 3RT1045, 3RT1046
• Brand: SIEMENS
• Manufacturer Part Number: 3RB20462UB0
• UPC Code: 040892624359
