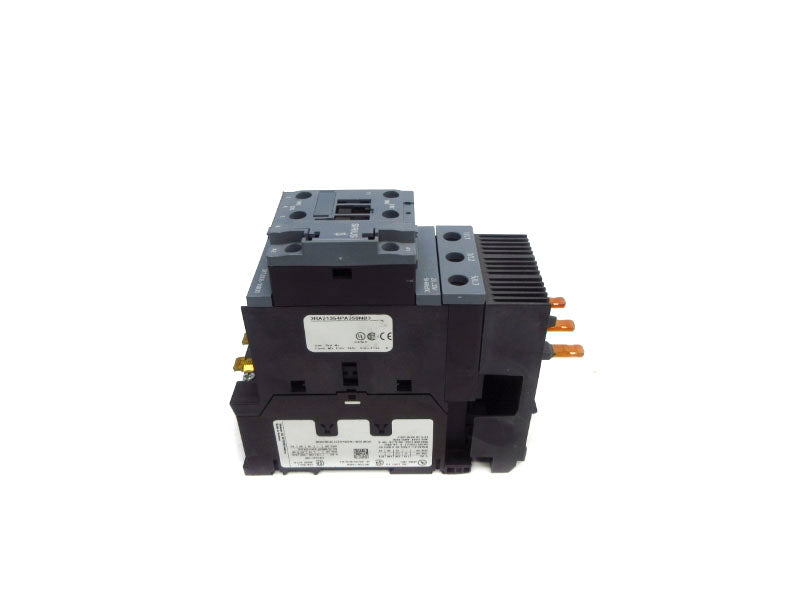

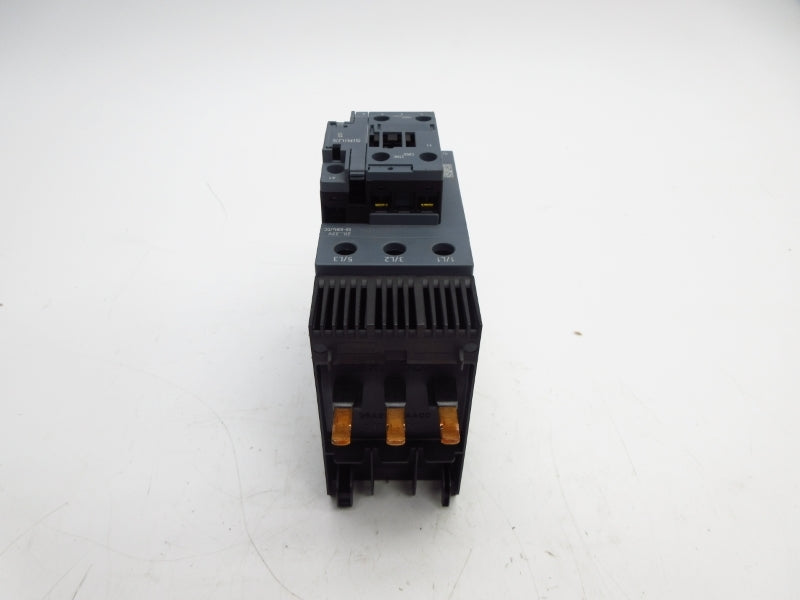

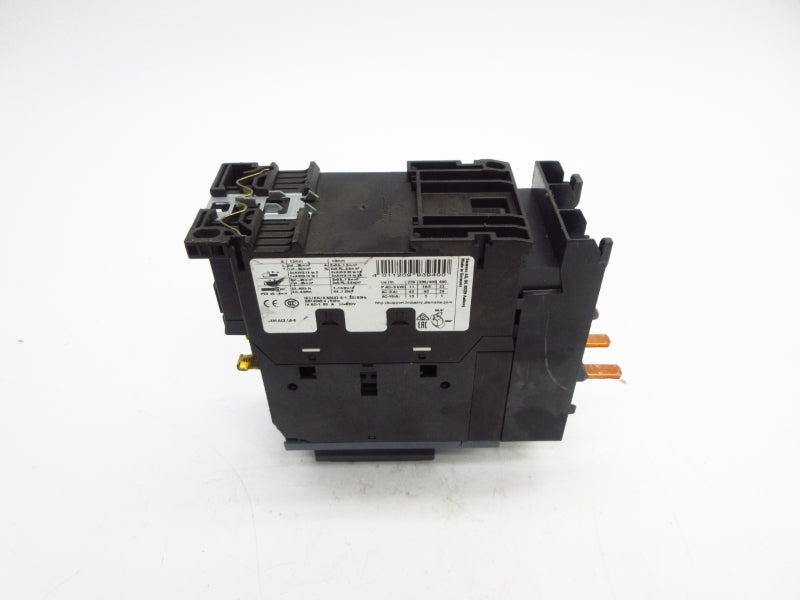

Siemens 3RA21354PA350NB3 IEC Combination Starter 10 hp

Product Description

The Siemens 3RA21354PA350NB3 IEC combination starter is a direct-on line, non-fused, non-reversing starter from the 3RA2 series. It operates at 690 V AC and 50/60 Hz, with a 10 hp motor and a 24 VAC/VDC coil. It features a 3-pole configuration, setting of 28 to 36 A, and a thermal/magnetic overload relay with a 35 A full load capacity.

• The motor starter protector and contactor are mechanically and electrically connected by means of the link module
• Auxiliary switches on the motor starter protector and the contactor can be easily fitted due to the modular system
• 10 hp at 200 VAC for 3-phase , 3 hp at 110/120 VAC for 1-phase

Product Highlights

This combination starter offers easy installation of auxiliary switches and efficient assembly with pre-wired components.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RA21354PA350NB3
• Country of Origin: United States of America (the)

Technical Specifications

• Brand: Siemens
• Part Number #: 3RA21354PA350NB3
• SKU #: 2334574
• Full Load Current: 35 A
• Setting: 28 to 36 A
• UNSPSC: 39121521
• UPC: 00804766173288
• Phase: 1/3
• Coil Voltage: 24 V AC/DC
• Enclosure Type: IP00/IP20
• Overload Relay: Thermal/Magnetic
• Voltage Rating: 690 V AC
• Connection Type: Screw
• Frequency Rating: 50/60 Hz
• Operating Temperature: -20 to 60 deg C
• Type: Direct-On Line Non-Fused Non-Reversing
• Series: 3RA2
• Motor Power: 10 hp
• Number of Poles: 3
• Operating Cycles: 10000000 Cycles
• GTIN: 00804766173288
• Country of Origin: United States of America (the)
• Code: 3RA21354PA350NB3
