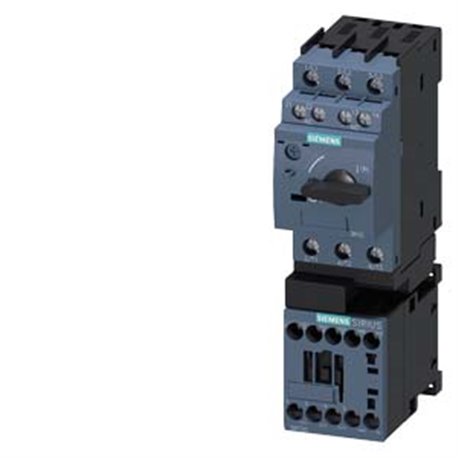

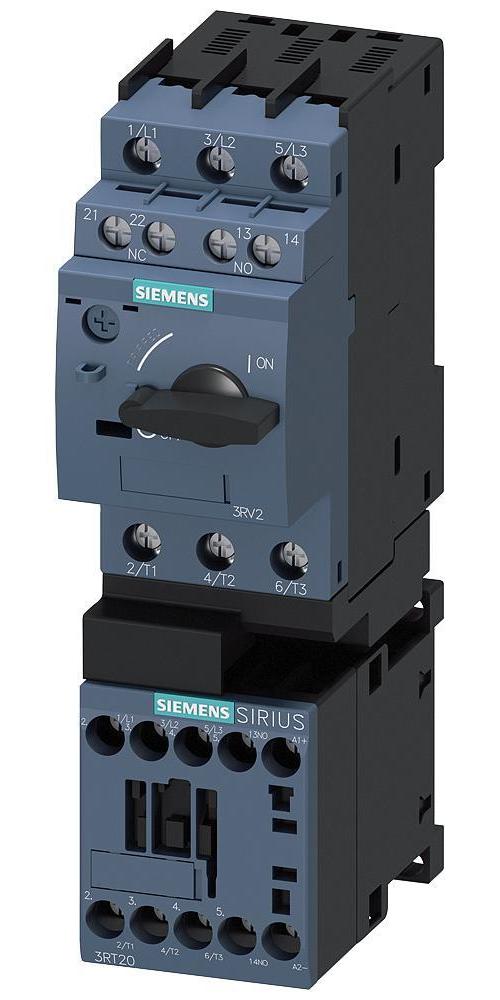

Siemens 3RA21151CA151BB4 Starter Dol S00 1.8-2.5A 24VDC Screw

Product Description

The SIEMENS 3RA21151CA151BB4 is a starter DOL S00 with a 1.8-2.5A range and a 24VDC screw. It is a motor starter with a 24VDC supply and a 1.9A, 690V load. It is designed for direct-on line non-fused non-reversing applications. This combination starter is part of the 3RA2 series.

• Mechanically and electrically connected by a link module.
• Auxiliary switches can be easily fitted due to the modular system.
• Suitable for 690 VAC voltage rating and 50/60 Hz frequency.

Product Highlights

The SIEMENS 3RA21151CA151BB4 starter is ideal for motor control applications requiring direct-on-line starting and reliable overload protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RA21151CA151BB4

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 3RA21151CA151BB4
• UPC Code: 887621861254
• Category: Motors, Actuators, Solenoids and Drivers
• Motor Driver Boards, Modules: Motor Driver Boards, Modules
• Number of Motors: 1
• Manufacturer: Siemens
• Voltage - Load: 690V
• Series: 3RA2
• Current - Output: 1.9A
• Packaging: Box
• Wattage - Load: 1120 W
• Part Status: Active
• Voltage - Supply: 24VDC
• Type: Direct-On Line Non-Fused Non-Reversing
• Mounting Type: DIN Rail
• Motor Type: AC Motor
• Operating Temperature: -20 to 60
• Control / Drive Type: Motor Starter
• Full Load Current: 1.9 A
• Phase: 1/3
• Coil Voltage: 24
• Enclosure Type: IP00/IP20
• Overload Relay: Thermal/Magnetic
• Voltage Rating: 690
• Connection Type: Screw
• Frequency Rating: 50/60
• Motor Power: 1/2 hp, 1 hp, 1-1/2 hp
