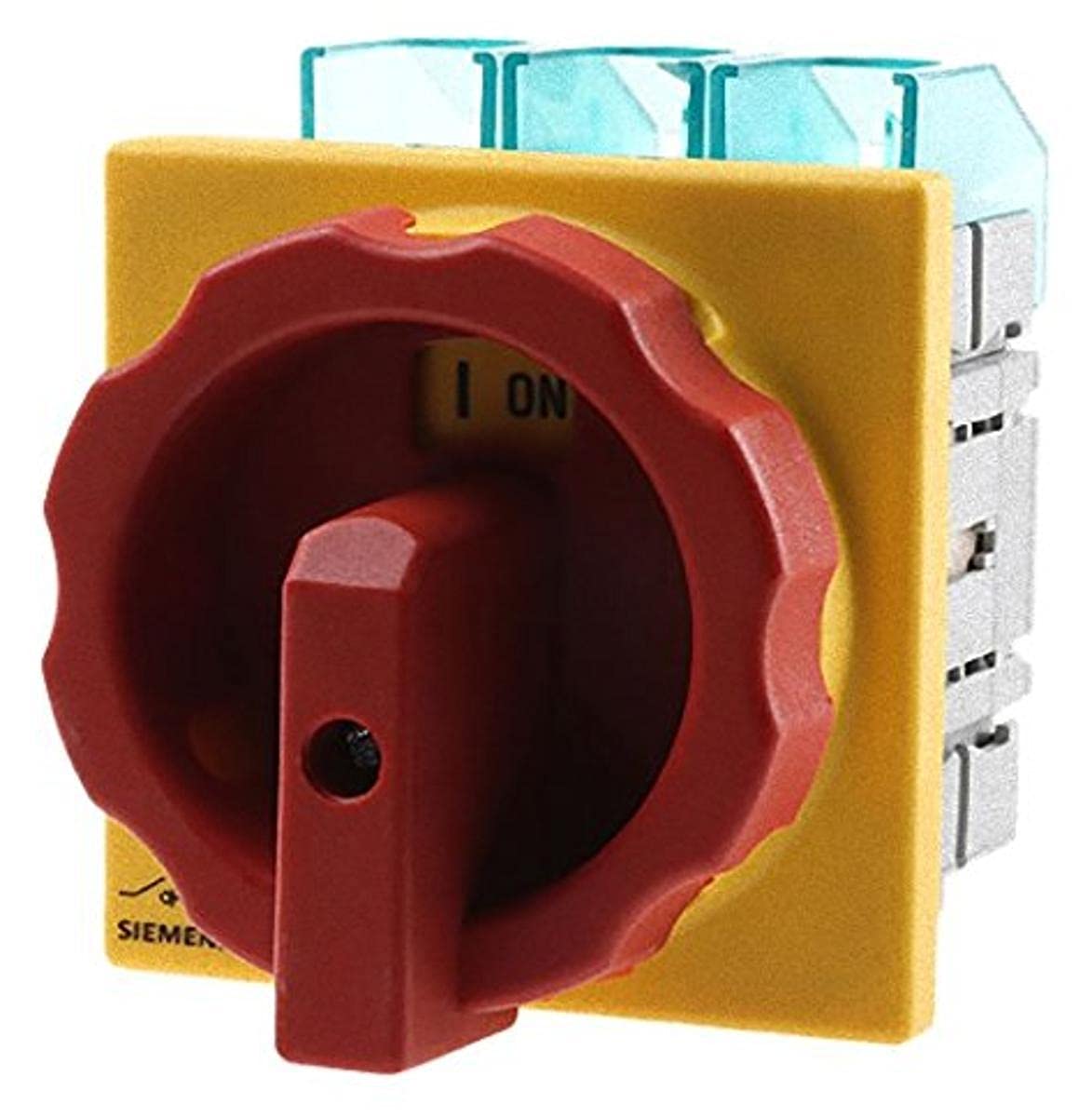

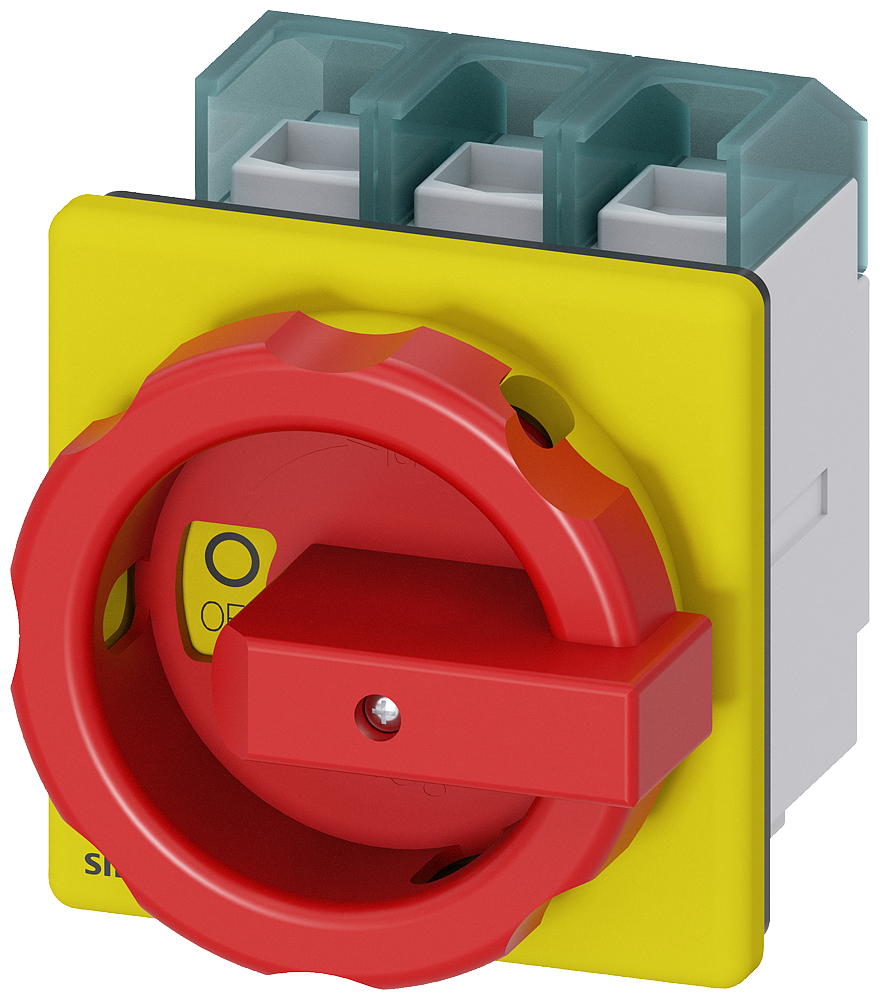

Siemens 3LD2704-0TK53 Disc Switch 3P Rotary 100A (5x4x5) 3LD2704-0TK53

Product Description

Siemens 3LD2704-0TK53 is a 3-pole disc disconnect switch with a rotary actuator rated 100 A for circuit isolation and main/emergency stop applications. It supports voltages up to 690 V (400-690 V range) and provides AC-23A contact performance equivalent to 37 kW at 400 V. The unit installs via a front-mounted four-hole door cutout, is intended for OEM disconnect use, and operates from -20F to 120F ambient.

• 3-pole rotary disconnect switch with 100 A current rating and rotary actuator
• Voltage rating up to 690 V (400-690 V range) with AC-23A contact rating: 37 kW at 400 V
• Front-mounted four-hole door installation for OEM main/emergency control disconnects; operating temperature -20F to 120F

Product Highlights

3-pole rotary disconnect, 100 A, 400-690 V range, AC-23A 37 kW at 400 V

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3LD2704-0TK53
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 3LD2704-0TK53
• Series: 3LD
• Product Type: Disconnect switch (disc switch) / Main/emergency stop switch
• Number of Poles: 3
• Actuator Type: Rotary
• Current Rating: 100 A
• Rated Voltage: 690 V
• Voltage Range: 400-690 V
• Frequency: 50/60 Hz
• Contact Rating (AC-23A): 37 kW at 400 V
• Applications: OEM disconnect / main or emergency control disconnect
• Mounting Type: Front four-hole (door) mounting
• Dimensions (L x W x H): 5.10 in x 4.00 in x 4.75 in
• Size: 5x4x5
• Weight: 1.165 lb
• Operating Temperature: -20F to 120F ambient
• Country of Origin: Germany
• Packaging: Box
• RoHS Status: RoHS non-compliant
• Part Status: Active
