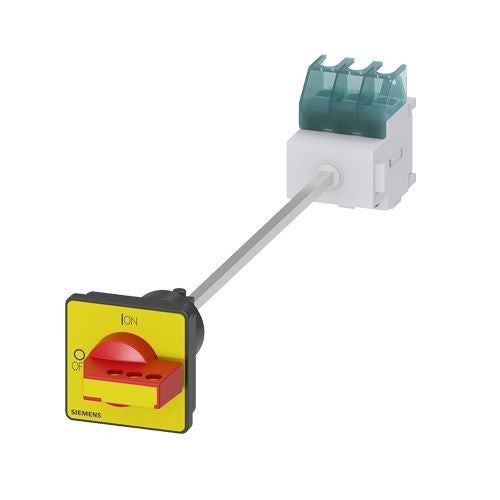

Siemens 3LD2217-0TK13 Switch 690V 32A

Product Description

The SIEMENS 3LD2217-0TK13 is a 690V 32A switch designed for various applications. This switch is suitable for branch circuits, control equipment panels, conveyance lines, and electrical wiring. It features a rotary style and is designed for emergency switching off with door coupling.

• Rated for 690V and 32A
• Designed for DIN Rail/Floor/2-Hole mounting
• Enclosure is IP65 rated

Product Highlights

The SIEMENS 3LD2217-0TK13 switch is a reliable component for emergency switching with a robust design.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3LD2217-0TK13
• Country of Origin: United States

Technical Specifications

• Category: Switches
• Disconnect Switch Components: Disconnect Switch Components
• Type: Switch Disconnector
• Manufacturer: Siemens
• Voltage Rating: 690 VAC
• Series: 3LD
• Current Rating: 32 Amp
• Packaging: Box
• Base Product Number: 3LD2217
• Part Status: Active
• UNSPSC: 39122217
• Approval: UL, CSA, CE, CCC
• Conductor Size: 14 to 8 AWG
• Number Of Poles: 3
• Mounting: DIN Rail/Floor/2-Hole
• Enclosure: IP65
• Conductor Material: Copper
• Fuse Type: Switch
• Material: ABS/Plastic, Cast Iron
• MPN: 3LD2217-0TK13
• Switch Style: Rotary
• Suitable For: Exterior, Interior
• Port Type: Disconnector Switch
• Current Type: AC
• Model: 3LD2217-0TK13
• Finish: Plastic
• Application: Branch Circuit, Control Equipment Panels, Conveyance Lines, Electrical Wiring
• Frequency Rating: 50/60 Hz
• Mounting Type: 4-Hole Built-In Fixed Floor
• Temperature Rating: -20 to 120 deg F
• Terminal Type: Box
• Actuator Type: Rotary Knob
• Standard & Approvals: UL Listed, CCC, CE, CSA Certified, RoHS, ARRA, Buy American Compliant
• Short Circuit Current Rating: 640 A
