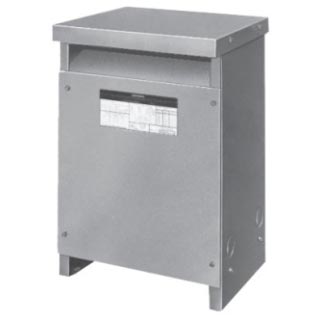

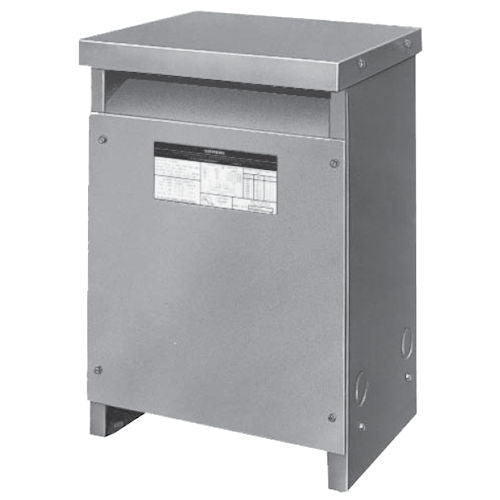

Siemens 3F3Y075D16 Distribution Dry Type Transformer, Ventilated, 75 KVA, 480V, 208Y/120V

Product Description

Siemens presents the MPN 3F3Y075D16 transformer for industrial applications. This dry-type distribution transformer has a power rating of seventy-five kVA, suitable for three-phase operations. The primary voltage is four hundred eighty volts, with a secondary voltage of two hundred eight Y and one hundred twenty volts. The installation can be floor-mounted or wall-mounted, making it versatile for various setups.

• Type: Ventilated Dry-Type Transformer
• Power Rating: 75 kVA
• Temperature Rise: 150 degrees Celsius

Product Highlights

Designed for energy efficiency, this transformer meets DOE 2016 energy standards. It features K-Factor 1, aluminum windings, and six taps for better voltage management.

Product Information

Standard Information

• Manufacturer: Siemens
• Enclosure Type: NEMA 3R

Technical Specifications

• Primary Voltage: 408 VAC
• Secondary Voltage: 208Y/120 VAC
• Frequency Rating: 60 Hz

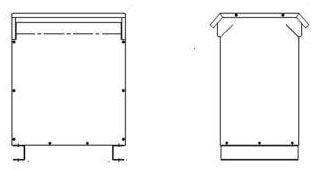

• Dimensions: 26 in L x 27 in W x 32 in H
• Phase: 3
• Mounting Type: Floor/Wall
• Number of Taps: 6
• Weight: 585 lb
• Country of Origin: ME
