Siemens 371-03002 HVAC Valves FLOWRITE Series 2.5 Cv

Product Description

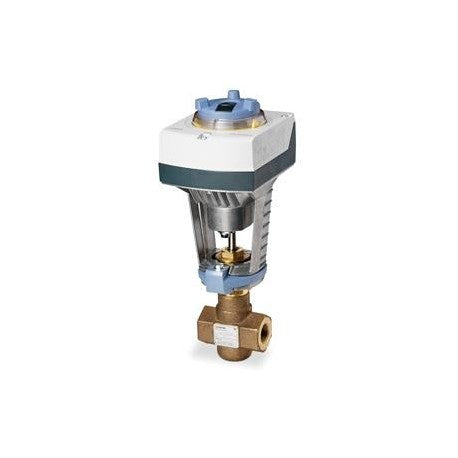

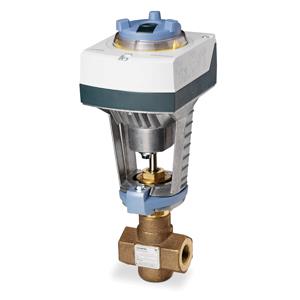

The Siemens 371-03002 HVAC Valve from the FLOWRITE Series is designed as a two-way normally open valve featuring stainless steel trim with female x female end connections. This valve incorporates a proportional control mechanism, operating on either zero to ten VDC or four to twenty mA input signals, and is equipped with a non-spring return, twenty-four VAC electronic actuator. The assembly adheres to ANSI Class 250 standards and offers a linear flow characteristic.

• Two-way normally open valve
• Stainless steel trim for durability
• Proportional control with 0 to 10 VDC or 4 to 20 mA input

Product Highlights

This valve is suitable for precise flow management in HVAC systems, optimizing performance for heating and cooling systems.

Product Information

Standard Information

• Manufacturer Part Number: 371-03002
• Product Series: FLOWRITE

Technical Specifications

• Capacity: 2.5 Cv
• Pipe Size: 0.5 inches
• Max Close-Off Pressure: 250 psi
• Body Pattern: Two-Way Normally Open
• Valve Style: Globe
• Medium Temperature Range: 20-250 °F
• Flow Characteristic: Linear
• Nominal Voltage: 24 VAC, 24 VDC
• Fail-Safe Mode: Non-Spring
• Control Input: Modulating
• Assembly: Yes
• Actuator Type: Electronic
• NEMA Rating: 1
• Power Supply: Electric
