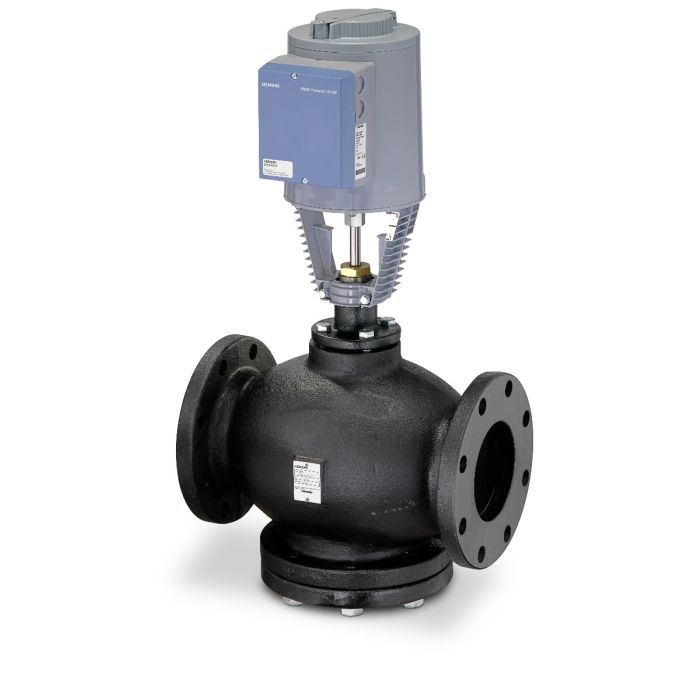

Siemens 294-06122 Globe Valve Assembly 4 in. Replacement MPN
Ships in 4 - 5 Weeks
LTL Delivery
This product weighs 204 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.
-
Secure Payments
-
Easy Returns
-
Expert Advice
-
Fast Shipping
Product Description
The Siemens 294-06122 is a globe valve assembly designed for efficient fluid control. This valve features a flanged connection and is built to handle high flow rates with a capacity of 160 Cv. It includes a stainless steel trim for durability and performance. The actuator is direct-coupled, providing precise control over the operation of the valve. It is rated for a spring return force of 1000 N and operates at 24 VAC with a power consumption of 28 VA. The valve measures four inches and has a stroke length of one and a half inches. It is configured as normally open and supports modulating control with input signals of 0 to 10 VDC or 4 to 20 mA.
- Flanged connection for easy installation
- Compatible with saturated steam, water, and glycol solutions
- NEMA 1 housing for internal applications
Product Highlights
This globe valve assembly is ideal for HVAC control applications, enabling precise regulation of fluid flow within various systems.
Product Information
Standard Information
- Brand: Siemens
- Part Number: 294-06122
- Min Order Quantity: 1
Technical Specifications
- Service: Saturated steam, water, glycol solutions to 50%
- Power Consumption: 28 VA
- Close-Off Pressure: 65 psi
- Flow Characteristic: Linear
- Operating Conditions: 5 F to 130 F (-25 C to 150 C)
- Features: ANSI Class 250
-
