Siemens 291-03114 Globe Valve Assembly, 2 Way, 1-1/4 in.

Product Description

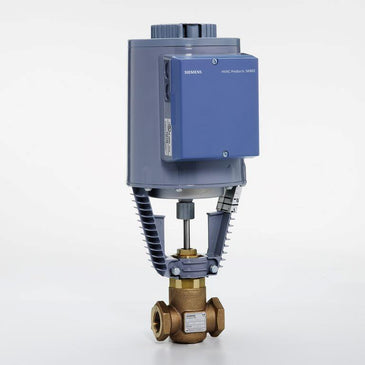

The Siemens Globe Valve Assembly, with part number 291-03114, is a two-way valve designed for various HVAC applications. This valve features a one and one-fourth inch size with a flow coefficient of 16 Cv, making it suitable for modulating control. The actuator operates on twenty-four volts alternating current and has a power consumption of seventeen volt-amperes.

• ANSI Class 250
• Spring return actuator with a stroke length of three-quarters of an inch
• Operates under saturated steam, water, and glycol solutions

Product Highlights

This valve assembly is ideal for use in HVAC control systems, particularly in applications requiring precise flow regulation.

Product Information

Standard Information

• Part Number: 291-03114
• Brand: Siemens

Technical Specifications

• Housing: NEMA 1
• Service: Saturated Steam, Water, Glycol Solutions To 50%
• Power Consumption: 17 VA
• Close-Off Pressure: 250 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 5 F To 130 F (-25 C To 150 C)
