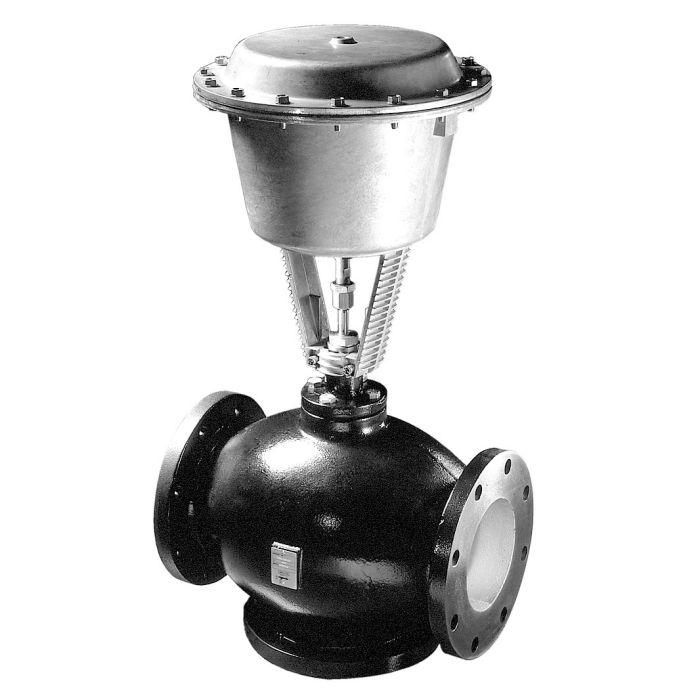

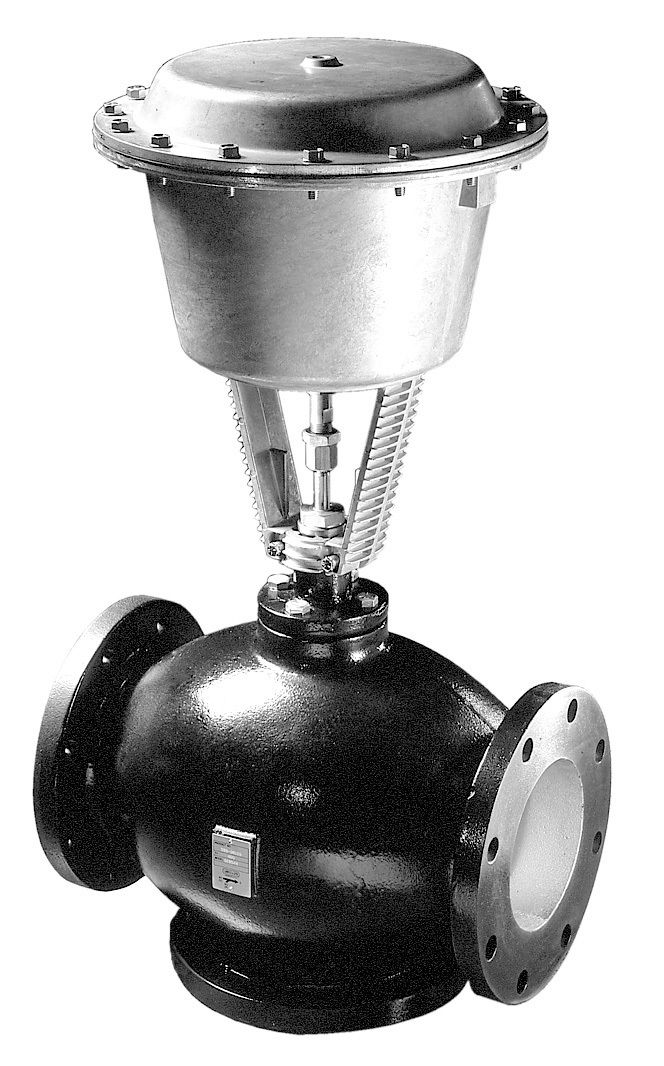

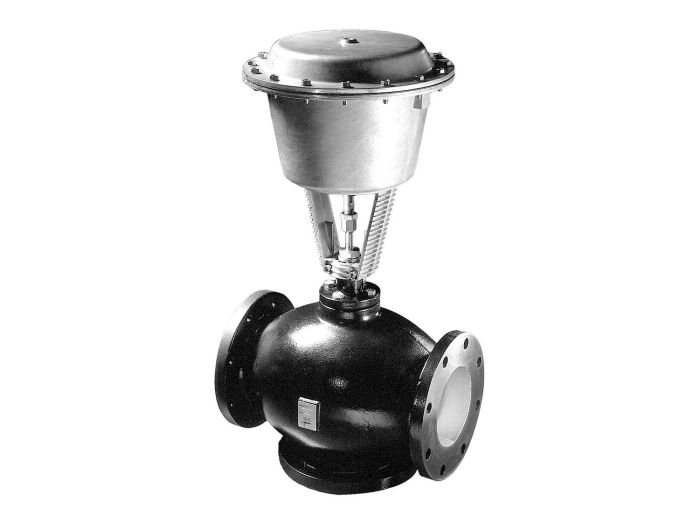

Siemens 287-05972 Globe Valve Assembly 4 in.

Product Description

The SIEMENS 287-05972 globe valve assembly is a 2-way, 4-inch valve with a 160 Cv. It features stainless steel trim and flanged connections. The assembly includes a pneumatic valve actuator, a 12-inch stroke, and a factory-mounted positioner. It is designed for use with saturated steam, water, and glycol solutions up to 50%.

• ANSI Class 125
• Pneumatic valve actuator with 12-inch stroke
• Suitable for saturated steam, water, and glycol solutions

Product Highlights

This Siemens globe valve assembly is ideal for HVAC applications requiring precise flow control. It features a normally closed fail-safe position and equal percentage flow characteristic.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 287-05972
• Country of Origin: US

Technical Specifications

• Service: Saturated Steam, Water, Glycol Solutions To 50%
• Close-Off Pressure: 46 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 20 F To 250 F (-7 C To 120 C)
• CV: 160
• Trim: Stainless Steel
• Actuator: 599-01000+599-00423
• Fail-Safe: Spring Return
• Pipe Size: 4 in
• Connection: Flanged
• Valve Type: 2-Way
• Power Supply: Pneumatic
• Fail Safe Position: Normally Closed
• Valve Size: 4
• Valve Pattern: 2-Way
• Valve Cv/GPM: 160
• Body Rating: 125
• Rated Close-off: 46
• Max Temp: 250
• Actuator Type: Spring Return
• Control Signal Type: 10-15psi
• Capacity: 160 Cv
• Connection Type: Flanged
• Max Close-Off Pressure: 46 psi
• Body Pattern: Two-Way
• Valve Style: Globe
• Medium Temperature Range: 20-250 °F
• Fail-Safe Mode: Spring Normally Closed
• Comments: ANSI Class 125, Positioner
• Manufacturer Part Number: 287-05972
• Manufacturer: Siemens Building Technologies
• Product Series: FLOWRITE
• Family Series: Siemens Building Technologies HVAC Valves, FLOWRITE Series
• Description: 4in.N.C, 125, SS=pct., OR, MM+59901000P
