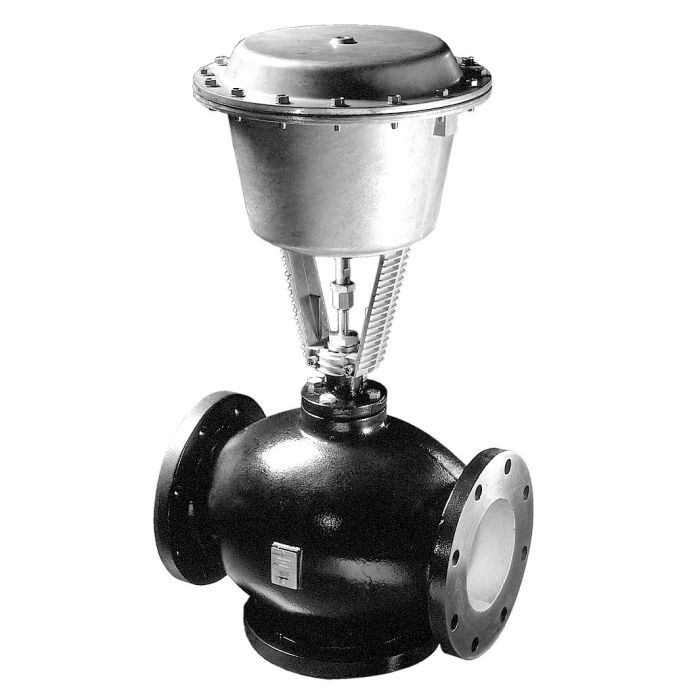

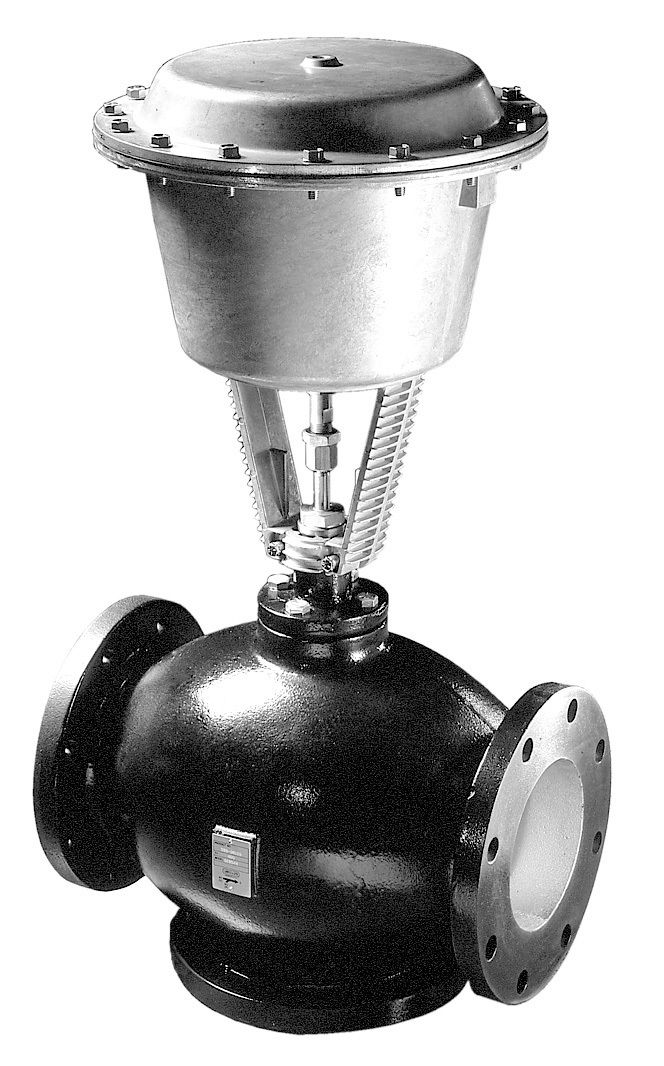

Siemens 285-05971 Globe Valve Assembly, 2 Way, 3 in.

Product Description

The Siemens 285-05971 is a globe valve assembly designed for pneumatic applications. This valve is two-way and has a three-inch pipe size. It incorporates a stainless steel trim for durability and features a pneumatic valve actuator. The valve connects via flanges and operates within a close-off pressure limit of seventy-four psi.

• Flanged connection for reliable attachment.
• Equipped with a factory-mounted positioner.
• Operates effectively in temperatures ranging from twenty degrees Fahrenheit to two hundred fifty degrees Fahrenheit.

Product Highlights

This valve is ideal for controlling flow in steam, water, and glycol solutions up to fifty percent concentration.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 285-05971

Technical Specifications

• CV: 100
• Trim: Stainless Steel
• Actuator: 599-01010 + 599-00423
• Assembly: Assembly
• Fail-Safe: Spring Return
• Connection: Flanged
• Valve Type: 2-Way
• NEMA Rating: NEMA 1
• Power Supply: Pneumatic
• Control Signal: Pneumatic
• Close-Off Pressure: 74 psi
• Fail Safe Position: Normally Closed
• Operating Conditions: 20 F to 250 F (-7 C to 120 C)
