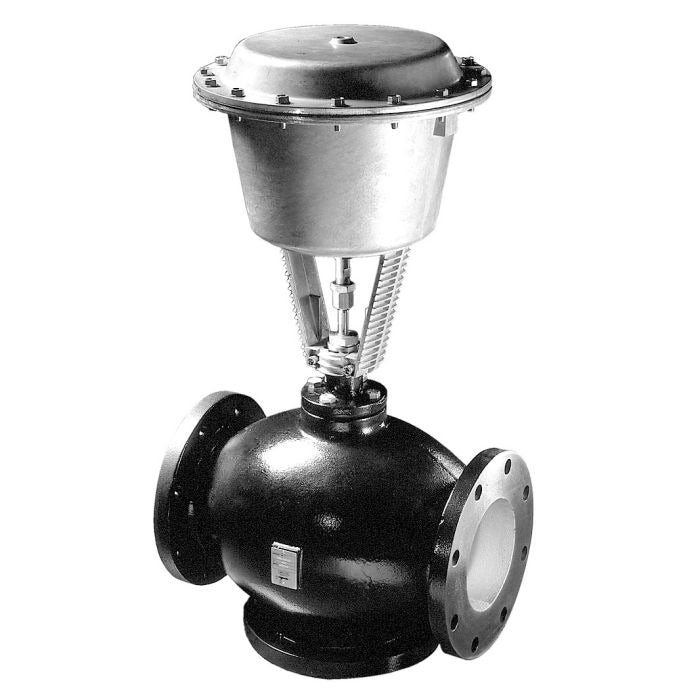

Siemens 285-05921 Globe Valve Assembly Pneumatic 3 In 599-01010

Product Description

Siemens 285-05921 is a 3-inch, two-way globe valve assembly with a pneumatic actuator and factory-mounted positioner. The assembly provides 100 Cv flow capacity with stainless steel trim, flanged end connections, ANSI Class 250 rating, and equal percentage flow characteristic. The actuator offers a 3/4 inch stroke, approximately 12 inch actuator length, 3 to 8 psi control range, and 1/4 inch NPT barbed air connection. Service includes saturated steam, water, and glycol solutions to 50%.

• Two-way, normally open globe valve; Cv 100; ANSI Class 250; close-off pressure 63 psi
• Pneumatic actuator (actuator reference 599-01010 + 599-00423) with 3/4 in stroke, 12 in actuator length, 3 to 8 psi control range and 1/4 in NPT air connection; factory-mounted positioner
• Stainless steel trim, flanged end connections, equal percentage flow characteristic, NEMA 1 rating; operating range 20 F to 250 F (-7 C to 120 C)

Product Highlights

3 in two-way globe valve assembly with pneumatic actuator and factory-mounted positioner, 100 Cv, ANSI Class 250, stainless steel trim.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 285-05921
