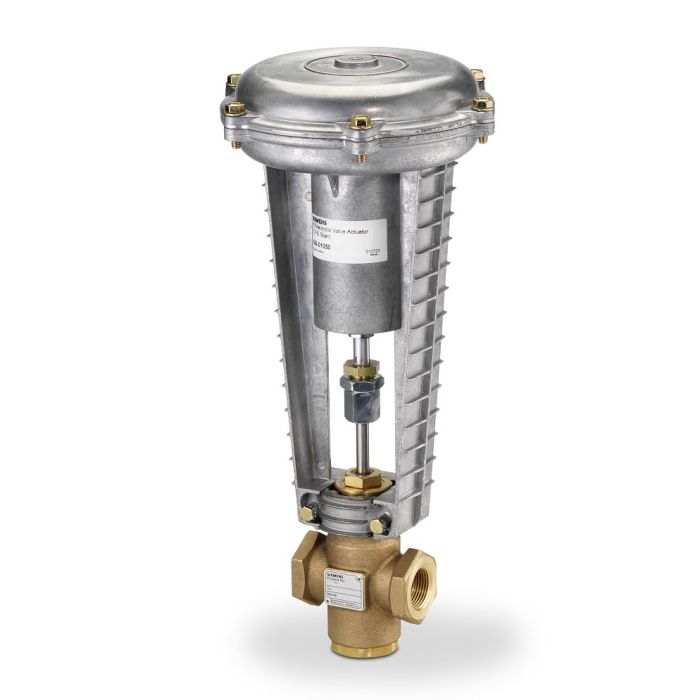

Siemens 284-03059 Globe Valve Assembly, 2 Way, 1 in.

Product Description

The Siemens globe valve assembly, MPN 284-03059, is a durable two-way valve designed for effective control in pneumatic applications. Its stainless steel trim enhances the lifespan and resistance to corrosion. The assembly is suitable for various operating conditions, making it ideal for systems handling saturated steam, water, and glycol solutions up to fifty percent concentration.

• Constructed for NPT connections.
• Features 10 Cv capacity with a normally open configuration.
• Includes a factory-mounted positioner for precise control.

Product Highlights

The valve supports a maximum close-off pressure of one hundred fifty psi, ensuring reliable performance.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 284-03059
• Minimum Order Quantity: 1
• Availability: Out of Stock

Technical Specifications

• Service: Saturated Steam, Water, Glycol Solutions To 50%
• Mounting Type: NEMA 1
• Close-Off Pressure: 150 psi
• Flow Characteristic: Linear
• Operating Conditions: 20 F To 250 F (-7 C To 120 C)
• Stroke Length: 3/4 in.
• Air Connection: 1/8 in. NPT
• Span: 5 psi
