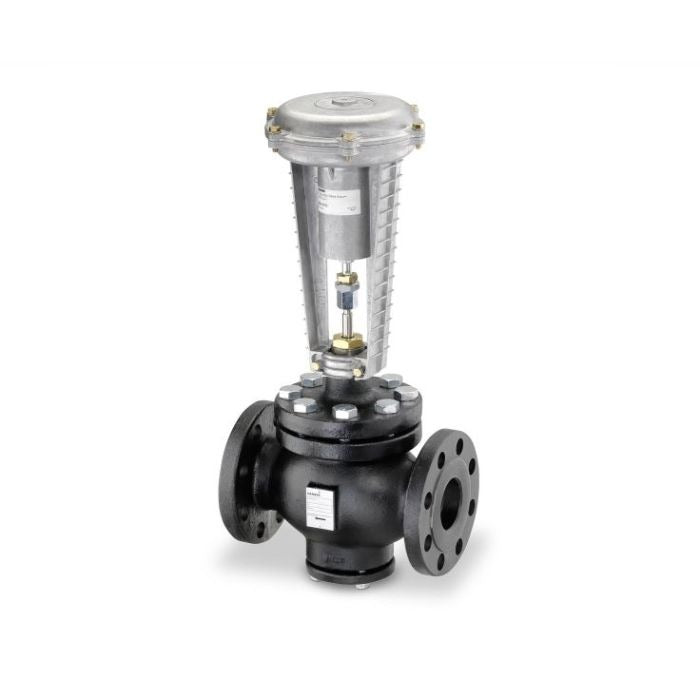

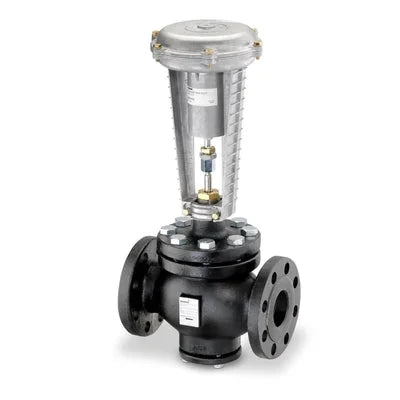

Siemens 283-05921 Globe Valve Assembly Pneumatic Actuator 3 in.

Product Description

Siemens 283-05921 is a 2-way, normally open globe valve assembly with a 3-inch port and 100 Cv flow coefficient, equipped with an 8-inch pneumatic actuator and factory-mounted positioner. The unit features stainless steel trim, flanged end connections, a 3/4-inch stroke, 5 psi positioner span and 1/8-inch NPT air connection. It is ANSI Class 250 with equal percentage flow characteristic for saturated steam, water, and glycol solutions to 50%.

• 3 in. flanged 2-way globe valve, 100 Cv, stainless steel trim, ANSI Class 250
• 8 in. pneumatic actuator with factory-mounted positioner, 3/4 in. stroke, 5 psi span, 1/8 in. NPT air connection
• Normally open configuration, equal percentage flow, close-off pressure 20 psi; service for saturated steam, water, and glycol up to 50%

Product Highlights

2-way normally open, 3 in. globe valve assembly with 8 in. pneumatic actuator and factory-mounted positioner; 100 Cv, ANSI Class 250.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 283-05921
• Country of Origin: United States of America
